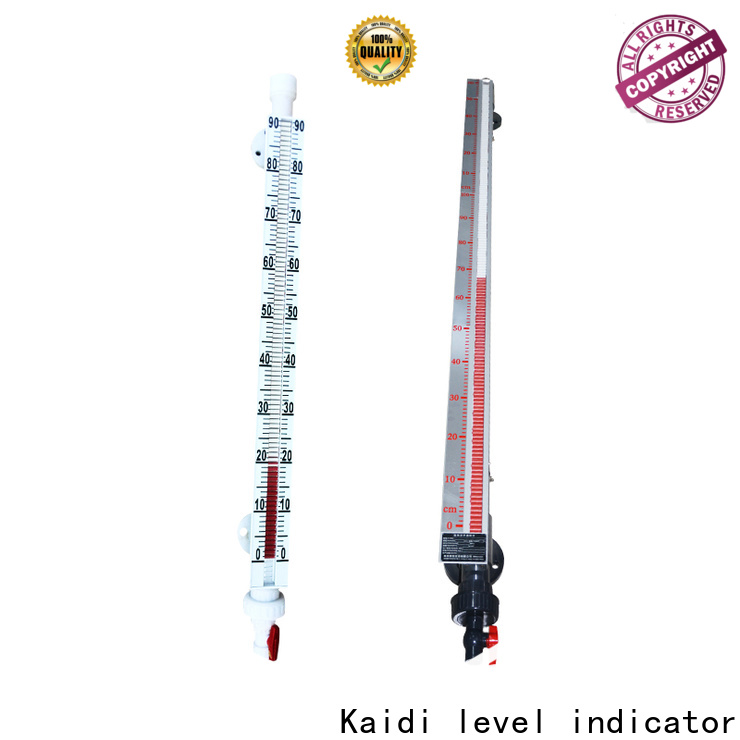

wholesale magnetic level indicator manufacturers for work

Specifications：
Medium Density	≥ 0.5Kg / L
Medium pressure	≤ 5.0Mpa
Medium temperature	-40 ~ 130 °C / 120 °C
Measuring range	300-6000mm
Accuracy	± 8mm
Measuring tube material	PP/PVDF/UPVC
Float material	PP/PVDF/UPVC
Connection	Flange connection (Customizable)
Top Connection	Dome + race header (Customizable)
Limit switch	Customizable
Whether the remote	Customizable
Whether the explosion	Customizable

Measurement Principle

A change of level in the process tank corresponds to a similar change within the KDMLI chamber. In response to the level movement, the KDMLI float moves accordingly, actuating the flags or shuttle for visual indication.

Features

*Numerous chamber styles (or configurations) for each design. Custom designs available.

*Complete range of level switches and level transmitters, including Eclipse Guided Wave Radar

*Fabricated, non-magnetic chamber assembly produced in a wide range of metal and plastic materials

*ANSI and EN 1092 process connections available

*Precision manufactured float with internal magnets and magnetic flux ring

*Flag or shuttle type indicator with stainless steel scale to measure height, volume, or percentage of level

*Standard float stop springs at top and bottom of chamber

APPLICATIONS

*Exceptional code qualified welding

*Feed water heaters , Industrial boilers

*Oil/water separators

*Flash drums, Surge tanks

*Gas chillers

*Deaerators

*Blowdown flash tanks

*Hot wells

*Vacuum tower bottoms

*Alkylation units

*Boiler drums

*Propane vessels, Storage tanks

e******k

Kaidi Sensors magnetic level indicator must comply with Electromagnetic Compatibility (EMC) standards. It has been totally tested, minimizing the risk of interference to the radio spectrum.

k******q

A series of tests for Kaidi Sensors magnetic level indicator have been carried out. It has strictly tested in terms of the performance of the circuit board, plugs, voltage, housing, etc.

g******e

Kaidi Sensors magnetic level indicator is designed by mechanical drawing. Its structure, shape, dimension, operating principles, and other manufacturing requirements can be all achieved by the precise and high efficient mechanical drawing.

m******z

The production process of Kaidi Sensors magnetic level indicator mainly includes three parts. These parts, namely, sizing processing, glaze processing, and quality inspection, are all conducted under strict control and inspection.

t******i

Kaidi Sensors magnetic level indicator has to go through diverse tests. These tests include fatigue resistance testing, dimensional stability testing, chemical resistance testing, and mechanical testing.

e******t

The company conducts standardized production in strict accordance with national standards. On the premise of strictly controlling product quality and meeting user needs, it saves production costs, improves economic benefits, and ensures that the magnetic level indicator produced are all high-quality and low-cost cost-effective products.
