wholesale level transmitter price manufacturers for work

Company Advantages
1. KAIDI is manufactured by utilizing technologies. These technologies include filtration, biological and chemical processes, deionization, ion exchange, reverse osmosis, evaporation, etc. There is little variation between its measuring values
2. With many good characteristics, the product has achieved wide market application. With a simple structure, it is perfectly good for demanding industrial applications
3. The product which has passed through many international certifications is highly dependable.This product has a wide range of operating temperatures
4. The application of quality surveillance system effectively guarantees the quality of the product. This product has the advantage of high accuracy

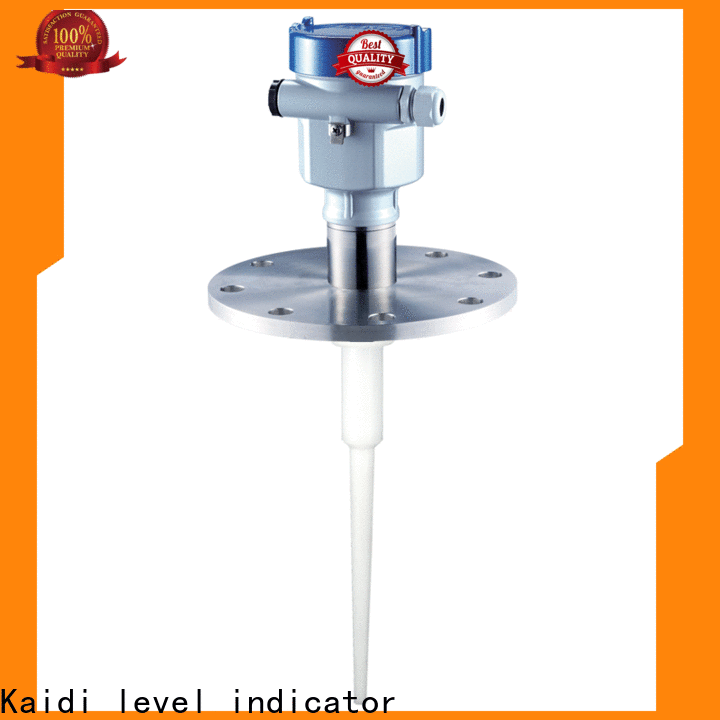

Special 　　 sign: 　All PTFE antenna, strong corrosion resistance, no sanitary corners.

Should be used: 　 Suitable for highly corrosive environment and sanitary environment, simple process liquid measurement.

Maximum range: 　30m

Measurement accuracy: 　±10mm

Process connection: 　PTFE flange flange

Antenna material: 　PTFE

Process temperature: 　-40…150°C

Process pressure: 　-1.0…16bar

Frequency range: 　6GHz

Signal output: 　Two-wire system/four-wire system 4…20mA/HART



Detailed introduction:

GDRD52

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Exia IIC T6)

C Intrinsically safe type + marine license (Exia IIC T6)

G Intrinsically safe type + flameproof type (Exd [ia]ia IIC T6)

Antenna type/material/process temperature

B Plastic rod/PTFE/-40～+150℃

Container takeover length

A 50mm

B 100mm

C 150mm

D 200mm

E 250mm

F 300mm

X Special customization

Process connection

FC PTFE flange flange DN50 PN1.6 stainless steel 316L (GB/T9119-2000)

FD PTFE flange flange DN80 PN1.6 stainless steel 316L (GB/T9119-2000)

FE PTFE flange flange DN100 PN1.6 stainless steel 316L (GB/T9119-2000)

FK PTFE flange flange DN150 PN1.6 stainless steel 316L (GB/T9119-2000)

YP Special

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe + marine license (Exia IIC T6) is limited to "A" or "B" electronic components and "G" type enclosure; intrinsically safe + flameproof type (Exd [ia]ia IIC T6) is limited to use "D" shell.

Company Features
1. The high quality level transmitter price makes KAIDI more competitive in the industry.
2. The professional excellent talents are the continuous developing power resource of Kaidi level indicator.
3. KAIDI will persistently provide superior liquid level meter . Inquiry!
