wholesale level 2 radar suppliers for detecting

Company Advantages
1. A range of quality tests for KAIDI will be carried out by the QC team. The tests include material tensile strength, anti-fatigue test, shock resistance, and endurance testing. It is suitable for extreme pressure conditions
2. Supported by ingenious team, KAIDI has highly recommended service team. This product has been certified under CE and RoHS
3. level 2 radar is highly recommended for its . This product stands out for its high sensitivity

PRODUCT OVERVIEW

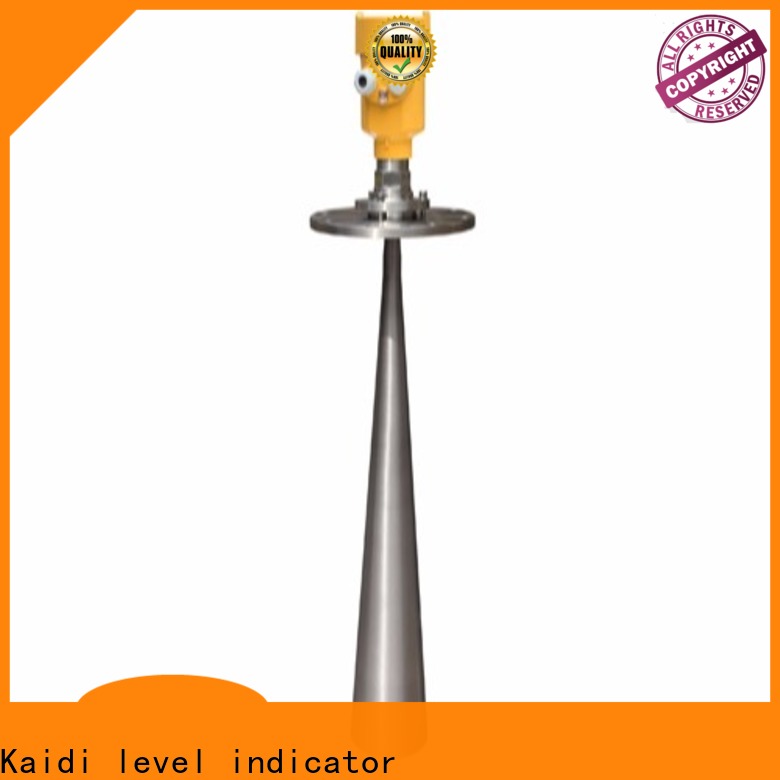

This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 10 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.

THE PRODUCT PRINCIPLE

Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals (because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost instantaneous).

Datum measurement:  Screw thread bottom or the sealing surface of the flange.

Note: Make sure the radar level meter the highest level cannot enter the measuring blind area (Figure D shown below).

PROTECTION GFEATURES

Ø Small antenna size, easy to install; Non-contact radar, no wear, no pollution.

Ø Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure

changes.

Ø Serious dust environment on the high level meter work has little effect.

Ø A shorter wavelength, the reflection of solid surface inclination is better.

Ø Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.

Ø The measuring range is smaller, for a measurement will yield good results.

Ø High signal-to-noise ratio, the level fluctuation state can obtain better performance.

Ø High frequency, measurement of solid and low dielectric constant of the best choice.

PRODUCT SPECIFICATION

APPEARANCE OF SIZE

TECHNICAL PARAMETERS

INSTALLATION REQUIREMENTS

Company Features
1. Guangdong Kaidi Energy Technology Co., Ltd. introduced the most advanced equipment to provide security for the team to complete the order.
2. Guangdong Kaidi Energy Technology Co., Ltd. always believe that quality is above everything. Get quote!
