Waterproof outlet pressure transmitter

PRODUCT INTRODUCTION

The product is all stainless steel structure, adopts high-precision pressure core and precise compensation technology, has strong shock resistance, shock resistance and long-term stability, easy installation, wide range, etc. At the same time, it has different thread interfaces and signal output, And optional with on-site display header to meet the needs of our customers. This series of products are widely used in industrial equipment, constant pressure water supply, medical equipment, process control and other fields.

Features

1. Technical parameters
Range: -0.1-300MPa (optional)
Accuracy: 0.25%FS, 0.5%FS, 1.0%FS
Output signal: 4-20mA, 0/1-5/10V, 0.5-4.5V, 1.0/1.5/2.0mV/V
Power supply voltage: mV signal 10 (+5-12) VDC;
Other output signals +5VDC, +12VDC, +24VDC
Process connection: G1/4, R1/4, G1/8, G1/2, 1/2NPT, 1/4NPT,
M14*1.5, M20*1.5 (can be customized)
Electrical connection: aviation plug, direct lead, Hessman connector
Load capacity: current type ≤500Ω
Compensation temperature: 0-85°C
Working temperature: -20-120°C
Safe overload capacity: 150%
Limit overload capacity: 200%
Temperature drift: 0.02%FS/°C
Long-term stability: 0.2%FS/year

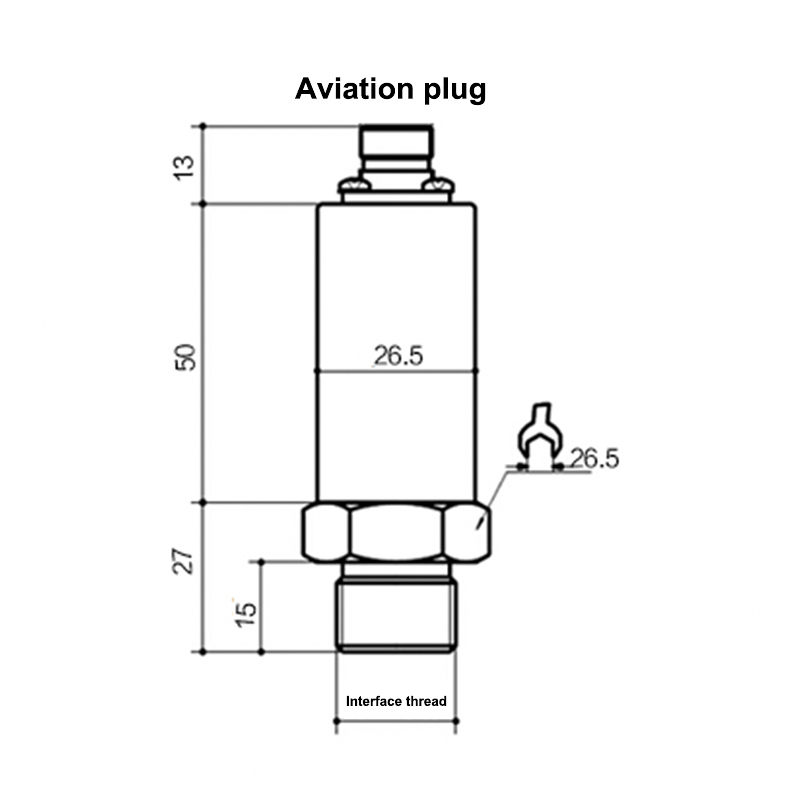

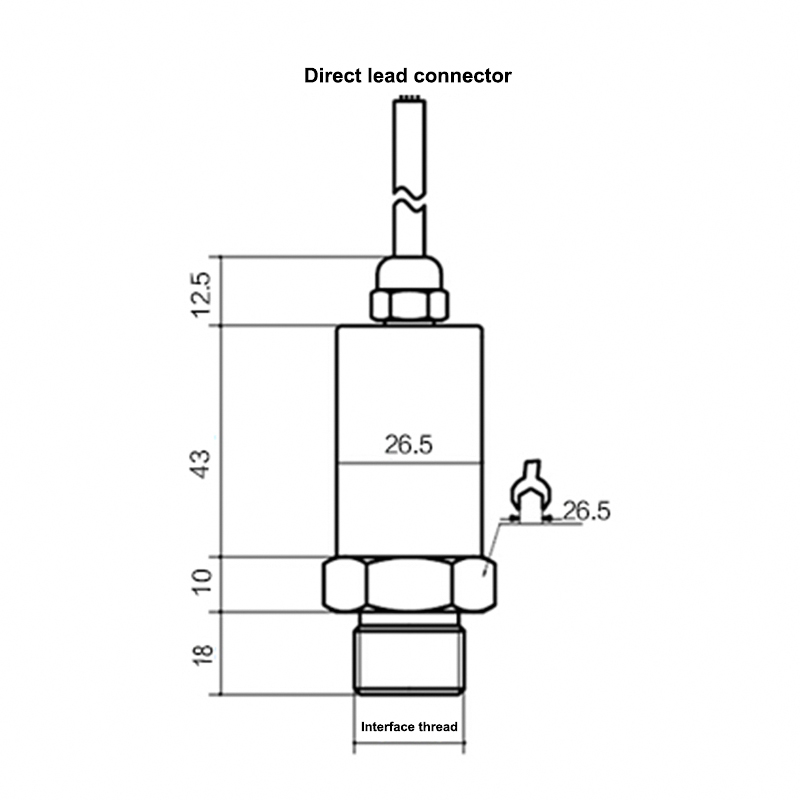

WIRING DIAGRAM & DRAWING

Please Send Us your Application details

Measuring range , medium, Installation method (flange, thread), Pressure range, Remote transmitter, Level alarm switch

Our technical team will check your specifications and make a best solution for you.

More Model available for all appication, different termperture and pressure!
