wholesale Water Level Probe Boiler Water Level Sensor Water Level Electrode Probe

PRODUCT INTRODUCTION

Boiler water level probe

Steam generator water level probe

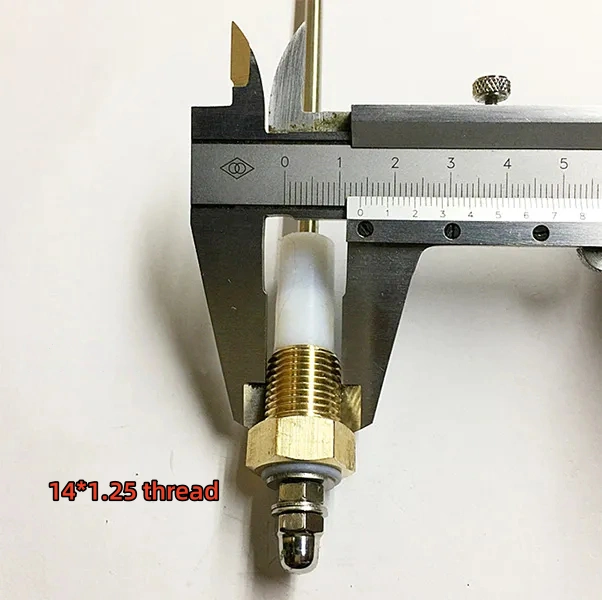

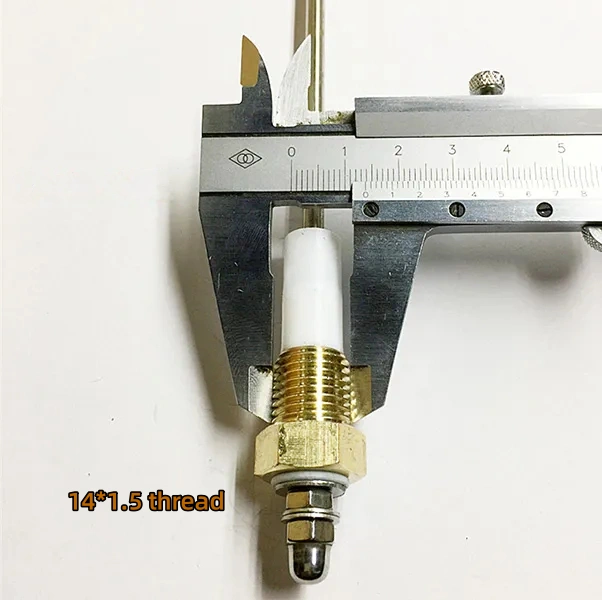

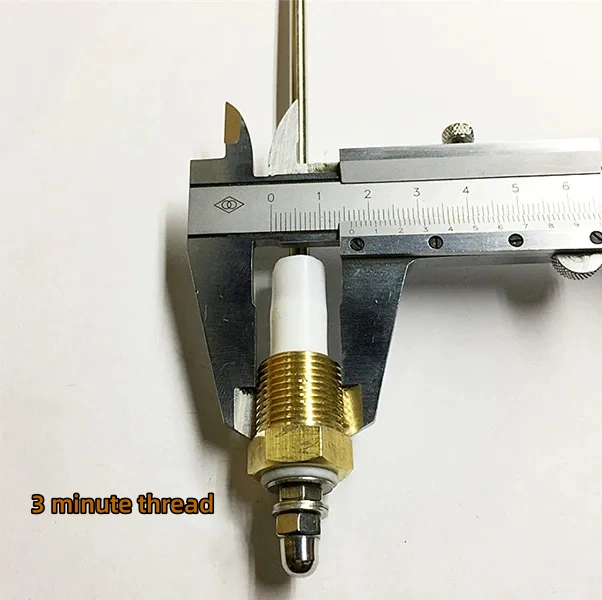

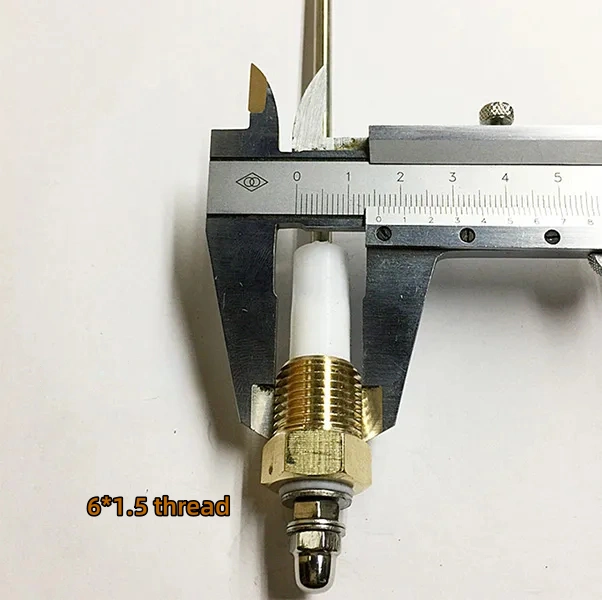

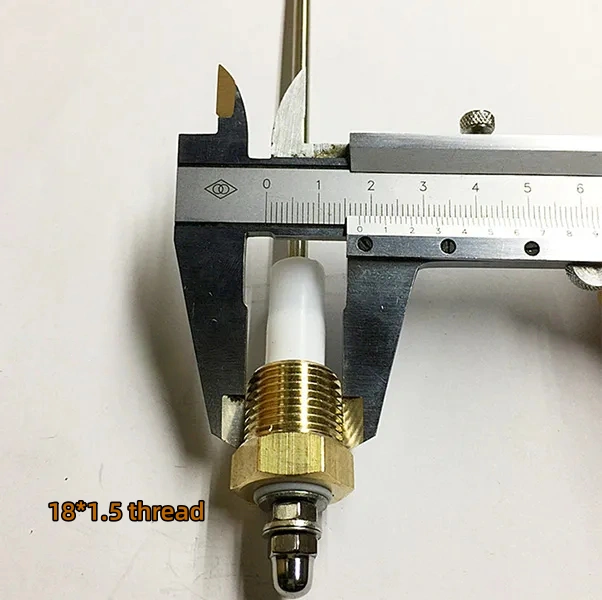

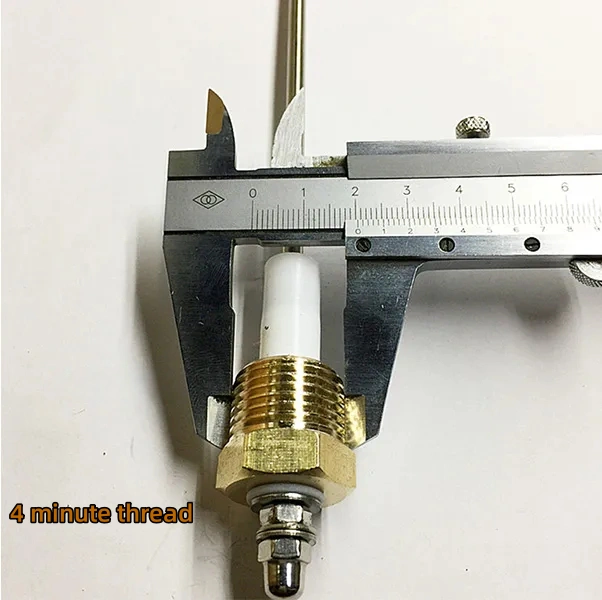

Mounting thread size: 4 points of thread (G1/2) 1 inch of tube thread

Threaded joint material: brass

Electrode rod material: SUS304

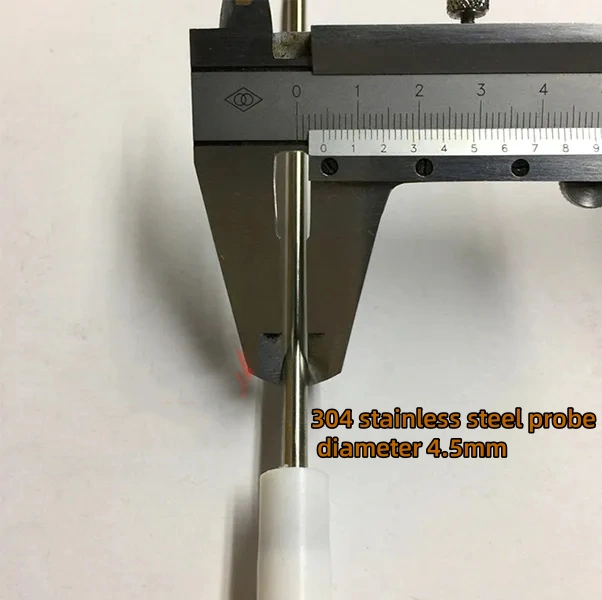

Electrode rod diameter: 4.5mm

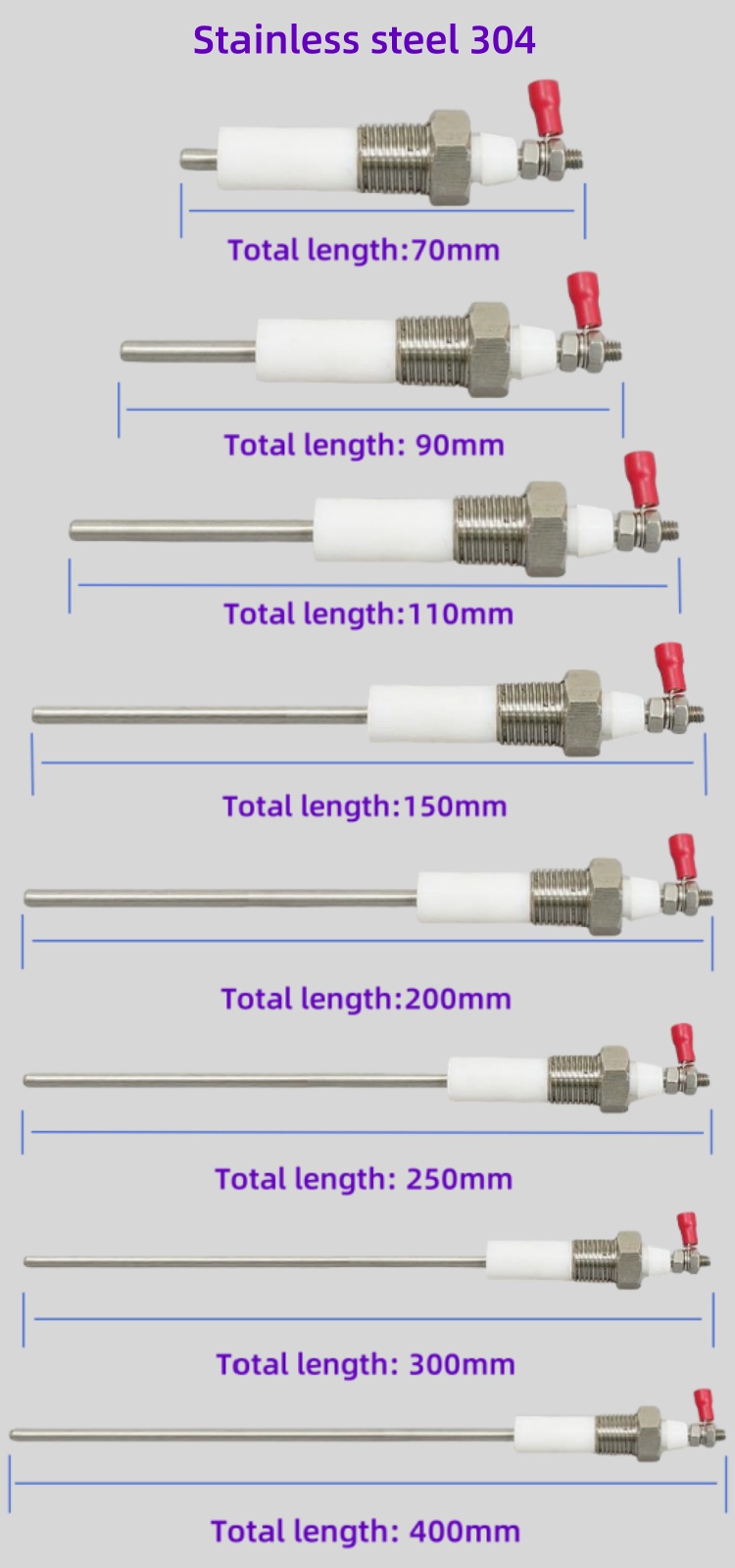

Total length of boiler water level electrode rod: 370mm

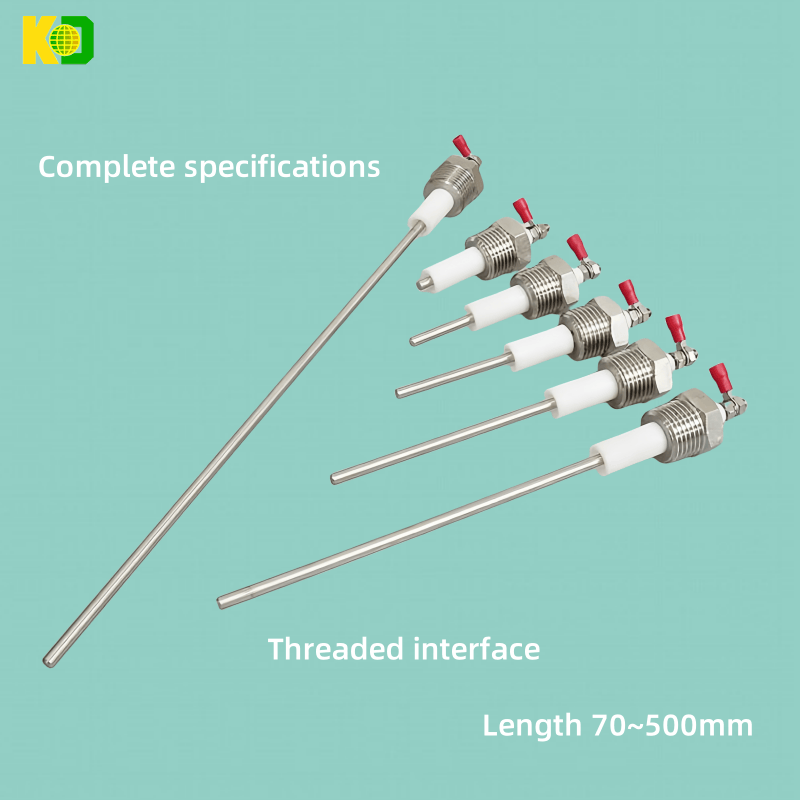

1 inch water level electrode rod length: 315mm 265MM 215MM

1 inch thread 2 probe length 370MM

Insulation material: polytetrafluoroethylene (PTFE)

Electrode water level sensor wholesale is also known as a “Conductivity Level Sensors”.

Electrode sensor basically requires physical contact with the water to detect the water level. The water act as resistance. Small electronic current will be passing through the water which helps the sensor to sense the water level. For this reason, not all liquid can use this sensor for detection. One example is oil, which has an insulating property in nature. If you need to measure the level of a non-conducting liquid, consider using an ultrasonic water level sensor.

For a typical water tank or rainwater level detection, the electrode sensor is an affordable and commonly used method to detect the amount of water in a tank compared to other water level sensing method.

A water level probe is a device that measures the depth of water in a tank or body of water. There are several benefits to using a water level probe sensor, including:

Accurate Measurements: For efficient use of water resources and to prevent overflows, a water level probe provides accurate measurements of water levels.

Cost-Effective: Level sensor electrode help reduce water waste and save money on utility bills by ensuring that water is used efficiently.

Environmental Benefits: Water level probes can be used to efficiently use water resources, reducing the need for dams and other infrastructure projects that harm natural habitats.

Easy to Use: Water level probes are easy to install and operate, making them an ideal choice for both commercial and residential applications.

Prevents Equipment Damage: By monitoring water levels, a electrode water level sensor can prevent damage to equipment such as pumps and motors, which can occur when they run dry or when the water level is too high.

PRODUCT DETAILS

What is a water level sensor?Level sensors are used to detect the level of substances that can flow. Such substances include liquids, slurries, granular material and powders. Level measurements can be done inside containers or it can be the level of a river or lake.

Electrode Sensor for Water Level DetectionAn electrode sensing needs at least two contact point to function. For electrode with only a single probe, the other end of the sensor wire will be connected to a metallic tank (usually of stainless steel material). The metallic

tank will act as the second probe. If the tank is not metal, or you do not want to connect the sensor wire to your tank, you can use a two probe electrode.
The water column causes pressure on the transmitter and this pressure is proportional to the water level. Thus, using a electrode level sensor, the water level of e.g. an underground reservoir can directly be monitored

by measuring the pressure above any convenient level measurement point.

Please Send Us your Application details

Measuring range , medium, Installation method (flange, thread), Pressure range, Remote transmitter, Level alarm switch

Our technical team will check your specifications and make a best solution for you.

More Model available for all appication, different termperture and pressure!
