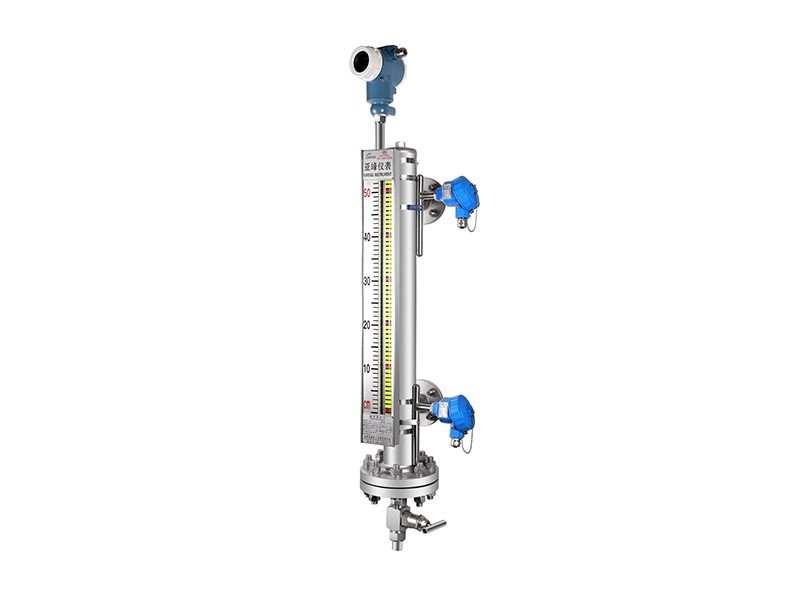

UZC type high temperature and high pressure magnetic level gauge is a series of level gauges specially designed by our company for high temperature and high pressure measurement environment. This series of products has the following advantages:

1. The wall thickness simulation design software independently developed according to the pressure vessel design standard can scientifically design the wall thickness of the pressure chamber of the product and the specifications and dimensions of the floating ball according to the pressure and temperature range of the customer's working conditions, effectively improving The pressure-bearing performance and safety performance of this series of products.

2. The pressure-bearing chamber and the floating ball adopt the single-sided welding and double-sided forming process, which effectively guarantees the quality of the welding seam.

3. For different pressure levels, the flange connection sealing surface of this product adopts high pressure design. When the connecting flange sealing surface adopts the RJ ring connection surface, the maximum design pressure can reach 42MPa.

4. Flaw detection and inspection: This series of products will perform a series of flaw detection and inspection on the parts and chambers after welding according to different pressure levels to ensure the quality of the weld and zero defects of the material to the greatest extent.

5. The display panel adopts high temperature isolation technology for high temperature environment, which can effectively isolate the display panel from the high temperature chamber at high temperature, which improves the temperature resistance performance and service life of this product, and the maximum temperature resistance can reach 450 ℃.

6. Water pressure test: After the production is completed, this product will be subjected to a rigorous high-pressure water pressure simulation experiment. The high-pressure water pressure holding test is 1.25-1.5 times of the customer's site design pressure, which is higher than the customer's site use pressure. The water pressure test simulates the customer's on-site use pressure, guarantees the safety performance and sealing performance of this series of products to the greatest extent, and provides the safest and most reliable products for customers' safe production measurement.
