top electromagnetic flow transmitter supply for transportation

top electromagnetic flow transmitter supply for transportation
  • top electromagnetic flow transmitter supply for transportation

top electromagnetic flow transmitter supply for transportation

Brief IntroductionKFL-DG series electromagnetic flowmeters follow the...
Inquire Online
Get the latest price
Quantity Needed:
Pieces
E-mail:
Company Advantages
1. Kaidi Sensors electromagnetic flow transmitter is provided in varied design styles. The function of this product can be customized to meet the needs of liquids, granules, slurries, solids, and powder
2. Sales network in Guangdong Kaidi Energy Technology Co., Ltd. has been extended in all directions. This product has the feature of explosion-proof
3. The product will also undergo strict tests before delivery. These ongoing tests including an internal test and external test can achieve the superiority of the product. This product has the advantage of high accuracy

Brief Introduction

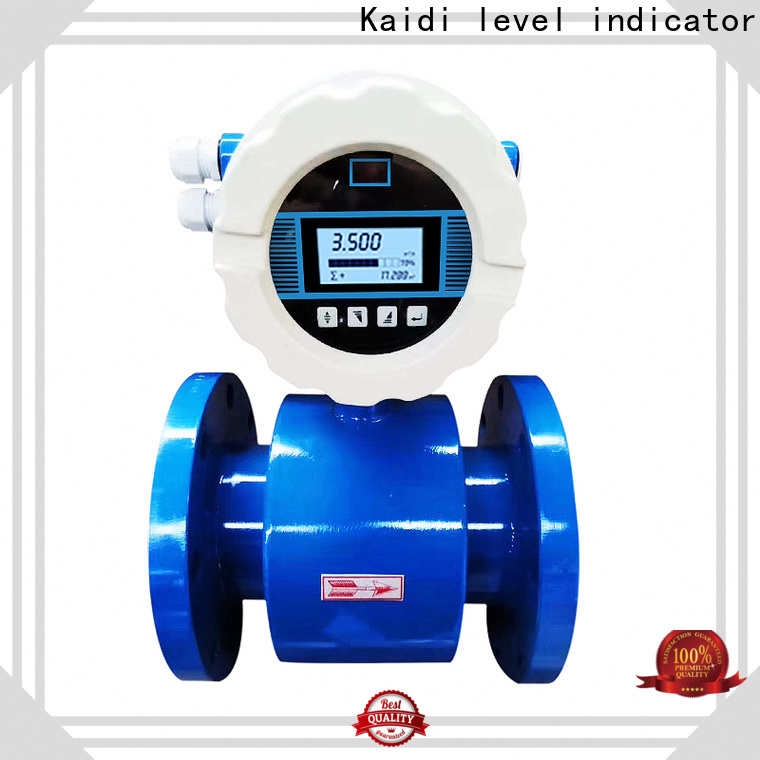

KFL-DG series electromagnetic flowmeters follow the Faraday law of electromagnetic induction. They can be used to accurately measure the flow rate of liquids which are electrical conducting, caustic, and mixed with liquids and solids. They are widely used throughout industries of petroleum, chemical engineering, pharmacology, papermaking, electric power, environmental protection and so forth. Their antiknock level is ExdIIBT4.the feature of Kaflon High Quality& Accuracy Low Cost Electromagnetic Flow meter is 1- zero pressure losing; 2- High accuracy, Stable performance, high level of anti-vibration and anti-jamming, wide measuring dimensions. 3- Corrosion protection, abrasion resistant;4.life long time.

Features

1)No Moving Parts, Virtually No Pressure Loss;

2)Corrosion protection, abrasion resistant;

3)High accuracy, Stable performance;

4)High level of anti-vibration and anti-jamming, wide measuring dimensions.

5)Multi-Output Interface4~20mA, Pulse, Alarm Outputs, RS-485 and Modbus Communication

Operating Principle

Faradays Laws of Induction form the basis for the electromagnetic flowmeters. It states that a voltage is induced in a conductor as it moves through a magnetic field.

This principle is applied to a conductive fluid which flows through a magnetic field generated perpendicular to the flow direction (see Schematic).

The voltage induced in the fluid is measured at two electrodes, installed diametrically opposed. This signal voltage UE is proportional to the magnetic induction B, the electrode spacing D and the average flow velocity v. Noting that the magnetic induction B and the electrode spacing D are constants, a proportionality exists between the signal voltage UE and the average flow velocity v. The equation for the volume flow shows that the signal voltage UE is linear and proportional to the volume flowrate. The induced signal voltage is processed in the converter into scaled, analog and digital signals.

Specifications

- Size: DN10~DN600 (PTFE) ; DN40~DN1200 (NBR)

- Standard pressure: PN1.0MPa~40MPa;

- Accuracy: ±0.5%~±1.0%;

- Supply power: 85 to 250VAC (45 to 63Hz), 16 to 36VDC;

- Signal output: Current Output: 4~20mA;

- Frequency Output: 0~5000Hz with photoelectric isolation;

- Pulse Output: 0.001~1.000m3/cp, 0.001~1.000 Ltr/cp, 0.001~1.000USG/cp,0.001~1.000 UKG/cp;

- Alarm Output: Upper Alarm-ALMH, Lower Alarm-ALML with photoelectric isolation;

- Communications: RS-232 without galvanic isolation, RS-485 with Galvanic isolation;

- Ambient temperature: -10~60;

- Relative humidity: ≤85%RH;

- Atmospheric pressure: 86KPa~106KPa;

- Applicable Fluid: electrically conducting liquid;

- Fluid temperature:-25~ +65 and -25~ +180;

- Electrical conductivity: 5us/cm.



Company Features
1. With the development of economy, Kaidi Sensors has gained much reputation in electromagnetic flow transmitter manufacture industry. We have an experienced marketing team who forms their own complete marketing system. They are quite familiar with market trends and clients' purchasing tendency. This enables them to master clients' actual demands.
2. We have a team of professionals. They have special insight into the way of developing and designing products that perfectly cater to the market, which helps the company earn the market.
3. We have an advanced manufacturing plant which is strategically located with convenient transportation. This allows us to respond efficiently and flexibly to consumers and customers’ needs. Customer satisfaction is the driving force behind development. Inquire!
electromagnetic flow transmitter Fine workmanship, smooth surface without burrs, comfortable to hold, easy to use, easy to clean and maintain, durable, and reliable in quality.
electromagnetic flow transmitter Selected high-quality materials, using first-class casting technology and fine processing technology, the surface is smooth and smooth, the hand feels comfortable and delicate, the texture is firm and thick, and the quality is safe and reliable.
electromagnetic flow transmitter Selection of environmentally friendly materials, refined by first-class manufacturing technology, high quality, safe and healthy, reliable and trustworthy.
electromagnetic flow transmitter Fashionable in design, bright in color, novel in style and beautiful in shape, it is a children's play equipment integrating fitness and entertainment.
electromagnetic flow transmitterExquisite material selection, fine workmanship, compact structure, safe and reliable quality, both beautiful and practical, is a reliable papermaking machinery and equipment.
electromagnetic flow transmitter Made of high-quality raw materials, it has good corrosion resistance, impact resistance and oxidation resistance, and it is not easy to deform and rust even after long-term use.
