Introduction

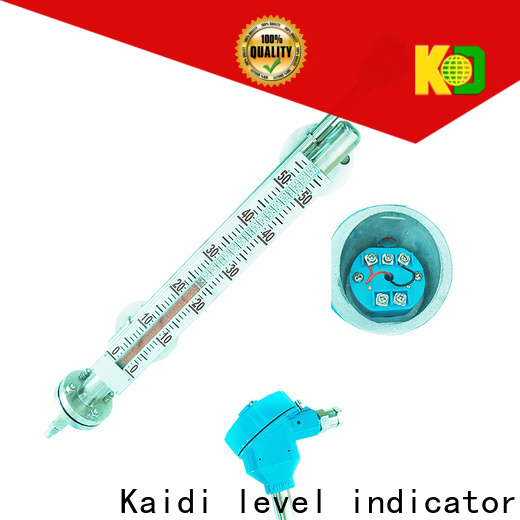

KDMLI is KAIDI’s standard, high performance magnetic level indicator. KDMLI is a single chamber design with either 2", 2.5", or 3" chamber diameter, as required by the application. There are twelve basic configuration styles, including top mount models. KDMLI magnetic level indicators are produced in a wide range of materials of construction, including plastics. KAIDI also offers one of the most complete selections of process connection types and sizes in the industry. KDMLI may be equipped with a variety of level transmitters and switches, as well as, flag and shuttle indicators with or without stainless steel scales. This enables the KDMLI to be a complete level and monitoring control.

Specifications

Medium Density	≥ 0.5Kg / L
Medium pressure	≤ 5.0Mpa
Medium temperature	-40 ~ 130 °C / 200 °C
Measuring range	300-6000mm
Accuracy	± 8mm
Measuring tube material	SUS304/SUS316L/PP/PVDF
Float material	SUS304/SUS316L
Connection	Flange connection (Customizable)
Top Connection	Dome + race header (Customizable)
Limit switch	Customizable
Whether the remote	Customizable
Whether the explosion	Customizable

z******b

Kaidi Sensors non contact liquid level sensor meets mandatory electrical safety requirements. It has to pass the following tests: high voltage test, leakage current test, insulation resistance test, and ground continuity test.

g******d

The design of Kaidi Sensors non contact liquid level sensor is a complex process. From 3D modeling, stress on parts, to construction, every detail is well taken care of.

m******s

Kaidi Sensors non contact liquid level sensor has to go through final random inspections. It is conducted by a QC team to verify its electrical safety in terms of continuity, voltage, and amperage.

i******g

Kaidi Sensors non contact liquid level sensor is required to pass various tests before delivery. It has to undergo the expected tests such as current leakage, insulation resistance, water and dust protection, etc.

o******b

Kaidi Sensors non contact liquid level sensor will go through a series of automatic tests. They include a polarity test, earth continuity test, insulation resistance test, and current leakage test.

u******b

By virtue of the adhesive coating layer, non contact liquid level sensor has strong corrosion resistance and oxidation resistance. It will not be oxidized or discolored during long-term wear. It is of good durability and long service life.
