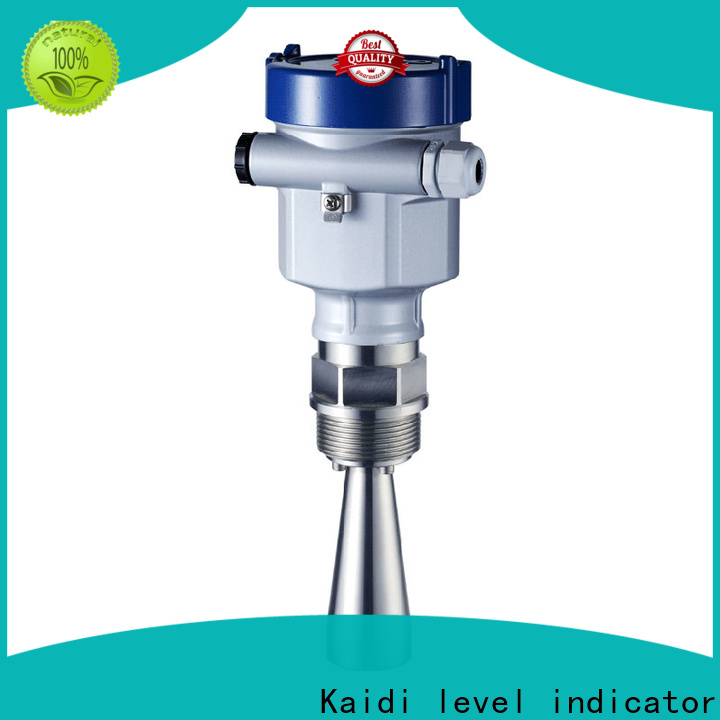

new level transmitter for water tank supply for industrial

Feature: 　Various patented antennas, anti-condensation, anti-hanging material, the minimum emission angle is 8 degrees. Solve the blindness of 6G radar in the small tank

　　　　　　 Large area, multiple echo problem.

Should be used: 　 is widely used in the measurement of various liquid levels. Such as: oil tank, etc.

Maximum range: 　30m

Measurement accuracy: 　±3mm

Antenna material: 　(T type) stainless steel 316L horn/PTFE vibrator

　　　　　　(V type) stainless steel 316L/PTFE vibrator

Antenna structure: 　 (T type) pointed cone vibrator, poor anti-condensation

　　　　　　(V type) cone vibrator, anti-condensation

Process temperature: 　(T type)(-40～250)°C

　　　　　　(V type)(-40～200)°C　

Process pressure: 　(T type)(-0.1～4)MPa

　　　　　　(V type)(-0.1～0.3)MPa

Frequency range: 　26GHz

Signal output: 　(4～20)mA/HART

Electric source: 　Two-wire system/four-wire system

Detailed introduction:

GDRD56

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Ex ia IIC T1～T6)

Antenna type/material

B (T type) horn antenna Φ48mm/stainless steel 316L

C (T type) horn antenna Φ78mm/stainless steel 316L

H (T type) horn antenna Φ98mm/stainless steel 316L

I (T type) horn antenna Φ98mm (extended)/stainless steel 316L

J (T type) Horn antennaΦ123mm/Stainless steel 316L

M (V type) horn antenna Φ98mm/stainless steel 316L/PFA430 cover

N (V type) horn antenna Φ98mm (extended)/stainless steel 316L/PFA430 cover

P (V type) horn antenna Φ123mm/stainless steel 316L/PFA430 cover

X Special custom seal/process temperature

2 Viton(-60～150)℃

3 Kalrez(-60～250)℃

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC /HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

H stainless steel two-chamber 316L/IP67

Cable entry

M M20x1.5

N ½ NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe type (Ex ia IIC T1～T6) can only use "B" electronic components and "A" "G" type shell

The standard flange size refers to GB/T9119-2000 PN1.6MPa size, and the thickness is 15.
