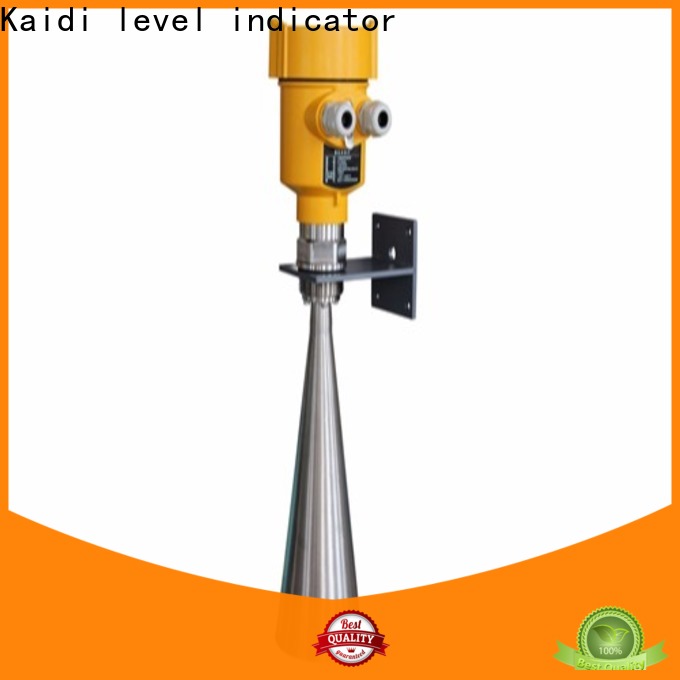

KAIDI wholesale level 2 radar factory for detecting

Company Advantages
1. KAIDI has verified quality. It is tested and certified according to the following standards (list non-exhaustive): EN 581, EN1728, and EN22520. This product is notable for its strong overload capacity
2. The product has a huge impact on the environment. With its enhanced low energy consumption, it contributes to the reduction of carbon emission. This product has the feature of explosion-proof
3. are the characteristics of level 2 radar . This product has the ability to accurately convert a physical parameter into a signal

PRODUCT OVERVIEW

This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 10 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.

THE PRODUCT PRINCIPLE

Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals (because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost instantaneous).

Datum measurement:  Screw thread bottom or the sealing surface of the flange.

Note: Make sure the radar level meter the highest level cannot enter the measuring blind area (Figure D shown below).

PROTECTION GFEATURES

Ø Small antenna size, easy to install; Non-contact radar, no wear, no pollution.

Ø Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure

changes.

Ø Serious dust environment on the high level meter work has little effect.

Ø A shorter wavelength, the reflection of solid surface inclination is better.

Ø Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.

Ø The measuring range is smaller, for a measurement will yield good results.

Ø High signal-to-noise ratio, the level fluctuation state can obtain better performance.

Ø High frequency, measurement of solid and low dielectric constant of the best choice.

PRODUCT SPECIFICATION

APPEARANCE OF SIZE

TECHNICAL PARAMETERS

INSTALLATION REQUIREMENTS

Company Features
1. With great superiority of large scaled factory, Guangdong Kaidi Energy Technology Co., Ltd. takes the lead in the field of level 2 radar . Our production plant is located in the Mainland, China. It is certified to the industry’s highest quality and excellence standards for health, safety, product quality, and environmental management.
2. We have expanded our business scope in the foreign markets. They are mainly the Middle East, Asia, America, Europe, and so on. We have been making efforts in expanding more markets in different countries.
3. We have an independent research and development team. They are able to develop and innovate some new products with distinctiveness and improve the original old products for new upgrades. This enables us to keep update our product categories. We will adhere to the highest standards of ethics and business conduct. We always do business within the laws and stoutly reject any illegal and vicious competition.
