1.Product introduction

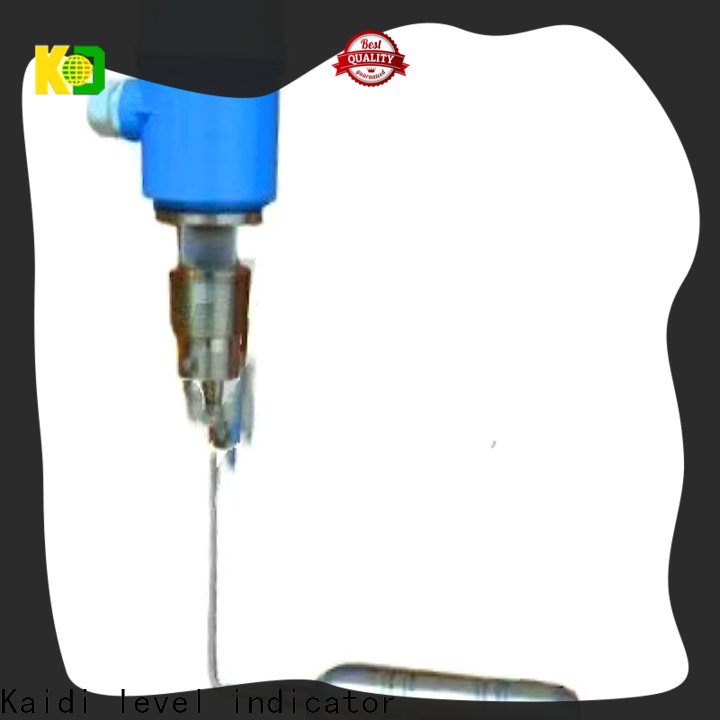

LF-20D side-mounted float level switch is characterized by easy use, simple structure, safe and reliable, long working life, small size, fast speed, sturdiness and durability, and the contact life can reach 1 million times. It is widely used in petrochemical industry, generator equipment, food industry, water treatment, electrician and other industries.

2.Working principle

When the floating ball floats up and down under the action of liquid buoyancy, the reed switch (or micro switch) in the junction box interacts with the arm end magnet to cause the reed switch (or micro switch) to act. At the same time, it outputs ON (ON) and OFF (OFF) signals for alarm notification or remote control.

3.Product characteristics

(1) It can be installed horizontally on the side wall of the tank or vertically on the top of the tank;

(2)The structure is simple, the performance is stable and reliable, and the installation is convenient;

(3)The control part is completely isolated from the measured liquid medium and can be used in high temperature and high pressure environments;

(4) Multiple materials and connection methods can meet the needs of different environments;

(5)Wide range of applications: food, medicine, chemical, electronics, shipbuilding, water treatment and other industries;

4.Specifications and Models

KAIDI wholesale float switch factory for transportation-1

Thread standard type

（1） Junction box: aluminum/IP65

（2） Output contact: 5A/220VAC

（3） Contact form: SPDT (IC)

（4） Operating pressure: 15Bar

（5）Operating temperature: -20--120°C

（6） Wetted material: SUS304/316

（7） Applicable proportion: 0.65

Top-mounted standard type

（1） Junction box: aluminum/IP65

（2）Output contact: 5A/220VAC

（3） Contact form: SPDT (IC)

（4）Operating pressure: 30Bar

（5） Operating temperature: -20--120°C

（6） Wetted material: SUS304/316

（7）Applicable proportion: 0.55

5.Selection Guide

KAIDI wholesale float switch factory for transportation-2

d******h

Kaidi Sensors float switch is produced under standardized and scientific lighting standards. For example, the selection process of the light source highly meet the international lighting standards. Made of stainless steel materials, the product has a smooth surface to resist dust and dirt

l******t

During the inspection process of Kaidi Sensors float switch, it adopts advanced optical testing equipment, Both light uniformity and brightness have been guaranteed. The product is carefully designed with all NSF approved components

v******i

The production processes of Kaidi Sensors float switch are constantly monitored. These processes include the mechanical process, the welding process, the spray painting process, and the fitting assembly. The product is energy-saving, consuming little energy

p******r

The body design of Kaidi Sensors float switch adopts aluminum alloy materials, which allows that it has a lightweight yet sturdy and robust construction. The product is hygiene with no bacteria or mold built up

q******o

Kaidi Sensors float switch is well manufactured. Every process such as chip producing, bulb manufacturing, and lampshade surface treatment are paid close attention. It can be configured in a straight line or in an L-shaped configuration

z******n

Since the product features high light transmission performance. It is able to deliver light more efficiently to the desired location without any resistance. It can be configured in a straight line or in an L-shaped configuration
