Company Advantages
1. The materials of KAIDI ultrasonic level transmitter are supplied based on the commitment to the environment - a family of eco-friendly materials designed to manufacture the sustainable product. There is little variation between its measuring values
2. Guangdong Kaidi Energy Technology Co., Ltd. offers excellent opportunities with competitive ultrasonic level transmitter . This product has a wide range of operating temperatures
3. With the advantages of , ultrasonic level transmitter is rather powerful in the similar products. This product is notable for its strong overload capacity
4. More costumer prefer ultrasonic level transmitter from Guangdong Kaidi Energy Technology Co., Ltd. because of its . This product is characterized by excellent temperature stability
5. By using advanced production technology, performance such as has been realized on ultrasonic level transmitter . It is suitable for extreme pressure conditions

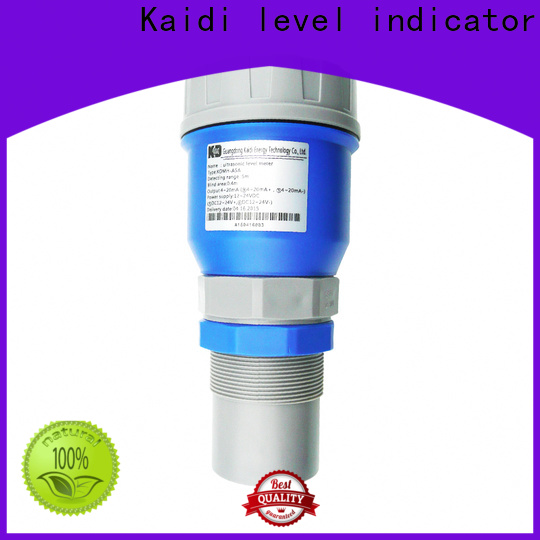

Introduction

It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics, is small and firm with ABS probe. Therefore, it is applicable for various fields concerning level measuring and monitoring. According to the practical situation, it also can add other modules, such as RS 485, current output; it can be match with PLC better.

Characteristics

• DC12-24V wide work voltage

• Backup and recovery parameter set

• Free adjustment of the range of analog output

• Set a filter value to remove

• Custom serial port data format

• Optional increment/difference distance measurement to measure air space or liquid level

• 1-15 transmitted pulse intensity depending on working conditions

• More choices depend on your requirement, as bellowing:

1. 3 NPN output

2. 2 relay output

3. Voltage output

4. RS485output connect with PC

5. Explosion-proof



III. Specifications

Range: 5. 8. 10. 12. 15m

Blind zone: ＜0.4-0.5m（different for range）

Measure error:  0.3%F.S

Display:  OLED

Display resolution: 1mm

Frequency:: 20～350KHz

Power: 12-24VDC

Power consumption: <1.5W

Output (optional):

4～20mA RL>600Ω（standard）

              1～5V\1～10V

              RS485

2 NPN

              2 relays (AC: 5A 250V DC: 10A 24V)

Material: ABS

Dimension: Φ92mm×198mm×M60

Electrical interface: M20X1.5

Installation: M60X2 or ￠61MM

Operating surroundings: normal temperature, normal pressure

Protection degree: IP65 (others optional)

Company Features
1. The outcome of ultrasonic level transmitter has been considerably enhanced through our international advanced technology.
2. KAIDI sticks to the business tenet—Honesty is the Best Policy. Contact us!
