Product introduction

Ultrasonic level gauge (measuring material level, liquid level) is a non-contact, highly reliable, cost-effective, and easy-to-install and maintain level measuring instrument. It can meet most of the level measurement requirements without contacting the medium. It is a new generation of ultrasonic level meter that our company has developed after years of hard work and has completely independent property rights.

Debugging

Because the installation environment of the instrument is different. Therefore, the ultrasonic level meter must know the basic conditions of the required measurement before working, such as: measuring range, zero point, full range and field conditions, etc. Therefore, the meter must be set up before measurement.

Technical parameters of integrated ultrasonic level gauge

Structure	One-piece
Range	10 meters	Blind area	0.3-0.4 meters
Power supply	24VDC	Wire system	two-wire system
Output	4-20ma	Connection method	G2 thread
Sensor protection level	IP68	Shell material	ABS
Host protection level	IP65	Medium temperature	-20~+60℃
Medium pressure	normal pressure	Working environment temperature	-20~+60℃

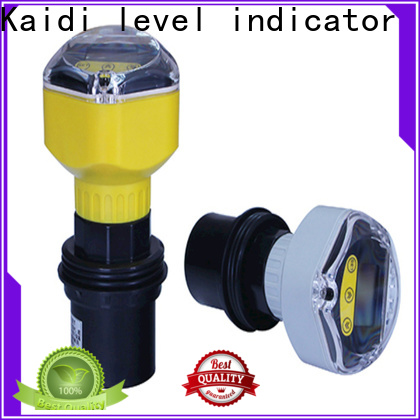

Product display diagram

Installation guide

(1)Measuring liquid

In the reservoir, generally speaking, the installation height of the meter should be determined according to the highest water level. You must pay attention to the distance between the highest water level and the probe. When the water level is low, there are objects at the bottom of the pool, and this edge should use a refraction plate. Block.

KAIDI type of level transmitter suppliers for industrial-3

There is an obstacle at the bottom of the pool-use a baffle to refract

If there is a strong vortex or vortex in the container, such as the vortex caused by a stirrer or a strong chemical reaction, the measurement will be very difficult. The ideal way is: the sensor probe can be installed in the still tube or the bypass tube for measurement.

KAIDI type of level transmitter suppliers for industrial-4

The surface of the medium fluctuates greatly-use a bypass tube or add a still tube to measure

(2)Common installation errors

①Bubbles:

If the bubbles on the surface of the medium are large and the bubble layer is thick, it will cause measurement errors and even fail to receive the reflected ultrasonic waves. Please take measures to prevent air bubbles, or install the sensor in the bypass pipe for measurement.Other measuring instruments can also be used, such as radar level gauges, magnetostrictive level gauges.

②The sensor is installed in the wrong direction

If the sensor is not mounted on the surface of the medium, the measurement signal will be weakened. To ensure the best measurement effect, please align the axis of the sensor with the surface of the medium, which is perpendicular to the surface of the interface to be measured.

x******y

Kaidi Sensors type of level transmitter is produced combining the decoration technique with manual finishing drawing. When the product is fired, the drawing will stick to the glaze tightly, and hence to create different patterns. It is suitable for extreme pressure conditions

h******p

Any raw materials used in Kaidi Sensors type of level transmitter will be tested before production, including hardness, density, and water resistance tests. All these tests must be conducted in line with the shoe materials requirements. This product is characterized by excellent temperature stability

g******y

Before production, the electrode materials of Kaidi Sensors type of level transmitter are carefully handled to prevent them from coming into contact with each other. Because contamination between the anode and cathode materials will ruin the battery. There is little variation between its measuring values

q******y

The production process of Kaidi Sensors type of level transmitter is well-controlled. From the extraction of raw materials to the mixture, forming, and cutting, every step is highly efficient. It is suitable for extreme pressure conditions

c******p

The inspection of Kaidi Sensors type of level transmitter is strictly conducted. It has passed the inspection of the spectrometer with reasonable light color temperature. This product is characterized by excellent temperature stability

j******c

The product is in the best quality at competitive, affordable prices. This product is notable for its strong overload capacity
