1.Product Introduction

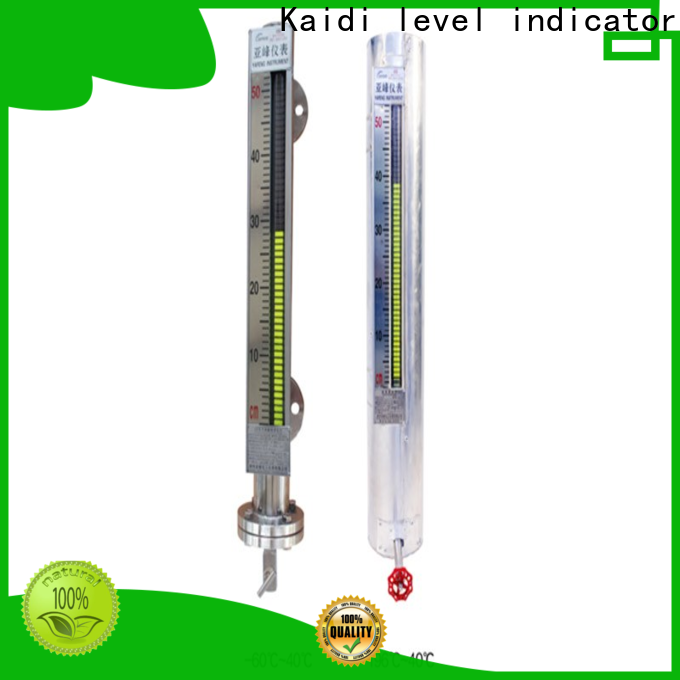

KAIDI sump level sensor supply for transportation-1

UZC cryogenic magnetic level gauge is suitable for low temperature and ultra-low temperature liquid measurement, the lowest working temperature can reach -196℃. The product chamber adopts the most mature cryogenic isolation technology, which can make the level gauge normal in low temperature environment for a long time. In use, it has the advantages of no frost on the surface, no blind spots in the whole process of measurement, eye-catching display, intuitive reading, and large measurement range. According to the working temperature, it can be divided into: low temperature type and ultra low temperature type. Both of these two liquid level gauges adopt different cryogenic isolation processes to meet the corresponding temperature measurement.

2.Technical Parameter

KAIDI sump level sensor supply for transportation-2

3.Selection table

Model	illustrate
UZ	Subpeak Magnetic Level Gauge
Type of installation	C	Side loading	D	Top loading
Panel type	A1	-40-80℃ normal temperature	Z1	-190~-20℃ Vacuum
	A2	80-180℃ medium temperature	Z2	-20-180℃ Vacuum
	A3	180-350℃ high temperature	Z3	Vacuum at 180-350℃
	A4	350-450℃ ultra high temperature	E	-40℃-450℃ magnetic sensitivity
Pressure Rating (MPa)	1.0	PN1.0	2.0	CL150LB
	1.6	PN1.6	5.0	CL300LB
	2.5	PN2.5	11.0	CL600LB
	4	PN4.0	15.0	CL900LB
	6.3	PN6.3	26.0	CL1500LB
	10	PN10.0	42.0	CL2500LB
	16	PN16.0
Range-Density	Range mm-density g/cm³
Flange Material	P	304	PF	304 lined with fluorine
	PL	316L	C	Carbon steel
	PP	PP	Ti	titanium
Flange Diameter	15	Side mounted DN15	50	Top loading DN50
	20	Side mounted DN20	65	Top loading DN65
	25	Side mounted DN25	80	Top loading DN80
	32	Side mounted DN32	100	Top loading DN100
	40	Side mounted DN40	125	Top loading DN125
	50	Side mounted DN50	150	Top loading DN150
	65	Side mounted DN65	200	Top loading DN200
	80	Side mounted DN80	250	Top loading DN250
Flange sealing surface	Omit	Raised face	FM	Concave
Flange sealing surface	F	Convex	FF	Full plane
Tube material	P	304	P1	321
	PL	316L	P4	304L
	PF	304 lined with fluorine	Ti	titanium
	PP	PP
Insulation/anti-frost	Omit	No
	C	Type C insulation pipe (recommended)
	T1	Set vacuum insulation
	T2	Jacket insulation
	D1	40-90 constant temperature electric heating
	D2	120°C temperature control adjustable electric heating
	S1	Anti-frost below -40°C
	S2	-40~-20℃ anti-frost
Accessories	Y	Remote transmission level gauge
Accessories	K	Alarm switch

4.Dimensions

KAIDI sump level sensor supply for transportation-3

5.Product Structure

KAIDI sump level sensor supply for transportation-4
