Company Advantages
1. Guangdong Kaidi Energy Technology Co., Ltd. Continuously absorb advanced management experience at home and abroad, introduce professional manufacturing and quality inspection equipment, actively learn industry-leading production technology and manufacturing process, and strive to improve the inherent quality of products to ensure that rosemount guided wave radar level transmitter produced are of high quality Qualified product.
2. rosemount guided wave radar level transmitter Adopting dust-proof and anti-corrosion isolation technology, it can operate reliably in strong alkali and acid environment, effectively prolonging the service life.
3. The product does not prone to leakage danger. It is designed with double or intensified insulation system for extra safety. This product has a wide range of operating temperatures
4. The product stands out for mechanical properties. It is not easy to deform or crack when the heavy load is exerted on it. This product has a high level of IP

PRODUCT OVERVIEW

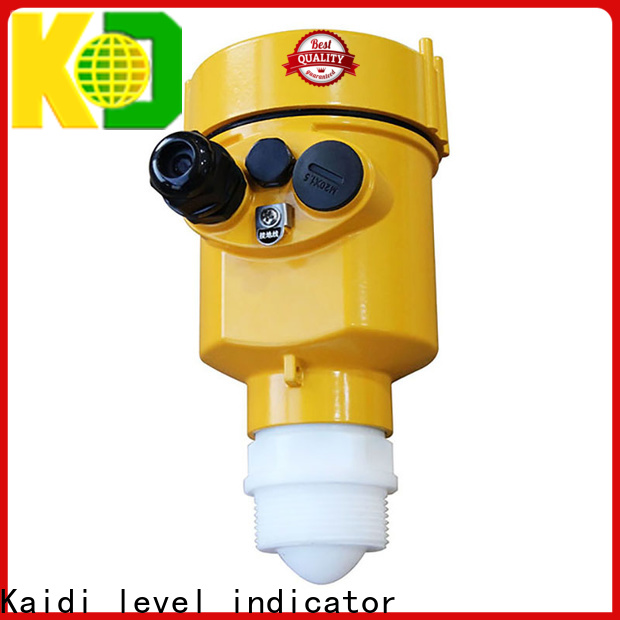

Kaidi KD-FMF11 FM radar level meter is a 120G FM radar type level measuring instrument with a measuring distance of up to 30 meters. The antenna is further optimized for processing and the new fast microprocessor allows for higher speed signal analysis and processing, making the instrument available for measurement of high temperature and high pressure and other environmental liquids.

Kaidi Sensors wholesale rosemount guided wave radar level transmitter for business for industrial-1

THE PRODUCT PRINCIPLE

The general principle of frequency modulated continuous wave radar level meter is that the radar emits electromagnetic waves at the top of the tank, and the electromagnetic waves are received by the radar after hitting the medium and reflected. Because the speed of light C and FM slope K are known, so the frequency difference δ f is estimated, and the distance R of the material surface at the radar installation position can be obtained, and then the height of the material level is obtained by subtracting the spatial distance from the radar to the material surface (referred to as the empty height) from the known total height of the tank.

Kaidi Sensors wholesale rosemount guided wave radar level transmitter for business for industrial-2

PROTECTION GRADE

This instrument fully meets the requirements of protection class IP66/67. Please make sure that the cable sealing head is waterproof. As shown

How to ensure that the installation meets the requirements of IP67.

Please make sure that the sealing head is not damaged.

Please make sure that the cable is not damaged.

Please ensure that the cable used meets the requirements of the electrical connection specification.

Before entering the electrical connection, bend the cable downwards to ensure that water does not flow into the housing, see ①

Please tighten the cable sealing head, see ②

Please plug the unused electrical connections with blind plugs, see ③

Kaidi Sensors wholesale rosemount guided wave radar level transmitter for business for industrial-3

PRODUCT SPECIFICATION

Kaidi Sensors wholesale rosemount guided wave radar level transmitter for business for industrial-4

Measuring medium: liquid

Measuring range: 0.05m~30m

Process connection: G1½ A/1½NPT thread/flange ≥ DN50

Process temperature: -40～80℃

Process pressure: -0.1～0.3MPa

Accuracy: ±2mm

Protection level: IP67

Frequency range：123GHz

Power supply：Two-wire(DC24V)/Four-wire(DC12V~24V)/Four-wire(AC220V)

Explosion-proof grade: Exia ⅡC T6 Ga / Exd IIC T6 Gb

Housing: Aluminum / Plastic / Stainless steel

Signal output: 2-wire 4.... .20mA / HART protocol / 4-wire 4.... .20mA /RS485 Modbus

APPEARANCE OF SIZE

Kaidi Sensors wholesale rosemount guided wave radar level transmitter for business for industrial-5

TECHNICAL PARAMETERS

Process connection	Flange
Material	304 stainless steel, PP
Shell	Seal between housing and housing	Silicone Rubber
	Shell window	Polycarbonate
	Ground terminal	Stainless steel
Supply voltage	four-wire system	Standard	（12~24）V DC
		Power consumption	max80mA DC24V/2W
		Allow ripple	＜100Hz	Uss＜1V
			（100~100K）Hz	Uss＜10mV
	Shell	(198~242)V AC	four-wire system
		100V AC	four-wire system
Cable parameters	Cable entry/plug	1 M20x1.5 cable entry
		1 blind plug M20×15
	Ground terminal	Conductor cross section 2.5mm2
Output parameters	output signal	（4~20）mA/RS485Modbus
	Resolution	1mm
	Fault signal	Current output unchanged; 20.5mA; 22mA; 3.9mA
	Integration time	(0~20)s, adjustable
Blind spot	0.1m/0.2m/0.3m
Maximum measurement interval	150 meters
Measuring distance	About 1 second (depending on parameter settings)
Adjust the time	About 1 second (depending on parameter settings)
Adjust time, working storage and transportation temperature	（-40~80）℃
Process temperature	KD-FMF11	-40~80℃
	KD-FMF12	-40~110℃
	KD-FMF13	-40~110℃
	KD-FMF15	-40~200℃
	KD-FMF21	-40~110℃
Relative humidity	＜95%
pressure	Max2.5MPa
Shockproof	Mechanical vibration 10m/s2, (10~150)Hz

INSTRUMENT LINEARITY

Kaidi Sensors wholesale rosemount guided wave radar level transmitter for business for industrial-6

INSTALLATION REQUIREMENTS

When installing the instrument, avoid installing it above the inlet, and try to avoid all kinds of objects that affect the signal, such as stirring paddles, etc.

Kaidi Sensors wholesale rosemount guided wave radar level transmitter for business for industrial-7

● Under extremely complicated working conditions, the instrument can work normally if there is no obstacle in the area of 500px radius with the radar installation point as the center. Kaidi Sensors wholesale rosemount guided wave radar level transmitter for business for industrial-8

Under extremely complicated working conditions, the instrument can work normally if there is no obstacle in the area of 500px radius with the radar installation point as the center.

Company Features
1. Guangdong Kaidi Energy Technology Co., Ltd., enjoying a good reputation in this industry, has been focusing on manufacturing and exporting for many years.
2. Kaidi Sensors has got its popularity for its high quality rosemount guided wave radar level transmitter .
3. To implement our sustainability goal, we have drawn up a comprehensive environmental program including production, distribution, and recycling.

p******t

The company has always been adhering to the production concept of 'safety first, quality first', and standardized production in strict accordance with national standards. The rosemount guided wave radar level transmitter produced is fine in workmanship, high in quality, beautiful and practical.

f******f

Guangdong Kaidi Energy Technology Co., Ltd. There are experienced technical and design talents, and there are many professional departments such as research and development, production, quality inspection, and service. One-to-one corresponding traceable records ensure that every product produced is of excellent quality and excellent quality.

p******q

We manufacture rosemount guided wave radar level transmitter in strict accordance with relevant national standards, and set up a professional QC team to strictly monitor every production link, comprehensively control the quality of products, and promote the production of rosemount guided wave radar level transmitter to meet the national quality inspection standards .

t******x

Guangdong Kaidi Energy Technology Co., Ltd. There are large-scale workshops, standardized production workshops, modern production lines, and skilled technology and craftsmanship. The rosemount guided wave radar level transmitter produced is not only good in quality and excellent in quality, but also meets relevant international quality standards. The pass rate of products is high, and customers can rest assured Partner with us for purchasing.

r******i

Guangdong Kaidi Energy Technology Co., Ltd. has been operating in good faith for many years, and has accumulated rich industry experience in product development and manufacturing. The rosemount guided wave radar level transmitter produced can meet the national CCC certification standards in terms of quality and performance.

y******x

The product is bacteria and fungi resistant. During the cleaning stage, it has gone through antibacterial and sterilization treatment, and the surface is finely polished to a very smooth level, which can effectively kill the bacteria. It is designed to be lightweight and supportive
