Kaidi Sensors top radar level measurement suppliers for transportation

Company Advantages
1. The design of Kaidi Sensors radar level measurement is reasonable and scientific. The combination of solar power and battery storage theory is adopted in the design to maximize the stable operation of the product. This product consumes little energy thanks to its energy-saving technology
2. [企业简称] Keeping up with the development trend of the industry, adopting cutting-edge new technologies and new processes to produce radar level measurement , and constantly improving and innovating existing products, the manufactured radar level has advantages in energy saving, environmental protection, clean water quality, intelligent safety, etc. Significantly improved, stable performance, reliable quality, you can buy and use with confidence.
3. We have a professional production management team. The team members insist on selecting high-quality and reasonably priced raw materials to manufacture radar level measurement , and strictly monitor every production link to ensure the lowest raw material loss rate and product scrap rate, which promotes radar level to have a relatively high High cost performance.
4. We insist on using cost-effective raw materials and using automated machinery and equipment to produce radar level measurement , which effectively reduces the cost of raw materials, labor costs and processing costs, and promotes the wholesale price of radar level to be at a relatively low level in the industry.

PRODUCT OVERVIEW

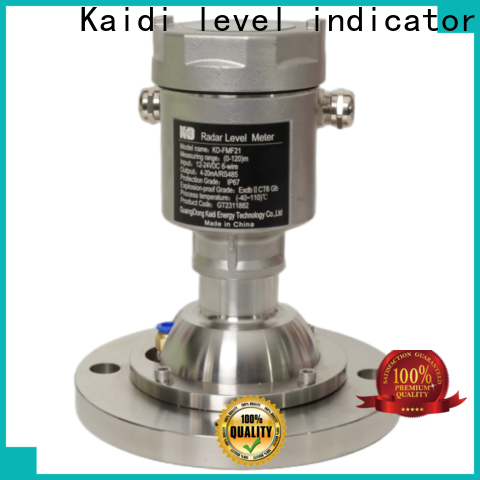

KD-FMF series sensors are 120G FM radar type level measuring instruments with a measuring distance of up to 150 meters. The antenna is further optimized for processing and the new fast microprocessor allows for higher speed signal analysis and processing, making the meter available for measurement of high temperature and high pressure and other environmental solids.

THE PRODUCT PRINCIPLE

The general principle of frequency modulated continuous wave radar level meter is that the radar emits electromagnetic waves at the top of the tank, and the electromagnetic waves are received by the radar after hitting the medium and reflected. Because the speed of light C and FM slope K are known, so the frequency difference δ f is estimated, and the distance R of the material surface at the radar installation position can be obtained, and then the height of the material level is obtained by subtracting the spatial distance from the radar to the material surface (referred to as the empty height) from the known total height of the tank.

PROTECTION GRADE

This instrument fully meets the requirements of protection class IP66/67.

 Please make sure that the cable sealing head is waterproof. As shown

How to ensure that the installation meets the requirements of IP67:

Please make sure that the sealing head is not damaged.

Please ensure that the cable is not damaged.

Please ensure that the cable used meets the requirements

 of the electrical connection specification.

Before entering the electrical connection, bend the cable

 downwards to ensure that water does not flow into the housing, see ①

Please tighten the cable sealing head, see ②

Please plug the unused electrical connections with blind plugs, see ③

PRODUCT SPECIFICATION

Measuring medium: solid

Measuring range: 0.3m~150m

Process connection: flange ≥ DN80

Process temperature: -40～110℃

Process pressure: -0.1～0.3MPa

Accuracy: ±5mm

Protection level: IP67

Frequency range: 123GHz

Power supply: two-wire (DC24V) / four-wire (DC12V~24V) / four-wire / six-wire (AC220V)

Explosion-proof grade: Exia ⅡC T6 Ga / Exd IIC T6 Gb

Housing: Aluminum / Plastic / Stainless steel

Signal output: 2-wire 4.... .20mA / HART protocol / 4-wire / 6-wire 4.... .20mA /RS485 Modbus

APPEARANCE OF SIZE

TECHNICAL PARAMETERS

INSTRUMENT LINEARITY

INSTALLATION REQUIREMENTS

When installing the instrument, avoid installing it above the inlet, and try to avoid various objects that affect the signal, such as stirring paddles, etc.

● Under extremely complex working conditions, the instrument can work normally without any obstacle in the area of 20cm radius centered on the radar installation point.





Company Features
1. Our manufacturing center is strategically located close to the airport and the harbor. These advantageous traffic conditions make sure our smooth supply of raw materials and quick delivery of our finished products.
2. Kaidi Sensors always endeavors to supply the best radar level measurement for customers. Get price!
