Kaidi Sensors new sump level switch manufacturers for industrial

I. Production Instruction

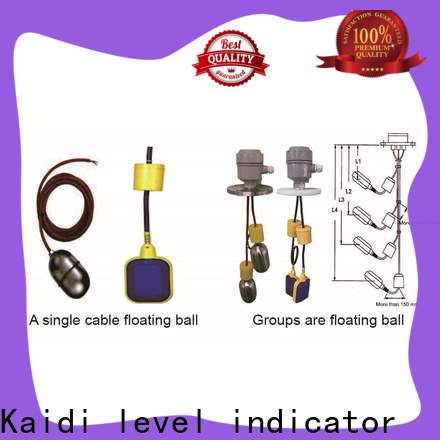

Cable ball float liquid level switch is designed by using the Technical parameters principle of gravity and buoyancy force, simple structure and reasonable. Mainly includes the floating body, set in the larg volume of float body micro switch and can switch are in a state of flux, driving mechanism, as well as the three core cable connected to the switch, a heavy hammer.

II. Working Principle

Cable ball float liquid level float inside contact switch is used to signal level indicator. Ball seal within a sliding circular and a bunch of reed switch contact, and the lead for the three ore rubber set soft cable. When the liquid when you arrive at a given location, floating ball fast flip, circular and make contact Floating ball of fixed position and range can be adjusted according to the need of action.

III. Product Features

1. Overall plastic molding import patented technology;

2. Simple and reasonable structure, stable and reliable pertormance;

3. It is very convenient to install and use, the mediation is convenient;

4. Can be used with all kinds of water pump, and is widely used in water supply and drainage and corrosion, the suspension liquid automatic control;

5. Still can make group form, convenient multipoint control;




IV. Technical Parameters

1. Contact capacity: 15A/250VAC

2. Working temperature: (PP)-10 ~ 80℃ (Metal)-10 ~ 180℃

3. Rated current: 10A

4. Convention thermal current: 15A

5. Switch life: 1 million times

6. Cable length: 3 m, 5 m and 10 m, different length can be customized

V. Selection Guide
