PRODUCT OVERVIEW

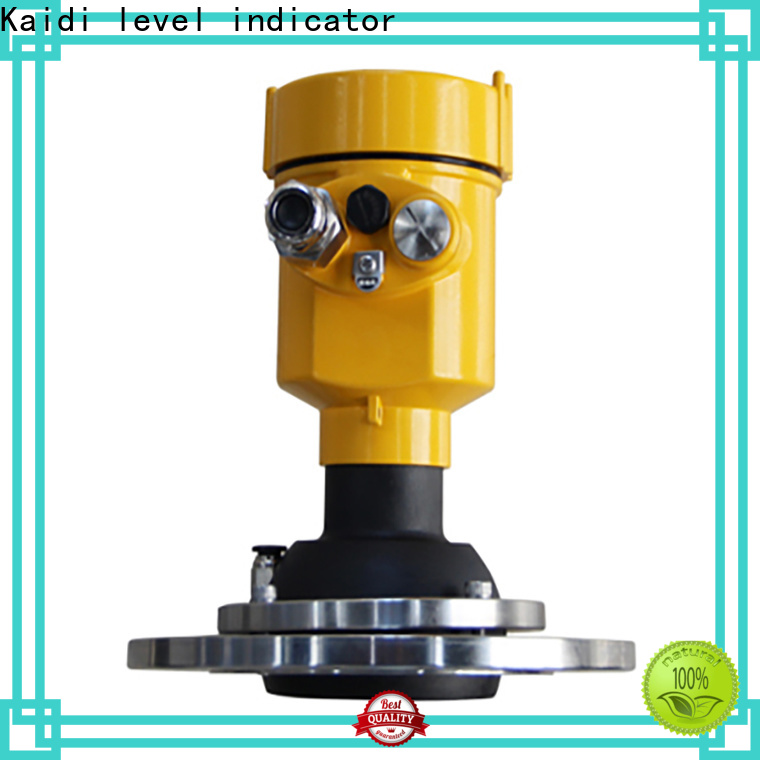

         The KDRD-FMW series sensors are 80G FM radar type level measuring instruments with a measuring distance of up to 150 meters. The antenna is further optimized and the new fast microprocessor allows for higher speed signal analysis and processing, making the instrument available for high temperature and high pressure and other environmental solids measurement.

THE PRODUCT PRINCIPLE

        The general principle of frequency modulated continuous wave radar level meter is that the radar emits electromagnetic waves at the top of the tank, and the electromagnetic waves are received by the radar after hitting the medium and reflected. Because the speed of light C and FM slope K are known, so the frequency difference δ f is estimated, and the distance R of the material surface at the radar installation position can be obtained, and then the height of the material level is obtained by subtracting the spatial distance from the radar to the material surface (referred to as the empty height) from the known total height of the tank.

PROTECTION GRADE

This instrument fully meets the requirements of protection class IP66/67. Please make sure that the cable sealing head is waterproof. As shown

How to ensure that the installation meets the requirements of IP67.

Please make sure that the sealing head is not damaged.

Please make sure that the cable is not damaged.

Please ensure that the cable used meets the requirements of the electrical connection specification.

Before entering the electrical connection, bend the cable downwards to ensure that water does not flow into the housing, see ①

Please tighten the cable sealing head, see ②

Please plug the unused electrical connections with blind plugs, see ③

PRODUCT SPECIFICATION

Measuring medium: solid

Measuring range: 0.1m~30m /0.3 ~150m

Process connection: Flange ≥ DN80

Process temperature: -40～80℃

Process pressure: -0.1 ~ 0.3 MPa

Accuracy: ±5mm

Protection level: IP67

Center frequency: 80GHz

Power supply: two-wire (DC24V) / four-wire (AC220V) / six-wire (DC12V~24V)

Housing: aluminum/plastic/stainless steel

Signal output: 2-wire 4.... .20mA / HART protocol / 4-wire 4.... .20mA /RS485 Modbus
