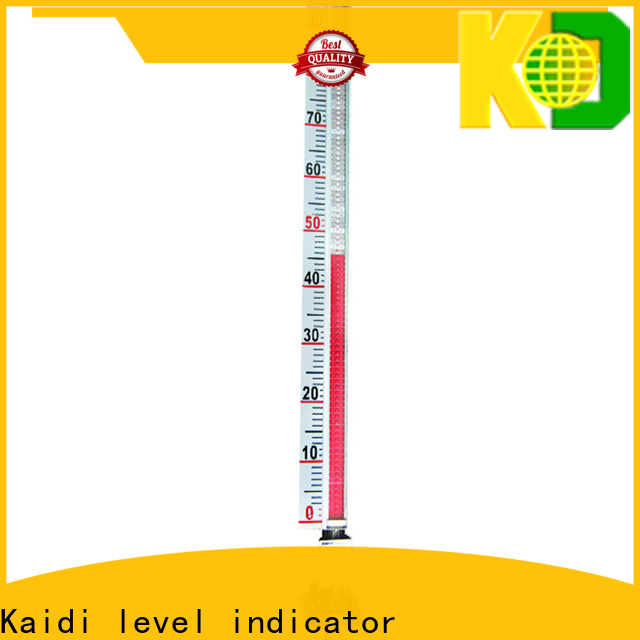

Kaidi Sensors best fuel storage tank level gauge suppliers for work

Company Advantages
1. In the design stage of Kaidi Sensors fuel storage tank level gauge , various design principles have been considered. They include foot biomechanics and physiological structure development (concerning physical stress and weight points). This product has the advantage of chemical resistance
2. The product can perfectly meet various application needs and has wide market potential. This product has the feature of explosion-proof
3. fuel storage tank level gauge to be manufactured in this way is good in . This product features very low no-load losses
4. The feature of fuel storage tank level gauge is , which is worthy of popularization in application. This product is notable for its strong overload capacity

WORKING PRINCIPLE

     The UZC jacketed magnetic level meter is jacketed and can control the temperature by pumping vacuum into the jacketed layer or by passing in a flowing medium, providing a reliable measurement solution for liquids that are suThe UZC jacketed magnetic level meter is jacketed and can control the temperature by pumping vacuum into the jacketed layer or by passing in a flowing medium, providing a reliable measurement solution for liquids that are susceptible to crystallisation or poor mobility at lower temperatures. The insulated jacket can be heated and insulated, or cooled by a cooling medium, and is suitable for liquid level measurement in chemical installations where antifreezing, insulation, high temperature and heating are required. Jackets are available in steam, circulating water and vacuum jacketed versions.

TECHNICAL SPECIFICATIONS

SELECTION TABLE

Model Description: UZ Kadee Magnetic Level Gauge

Mounting type: C Side mounted D Top mounted

Panel type: A1 -40-80°C room temperature Z1 -190~-20°C evacuated

A2 80-180°C medium temperature Z2 -20-180°C evacuated

A3 180-350°C high temperature Z3 180-350°C evacuated

A4 350-450°C ultra-high temperature E -40°C-450°C magnetically sensitive

Pressure Rating (MPa): 1.0 PN1.0 2.0 CL150LB

1.6 PN1.6 5.0 CL300LB

2.5 PN2.5 11.0 CL600LB

4 PN4.0 15.0 CL900LB

6.3 pn6.3 26.0 cl1500lb

10 pn10.0 42.0 cl2500lb

16 PN16.0

Range - Density: Range mm - Density g/cm³

Flange material: P 304 PF 304 fluorine lined

PL 316L C carbon steel

PP PP Ti Titanium

Flange bore: 15 Side mounted DN15 50 Top mounted DN50

20 Side DN 20 65 Top DN 65

25 Side DN 25 80 Top DN 80

32 Side DN32 100 Top DN100

40 Side DN 40 125 Top DN 125

50 Side DN50 150 Top DN150

65 Side DN 65 200 Top DN 200

80 Side mounted DN80 250 Top mounted DN250

Flange sealing surface Omitted Convex FM Concave

F Convex FF Full face

Body material P 304 P1 321

PL 316L P4 304L

PF 304 Fluorine lined Ti Titanium

PP PP

Insulation/Frost protection: Omitted None

C C type insulation pipe (recommended)

T1 Jacketed vacuum insulated

T2 Jacketed insulation

D1 40-90 thermostatic electric tracing

D2 120°C temperature controlled adjustable electric tracer

S1 Frost protection up to -40°C

S2 Frost protection from -40 to -20°C

Accessories: Y Remote level meter

K Alarm switch

EXTERNAL DIMENSIONS

Established in 2008, Guangdong KAIDI, it has transformed into a well-known brand. Kaidi's cooperation company has a modern workshop that fully meets GMP standards. It has certification of ISO22716 &ISO9001:2015, equipped with the first set of V M I TRIMIX imported from France in China. Also we have 24 canning and packaging production lines in cleanliness of 100000 grade workshop. The daily output can reach 200000 PCS. We are professional manufacturer of makeup and cosmetics OEM\ODM.We have a development team that has been serving the cosmetics industry for more than 20 years and has established a long-term cooperative R&D laboratory in Japan.Our inspection center is a laboratory established according to the ISO17025 standard. The inspection center has advanced imported testing instruments.We accept small batch orders and can provide proofing. We have multi-order and multi-spec production capacity, and a variety of cooperation options are available.Most of our products are sold from stock, the price of customized products is very competitive in the market, and we can complete the order delivery within 1 week.Joejovi's perfect cosmetics have obtained the global market recognition, and major buyers are welcome to visit and negotiate.

Company Features
1. As the leading supplier of fuel storage tank level gauge , Kaidi Sensors is honored to be responsible for the main business in this industry.
2. Our company has experienced and enormously talented product designers. They seek out inspiration from a range of sources (museums, books, online communities, whatever floats their boat!) Feeding the mind through these ways has given them perspective and enriched their work. They can create awesome products.
3. Creating a batch of see level gauge with international competitiveness is our drive to become a well-known supplier. Inquire online!
