Kaidi Sensors battery powered electromagnetic flow meter factory for work

Company Advantages
1. battery powered electromagnetic flow meter Manufactured in strict accordance with the technical standards of the battery, with high rated voltage and strong adaptability to high and low temperatures, it can maintain normal and stable power supply even in high temperature, humidity, and cold environments.
2. Guangdong Kaidi Energy Technology Co., Ltd. has established a good social image in development. This product has been certified under CE and RoHS
3. The products meet the quality standards of many countries and regions. It is able to quickly and effectively detect and respond to some types of input

Brief Introduction

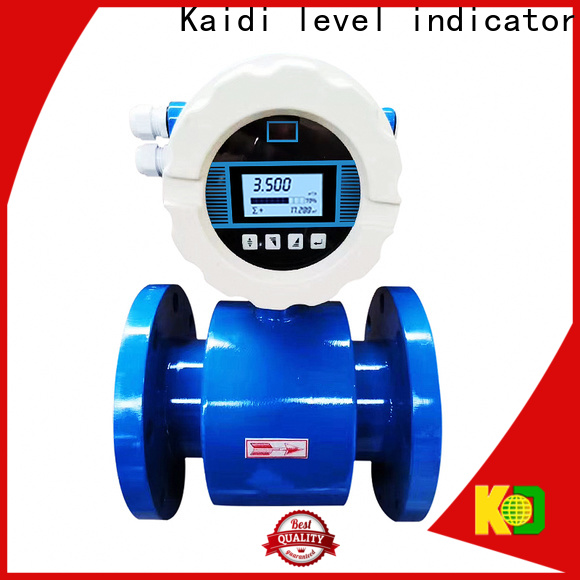

KFL-DG series electromagnetic flowmeters follow the Faraday law of electromagnetic induction. They can be used to accurately measure the flow rate of liquids which are electrical conducting, caustic, and mixed with liquids and solids. They are widely used throughout industries of petroleum, chemical engineering, pharmacology, papermaking, electric power, environmental protection and so forth. Their antiknock level is ExdIIBT4.the feature of Kaflon High Quality& Accuracy Low Cost Electromagnetic Flow meter is 1- zero pressure losing; 2- High accuracy, Stable performance, high level of anti-vibration and anti-jamming, wide measuring dimensions. 3- Corrosion protection, abrasion resistant;4.life long time.

Features

1)No Moving Parts, Virtually No Pressure Loss;

2)Corrosion protection, abrasion resistant;

3)High accuracy, Stable performance;

4)High level of anti-vibration and anti-jamming, wide measuring dimensions.

5)Multi-Output Interface4~20mA, Pulse, Alarm Outputs, RS-485 and Modbus Communication

Operating Principle

Faradays Laws of Induction form the basis for the electromagnetic flowmeters. It states that a voltage is induced in a conductor as it moves through a magnetic field.

This principle is applied to a conductive fluid which flows through a magnetic field generated perpendicular to the flow direction (see Schematic).

The voltage induced in the fluid is measured at two electrodes, installed diametrically opposed. This signal voltage U_E is proportional to the magnetic induction B, the electrode spacing D and the average flow velocity v. Noting that the magnetic induction B and the electrode spacing D are constants, a proportionality exists between the signal voltage UE and the average flow velocity v. The equation for the volume flow shows that the signal voltage UE is linear and proportional to the volume flowrate. The induced signal voltage is processed in the converter into scaled, analog and digital signals.

Specifications

- Size: DN10~DN600 (PTFE) ; DN40~DN1200 (NBR)

- Standard pressure: PN1.0MPa~40MPa;

- Accuracy: ±0.5%~±1.0%;

- Supply power: 85 to 250VAC (45 to 63Hz), 16 to 36VDC;

- Signal output: Current Output: 4~20mA;

- Frequency Output: 0~5000Hz with photoelectric isolation;

- Pulse Output: 0.001~1.000m3/cp, 0.001~1.000 Ltr/cp, 0.001~1.000USG/cp,0.001~1.000 UKG/cp;

- Alarm Output: Upper Alarm-ALMH, Lower Alarm-ALML with photoelectric isolation;

- Communications: RS-232 without galvanic isolation, RS-485 with Galvanic isolation;

- Ambient temperature: -10~60;

- Relative humidity: ≤85%RH;

- Atmospheric pressure: 86KPa~106KPa;

- Applicable Fluid: electrically conducting liquid;

- Fluid temperature:-25~ +65 and -25~ +180;

- Electrical conductivity: 5us/cm.

Company Features
1. The production process for battery powered electromagnetic flow meter is advanced.
2. Guangdong Kaidi Energy Technology Co., Ltd. has high demand on international sales to provide their best service for customers. Contact us!
