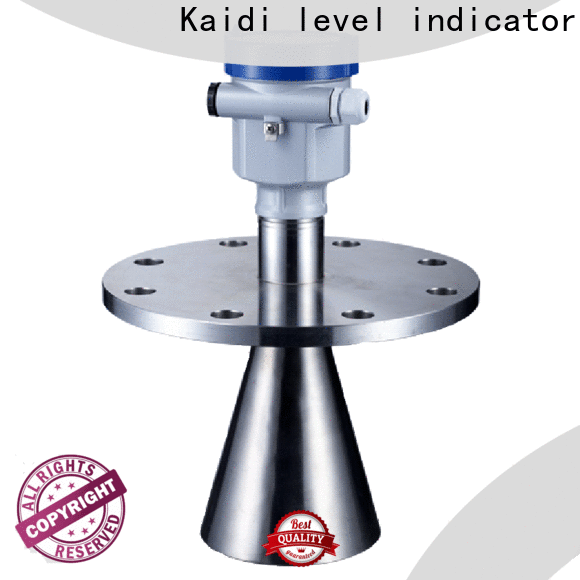

KAIDI radar water level sensor for business for detecting1

Company Advantages
1. During the production, KAIDI is required to pass the quality tests. It has to be tested under the designated testing equipment which is specially used in pool accessories testing. This product has the advantage of high accuracy
2. It will remain in place when worn. The interaction of gravity and fabric friction characteristics will not shift this garment over the body as the wearer moves. Since it is maintenance-free, this product significantly helps save operation costs
3. The product is not likely to cause injury. All its components and the body have been sanded properly to round all sharp edges or eliminate any burrs. This product has the ability to accurately convert a physical parameter into a signal
4. This product can maintain a clean surface. Its fabrics are highly anti-static, which does not allow the dust to adhere to the surface. Its shape can be customized according to needs
5. The product is highly hard-wearing. It is made of abrasion-resistant materials that enable it to withstand harsh wearing conditions. It is suitable for extreme pressure conditions

sign: 　 Horn antenna with small beam angle.

Should be used: 　 liquid measurement or short-range solid measurement. Can adapt to the environment with complex process conditions.

Maximum range: 　30m

Measurement accuracy: 　±10mm

Process connection: 　 flange 316L

Antenna material: 　 stainless steel 316L/PTFE

Process temperature: 　-40…200°C

Process pressure: 　-1.0…40bar

Frequency range: 　6GHz

Signal output: 　Two-wire system/four-wire system 4…20mA/HART



Detailed introduction:

GDRD53

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Exia IIC T6) (only aluminum housing is available)

C Intrinsically safe type + marine license (Exia IIC T6) (only stainless steel shell is available)

G Intrinsically safe type + flameproof type (Exd [ia]ia IIC T6) (see "Note" below for optional housing)

Antenna type/material

C Horn antenna 50/stainless steel 316L (only for waveguide installation)*

D Horn antenna 80/stainless steel 316L (only for waveguide installation)*

E Horn antenna 100/Stainless steel 316L

F Horn antenna 150/Stainless steel 316L

G Horn antenna 200/Stainless steel 316L

Antenna extension tube

A None

B 200mm

C 500mm

D 1000mm

E 2000mm

X Special customization

Process connection

FA flange DN50 PN1.6 stainless steel 316L (GB/T9119-2000)

FB flange DN80 PN1.6 stainless steel 316L (GB/T9119-2000)

FC flange DN100 PN1.6 stainless steel 316L (GB/T9119-2000)

FD flange DN150 PN1.6 stainless steel 316L (GB/T9119-2000)

FE flange DN200 PN1.6 stainless steel 316L (GB/T9119-2000)

YP Special

Sealing/process temperature

2 Viton/-40～+130℃

3 Kalrez/-20～+130℃

4 Viton/-40～+200℃with heat sink (selected when the process temperature is greater than 100℃)

5 Kalrez/-20～+200℃with heat sink (selected when the process temperature is greater than 100℃)

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½NPT

On-site display/programming

A belt

X without

Purge

A belt

X without

Note: Intrinsically safe + marine license (Exia IIC T6) is limited to "A" or "B" electronic components and "G" type enclosure; intrinsically safe + flameproof type (Exd [ia]ia IIC T6) is limited to use "D" shell.

Company Features
1. KAIDI ​​is China's most famous radar water level sensor brand. The KAIDI factory is advanced in science and technology.
2. We have purchased a wide range of brand-new facilities from the best manufacturers in the industry so that we always have the latest and most cost-efficient technology available.
3. Guangdong Kaidi Energy Technology Co., Ltd. has excellent R&D capabilities. KAIDI will invest a lot of money in production magnetrol guided wave radar level transmitter . Please contact.
