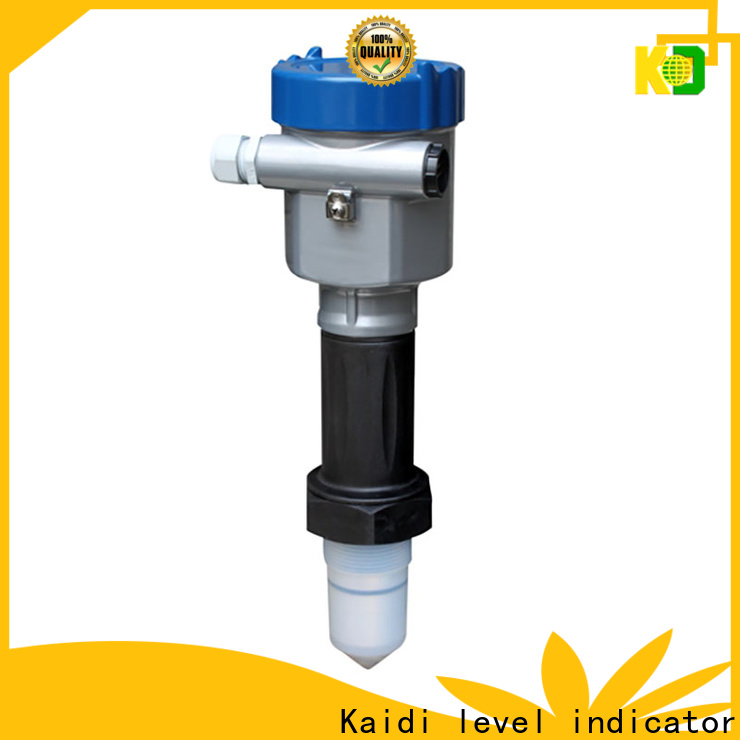

KAIDI radar water level sensor company for industrial

Company Advantages
1. Guangdong Kaidi Energy Technology Co., Ltd. can offer customers all kinds of radar water level sensor with different sizes and colors. It generates only little magnetic interference
2. Thanks to its excellent breathability, this product will provide a comfortable foot environment without causing skin problems such as blisters, rashes, and infections. This product has the advantage of chemical resistance
3. The product is in tune with set quality standards in many regions. This product has been certified under CE and RoHS

Feature: 　 Fully sealed PTFE antenna is corrosion-resistant and protected against slight condensation.

Should be used: 　 widely used in various corrosive occasions such as various acid and alkali storage tanks. When installed on a small tank, the wave is smaller than 6G

　　　　　　 The beam angle determines that by installing appropriate short tubes, a smaller actual measurement dead zone can be obtained.

Maximum range: 　10m

Measurement accuracy: 　±5mm

Antenna structure: 　 fully sealed PTFE material

Process temperature: 　(-40～130) ℃

Process pressure: 　(-0.1～0.3)MPa

Frequency range: 　26GHz

Signal output: 　(4～20)mA/HART

Electric source: 　Two-wire system/four-wire system







Detailed introduction:

GDRD55

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Ex ia IIC T1～T6)

Antenna type/material/process temperature

B (R type) sealed horn/PTFE/(-40～130)℃

Process connection/material

GP (F) thread G1½A

NP (F) thread 1½ NPT

FA (L) flange DN50/PTFE

FB (L) flange D80/PTFE

FX special customization

Guide tube matching

A Not optional

B Special customization

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½ NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe type (Exia IIC T1～T6) can only use "B" electronic components and "A" "G" type shell

  The standard flange size refers to GB/T9119-2000 PN1.6MPa size, and the thickness is 15.

Company Features
1. Guangdong Kaidi Energy Technology Co., Ltd. leads in the development and production of advanced technologies for radar water level sensor . Guangdong Kaidi Energy Technology Co., Ltd. has been a competitive company to produce high precision radar level meter with high performance.
2. Guangdong Kaidi Energy Technology Co., Ltd. has a team of skilled and experienced personnel.
3. Guangdong Kaidi Energy Technology Co., Ltd. has strong technical force and product development capability. We are devoted to playing an active role in protecting the environment. We sincerely cooperate with the environmental organizations or groups to partake in activities such as lowing carbon footprint during production and minimizing energy consumption.
