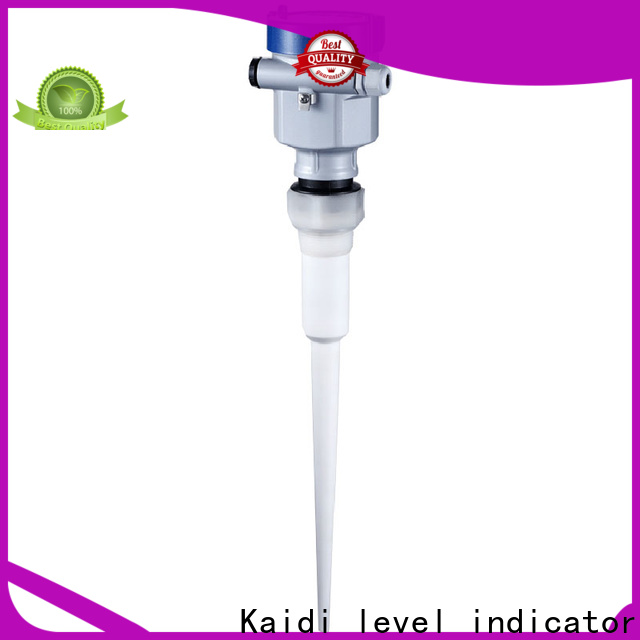

KAIDI radar level sensors suppliers for detecting

features: 　 Rod antennas made of PP or PTFE have a certain degree of corrosion resistance.

Should be used: 　 liquid measurement under simple process conditions.

Maximum range: 　30m

Measurement accuracy: 　±10mm

Process connection: 　G1½A

Antenna material: 　PP/PTFE

Process temperature: 　-40…120°C

Process pressure: 　-1.0…3bar

Frequency range: 　6GHz　　　　　　

Signal output: 　two-wire system/four-wire system 4…20mA/HART　　　　

Detailed introduction:

GDRD51

license

P Standard type (non-explosion-proof)

I Intrinsically safe type (Exia IIC T6)

C Intrinsically safe type + marine license (Exia IIC T6)

G Intrinsically safe type + flameproof type (Exd [ia]ia IIC T6)

Antenna type/material/process temperature

A Plastic rod/PP/-40～+120 ℃

B Plastic rod/PTFE/-40～+120 ℃

Container takeover length

A 50mm

B 100mm

C 150mm

D 200mm

E 250mm

F 300mm

X Special customization

Process connection/material

GP thread G1½A

NP thread 1½NPT

YP Special

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe + marine license (Exia IIC T6) is limited to "A" or "B" electronic components and "G" type enclosure; intrinsically safe + flameproof type (Exd [ia]ia IIC T6) is limited to use "D" shell.
