KAIDI radar level measurement company for work

Company Advantages
1. The design of KAIDI radar level measurement is completed by incorporating a sophisticated 3D modeling manufacturing system which allows our designers to create an amazing product in short time periods. This product can be used in many different industries such as food & beverage, water, energy, pharmaceutical, etc
2. Quantitative market research have been conducted at all phases of radar level measurement design process. This product is not susceptible to cracks
3. This product is safe. It is constructed in line with consumer safety standards and has been checked in terms of harmful substances such as formaldehyde and azo colorants. This product has the ability to accurately convert a physical parameter into a signal

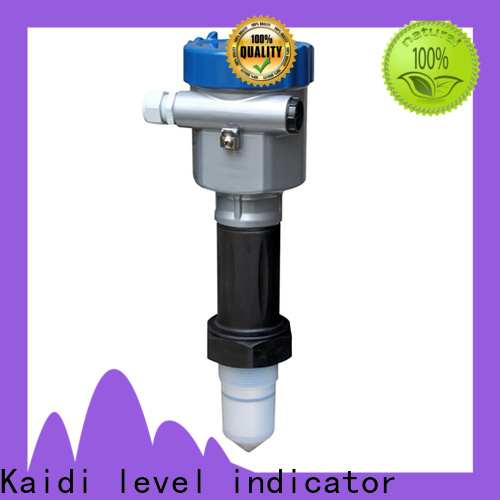

Feature: 　 Fully sealed PTFE antenna is corrosion-resistant and protected against slight condensation.

Should be used: 　 widely used in various corrosive occasions such as various acid and alkali storage tanks. When installed on a small tank, the wave is smaller than 6G

　　　　　　 The beam angle determines that by installing appropriate short tubes, a smaller actual measurement dead zone can be obtained.

Maximum range: 　10m

Measurement accuracy: 　±5mm

Antenna structure: 　 fully sealed PTFE material

Process temperature: 　(-40～130) ℃

Process pressure: 　(-0.1～0.3)MPa

Frequency range: 　26GHz

Signal output: 　(4～20)mA/HART

Electric source: 　Two-wire system/four-wire system







Detailed introduction:

GDRD55

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Ex ia IIC T1～T6)

Antenna type/material/process temperature

B (R type) sealed horn/PTFE/(-40～130)℃

Process connection/material

GP (F) thread G1½A

NP (F) thread 1½ NPT

FA (L) flange DN50/PTFE

FB (L) flange D80/PTFE

FX special customization

Guide tube matching

A Not optional

B Special customization

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½ NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe type (Exia IIC T1～T6) can only use "B" electronic components and "A" "G" type shell

  The standard flange size refers to GB/T9119-2000 PN1.6MPa size, and the thickness is 15.

Company Features
1. Guangdong Kaidi Energy Technology Co., Ltd. has accumulated a good reputation and image in radar level measurement market.
2. Our factory is located in a convenient place with convenient transportation and developed logistics. It also enjoys a wealth of raw material resources. All these advantages allow us to conduct a smooth production.
3. Our spirit of pursuing excellent quality and best service makes our guided wave radar level transmitter popular and win a high reputation among our customers. Inquire!
