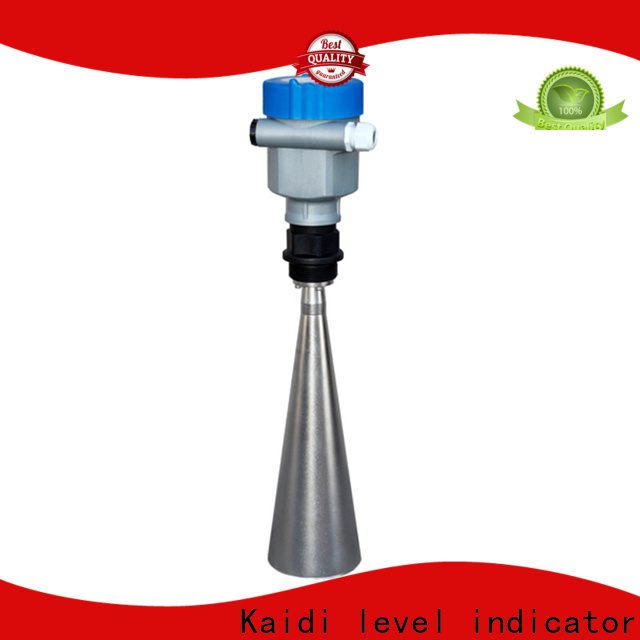

top radar level guage suppliers for industrial

Features: high accuracy; strong anti-interference ability, not subject to temperature
　　　　　 Influence of degree, humidity and wind; installation, adjustment
　　　　　 Trial and easy to use; low power consumption.
Should be used: applicable to lakes, rivers, reservoirs, open channels,
　　　　　Tide water level and other water level monitoring.

Maximum range: 　70m
Measurement accuracy: 　±3mm
Antenna material: 　 stainless steel 316L horn/PTFE vibrator
Antenna structure: 　 pointed cone vibrator
Frequency range: 　26GHz
Signal output: 　RS485/MODBUS protocol
Power source: 　 (6~26) V DC
Detailed introduction:
GDRD56
Permit
P Standard type (range 30m)
L Intrinsically safe type (range 70m)
Antenna type/material
B (T type) horn antenna Φ48mm/stainless steel 316L
C (T type) horn antenna Φ78mm/stainless steel 316L
H (T type) horn antenna Φ98mm/stainless steel 316L
X Special customization
Process connection/material
GB thread G1½A/PP
GX special customization
Flange matching/material
F0 not selected
FA DN50/PP
GA DN80/PP
HA DN100/PP
FX special customization
Sealing/process temperature
2 Viton(-60～150)℃
Electronic components
R RS485/MODBUS protocol
X Special customization
Enclosure rating
A Aluminum/IP67
B Plastic/IP66
D Aluminum two-chamber/IP67
Cable entry
M M20x1.5
N ½NPT
On-site display/programming
A belt
X without
Note: RS485 interface: baud rate 9.6KBPS, data format 8N1
Related MODBUS protocol
