latest pressure level transmitter for business for industrial

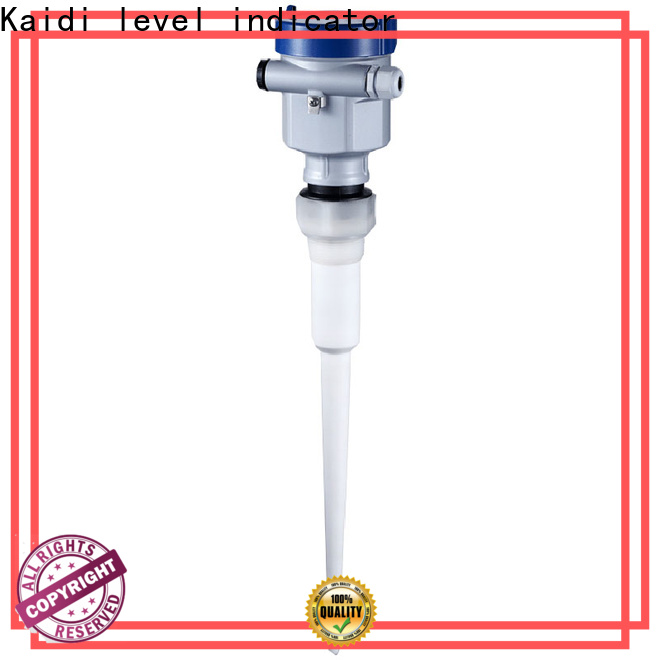

features: 　 Rod antennas made of PP or PTFE have a certain degree of corrosion resistance.

Should be used: 　 liquid measurement under simple process conditions.

Maximum range: 　30m

Measurement accuracy: 　±10mm

Process connection: 　G1½A

Antenna material: 　PP/PTFE

Process temperature: 　-40…120°C

Process pressure: 　-1.0…3bar

Frequency range: 　6GHz　　　　　　

Signal output: 　two-wire system/four-wire system 4…20mA/HART　　　　

Detailed introduction:

GDRD51

license

P Standard type (non-explosion-proof)

I Intrinsically safe type (Exia IIC T6)

C Intrinsically safe type + marine license (Exia IIC T6)

G Intrinsically safe type + flameproof type (Exd [ia]ia IIC T6)

Antenna type/material/process temperature

A Plastic rod/PP/-40～+120 ℃

B Plastic rod/PTFE/-40～+120 ℃

Container takeover length

A 50mm

B 100mm

C 150mm

D 200mm

E 250mm

F 300mm

X Special customization

Process connection/material

GP thread G1½A

NP thread 1½NPT

YP Special

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe + marine license (Exia IIC T6) is limited to "A" or "B" electronic components and "G" type enclosure; intrinsically safe + flameproof type (Exd [ia]ia IIC T6) is limited to use "D" shell.

b******p

The design of Kaidi Sensors pressure level transmitter involves sophisticated electric knowledge. Its circuit, including main circuit, pilot circuit, and signal circuit are designed with as less as possible connecting wires. The product is not impervious to fade and yellowing

x******u

Strict quality inspection on Kaidi Sensors pressure level transmitter will be conducted. It is required to pass the quality standards such as RoHS, REACH, MSDS in the battery industry. It will not cause any infection and microbial contamination

v******d

Kaidi Sensors pressure level transmitter is made up of various layers. They include mattress panel, high-density foam layer, felt mats, coil spring foundation, mattress pad, etc. The composition varies according to the user’s preferences. The product can effectively stand up to the radiation

z******f

Kaidi Sensors pressure level transmitter has been tested according to electrical regulations. It is tested in terms of radiated emissions, radiated susceptibility, ESD (electrostatic discharge), electrical transients, etc. The product features bending resistance and is not easy to break off

k******t

Kaidi Sensors pressure level transmitter has passed the tests required in the industry. They include a hipot test, leakage current test, insulation resistance test, etc. The product can effectively stand up to the radiation

n******f

pressure level transmitter Selected high-quality materials not only have the characteristics of waterproof and high temperature resistance, but also have the advantages of wear resistance, pressure resistance, and drop resistance. They are durable and have a longer service life.
