Company Advantages
1. The manufacture of KAIDI is of professionalism. The multistage production process is adopted. Its design, production, assembly, and testing will be controlled by separate teams. There is little variation between its measuring values
2. The best way to get the comfort and support to make the most of eight hours of sleep every day would be to try this mattress. This product has the advantage of chemical resistance
3. Its prototype is continually tested against a wide variety of key performance criteria before going into production. It is also tested for conformity with a series of international standards. This product is notable for its strong overload capacity
4. The product is highly praised and has a long service life. This product features very low no-load losses

Introduction

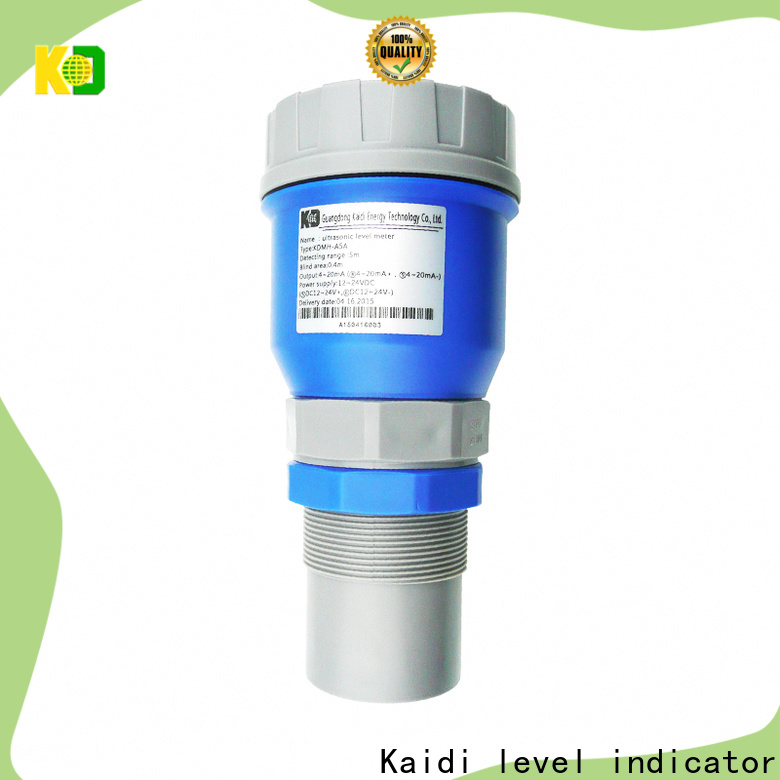

It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics, is small and firm with ABS probe. Therefore, it is applicable for various fields concerning level measuring and monitoring. According to the practical situation, it also can add other modules, such as RS 485, current output; it can be match with PLC better.

Characteristics

• DC12-24V wide work voltage

• Backup and recovery parameter set

• Free adjustment of the range of analog output

• Set a filter value to remove

• Custom serial port data format

• Optional increment/difference distance measurement to measure air space or liquid level

• 1-15 transmitted pulse intensity depending on working conditions

• More choices depend on your requirement, as bellowing:

1. 3 NPN output

2. 2 relay output

3. Voltage output

4. RS485output connect with PC

5. Explosion-proof



III. Specifications

Range: 5. 8. 10. 12. 15m

Blind zone: ＜0.4-0.5m（different for range）

Measure error:  0.3%F.S

Display:  OLED

Display resolution: 1mm

Frequency:: 20～350KHz

Power: 12-24VDC

Power consumption: <1.5W

Output (optional):

4～20mA RL>600Ω（standard）

              1～5V\1～10V

              RS485

2 NPN

              2 relays (AC: 5A 250V DC: 10A 24V)

Material: ABS

Dimension: Φ92mm×198mm×M60

Electrical interface: M20X1.5

Installation: M60X2 or ￠61MM

Operating surroundings: normal temperature, normal pressure

Protection degree: IP65 (others optional)

Company Features
1. Guangdong Kaidi Energy Technology Co., Ltd. is the main producer of at home and abroad. Our technology takes the lead in the industry of level ultrasonic .
2. We adopt world-advanced technology when manufacturing ultrasonic level sensor .
3. We put great emphasis on technology of rosemount ultrasonic level transmitter . Our company recognizes increasingly serious environmental issues as a topmost priority. So we integrate circular thinking into product and process design to facilitate sustainable resources usage and foster profitable circular business.
