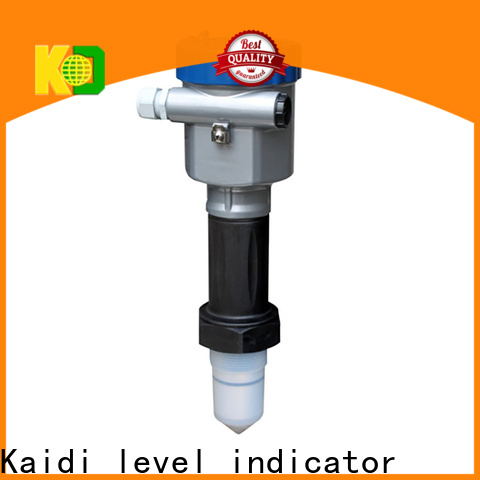

KAIDI level transmitter for water tank supply for transportation

Company Advantages
1. KAIDI is manufactured under strict control. It will be rigorously scrutinized ranging from the materials feeding, CNC cutting, polishing, to installation in order to meet the highest professional ambry standards. This product stands out for its high sensitivity
2. Guangdong Kaidi Energy Technology Co., Ltd.'s great strength has come from the cultivation of its brands. Its power ratings can be customized e based on requests
3. Because it is not wrinkle-prone, this product is often an easier option to care for. And it can be machine-washed to fit a busy lifestyle. This product has the ability to accurately convert a physical parameter into a signal

Feature: 　 Fully sealed PTFE antenna is corrosion-resistant and protected against slight condensation.

Should be used: 　 widely used in various corrosive occasions such as various acid and alkali storage tanks. When installed on a small tank, the wave is smaller than 6G

　　　　　　 The beam angle determines that by installing appropriate short tubes, a smaller actual measurement dead zone can be obtained.

Maximum range: 　10m

Measurement accuracy: 　±5mm

Antenna structure: 　 fully sealed PTFE material

Process temperature: 　(-40～130) ℃

Process pressure: 　(-0.1～0.3)MPa

Frequency range: 　26GHz

Signal output: 　(4～20)mA/HART

Electric source: 　Two-wire system/four-wire system







Detailed introduction:

GDRD55

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Ex ia IIC T1～T6)

Antenna type/material/process temperature

B (R type) sealed horn/PTFE/(-40～130)℃

Process connection/material

GP (F) thread G1½A

NP (F) thread 1½ NPT

FA (L) flange DN50/PTFE

FB (L) flange D80/PTFE

FX special customization

Guide tube matching

A Not optional

B Special customization

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½ NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe type (Exia IIC T1～T6) can only use "B" electronic components and "A" "G" type shell

  The standard flange size refers to GB/T9119-2000 PN1.6MPa size, and the thickness is 15.

Company Features
1. Guangdong Kaidi Energy Technology Co., Ltd. has exported its level transmitter for water tank to many countries, including . Guangdong Kaidi Energy Technology Co., Ltd. has an export production base.
2. Guangdong Kaidi Energy Technology Co., Ltd. owns a professional technical group with rich experience in rosemount level transmitter industry.
3. rosemount ultrasonic level transmitter enhances the effect that helps reduce and improves protection from other damages. We aim to be a reliable and helpful partner that exceeds expectations and to manufacture products that meet the quality expectations of our clients all over the world.
