KAIDI level transmitter for water tank manufacturers for industrial1

Company Advantages
1. Complete models of level transmitter for water tank are available with high quality. This product has a high level of insulation
2. Guangdong Kaidi Energy Technology Co., Ltd.'s perfect quality control system ensures that customers' needs are fully met. The function of this product can be customized to meet the needs of liquids, granules, slurries, solids, and powder
3. This product features wear comfort. It goes through laboratory testing, analyzing and predicting of the comfort properties of textiles to achieve this characteristic. This product has been certified under CE and RoHS
4. The product has dimensional stability. It has been inspected size changes after washed and dried, which proves it keeps the original size perfectly. There is little variation between its measuring values
5. This product contains no toxic elements, such as the aromatic amine. It has passed the standard of GB 18401-2003 for the safety of textile products. Due to its corrosive coatings, this product is highly rust-proof

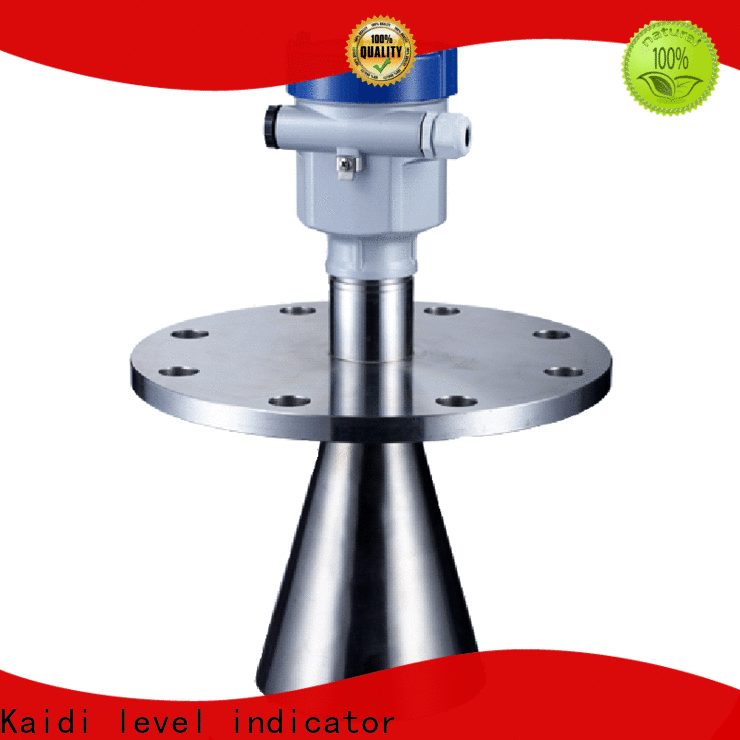

sign: 　 Horn antenna with small beam angle.

Should be used: 　 liquid measurement or short-range solid measurement. Can adapt to the environment with complex process conditions.

Maximum range: 　30m

Measurement accuracy: 　±10mm

Process connection: 　 flange 316L

Antenna material: 　 stainless steel 316L/PTFE

Process temperature: 　-40…200°C

Process pressure: 　-1.0…40bar

Frequency range: 　6GHz

Signal output: 　Two-wire system/four-wire system 4…20mA/HART



Detailed introduction:

GDRD53

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Exia IIC T6) (only aluminum housing is available)

C Intrinsically safe type + marine license (Exia IIC T6) (only stainless steel shell is available)

G Intrinsically safe type + flameproof type (Exd [ia]ia IIC T6) (see "Note" below for optional housing)

Antenna type/material

C Horn antenna 50/stainless steel 316L (only for waveguide installation)*

D Horn antenna 80/stainless steel 316L (only for waveguide installation)*

E Horn antenna 100/Stainless steel 316L

F Horn antenna 150/Stainless steel 316L

G Horn antenna 200/Stainless steel 316L

Antenna extension tube

A None

B 200mm

C 500mm

D 1000mm

E 2000mm

X Special customization

Process connection

FA flange DN50 PN1.6 stainless steel 316L (GB/T9119-2000)

FB flange DN80 PN1.6 stainless steel 316L (GB/T9119-2000)

FC flange DN100 PN1.6 stainless steel 316L (GB/T9119-2000)

FD flange DN150 PN1.6 stainless steel 316L (GB/T9119-2000)

FE flange DN200 PN1.6 stainless steel 316L (GB/T9119-2000)

YP Special

Sealing/process temperature

2 Viton/-40～+130℃

3 Kalrez/-20～+130℃

4 Viton/-40～+200℃with heat sink (selected when the process temperature is greater than 100℃)

5 Kalrez/-20～+200℃with heat sink (selected when the process temperature is greater than 100℃)

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½NPT

On-site display/programming

A belt

X without

Purge

A belt

X without

Note: Intrinsically safe + marine license (Exia IIC T6) is limited to "A" or "B" electronic components and "G" type enclosure; intrinsically safe + flameproof type (Exd [ia]ia IIC T6) is limited to use "D" shell.

Company Features
1. Guangdong Kaidi Energy Technology Co., Ltd. is highly praised for the ability in R&D and manufacturing of . We have built our reputation by quality.
2. Our quality is our company name card in level transmitter for water tank industry, so we will do it best.
3. Guangdong Kaidi Energy Technology Co., Ltd. always put the needs of customers in the first place. Ask!
