latest water tank level indicator factory for transportation

1.Product Introduction

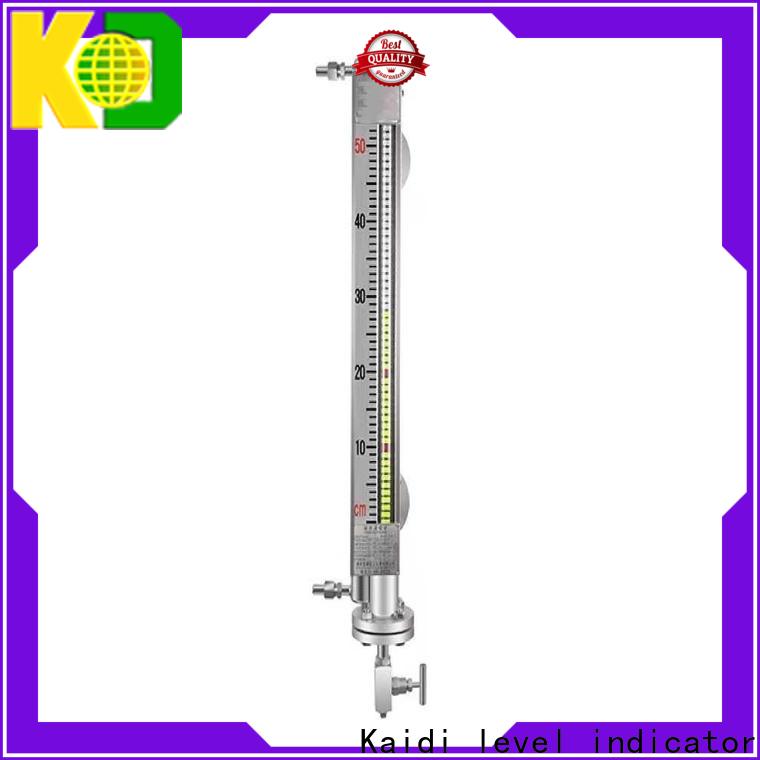

KAIDI latest water tank level indicator factory for transportation-1

The company independently designed and developed a special magnetic liquid level gauge for gasification prevention for liquid gas, liquid ammonia, propylene, propane and other easily gasified measuring media. The main cavity of the liquid level gauge is designed with a bubble elimination mechanism, which is effective It eliminates the false liquid level display caused by the floating ball jumping up and down caused by bubbles, and can ensure that the normal up and down movement of the floating ball is not affected.

2.Technical Parameter

KAIDI latest water tank level indicator factory for transportation-2

3.Selection table

Model	illustrate
UZ	Subpeak Magnetic Level Gauge
Type of installation	C	Side loading	D	Top loading
Panel type	A1	-40-80℃ normal temperature	Z1	-190~-20℃ Vacuum
	A2	80-180℃ medium temperature	Z2	-20-180℃ Vacuum
	A3	180-350℃ high temperature	Z3	Vacuum at 180-350℃
	A4	350-450℃ ultra high temperature	E	-40℃-450℃ magnetic sensitivity
Pressure Rating (MPa)	1	PN1.0	2	CL150LB
	1.6	PN1.6	5	CL300LB
	2.5	PN2.5	11	CL600LB
	4	PN4.0	15	CL900LB
	6.3	PN6.3	26	CL1500LB
	10	PN10.0	42	CL2500LB
	16	PN16.0
Range-Density	Range mm-density g/cm³
Flange Material	P	304	PF	304 lined with fluorine
	PL	316L	C	Carbon steel
	PP	PP	Ti	titanium
Flange Diameter	15	Side mounted DN15	50	Top loading DN50
	20	Side mounted DN20	65	Top loading DN65
	25	Side mounted DN25	80	Top loading DN80
	32	Side mounted DN32	100	Top loading DN100
	40	Side mounted DN40	125	Top loading DN125
	50	Side mounted DN50	150	Top loading DN150
	65	Side mounted DN65	200	Top loading DN200
	80	Side mounted DN80	250	Top loading DN250
Flange sealing surface	Omit	Raised face	FM	Concave
Flange sealing surface	F	Convex	FF	Full plane
Tube material	P	304	P1	321
	PL	316L	P4	304L
	PF	304 lined with fluorine	Ti	titanium
	PP	PP
Insulation/anti-frost	Omit	No
	C	Type C insulation pipe (recommended)
	T1	Set vacuum insulation
	T2	Jacket insulation
	D1	40-90 constant temperature electric heating
	D2	120°C temperature control adjustable electric heating
	S1	Anti-frost below -40°C
	S2	-40~-20℃ anti-frost
Accessories	Y	Remote transmission level gauge
Accessories	K	Alarm switch

4.Dimensions

KAIDI latest water tank level indicator factory for transportation-3

h******f

The company has many years of production and manufacturing experience, not only has professional production and quality inspection equipment, but also masters advanced manufacturing technology and technology, has established a rigorous and scientific quality management system, and produces water tank level indicator with reliable performance and excellent quality , far exceeding peer products.

t******e

Guangdong Kaidi Energy Technology Co., Ltd. has a quality inspection team composed of professionals who specialize in testing the quality and quality of water tank level indicator to ensure that water tank level indicator is of high quality and excellent quality.

t******s

Guangdong Kaidi Energy Technology Co., Ltd. Actively study and introduce world-class management theories, establish a comprehensive quality management system, and implement the concept of product quality control throughout the entire process of product design, production, inspection, and use, and carry out quality control with full participation, It is better to ensure that the water tank level indicator produced is always of consistent quality and excellent quality.

c******e

We pay great attention to product quality, adhere to the introduction of scientific production concepts, adopt professional production equipment and use advanced production technology to manufacturewater tank level indicator, and have established a complete set of quality inspection procedures to strictly test each batch of products leaving the factory to ensure that all Products are in line with national quality inspection standards.

r******u

Guangdong Kaidi Energy Technology Co., Ltd. Strict checks are carried out during the supply of raw materials and the process of product production to ensure that the water tank level indicator produced are of reliable quality, and the appearance, function, and quality of the product are carefully inspected before the goods are sent out to ensure that the products sold The products are consistent with the product descriptions displayed by us.

t******i

Many customers have given us the positive feedback of the product regarding its durability, overall performance, economic benefits. The product can ensure a high filtration rate
