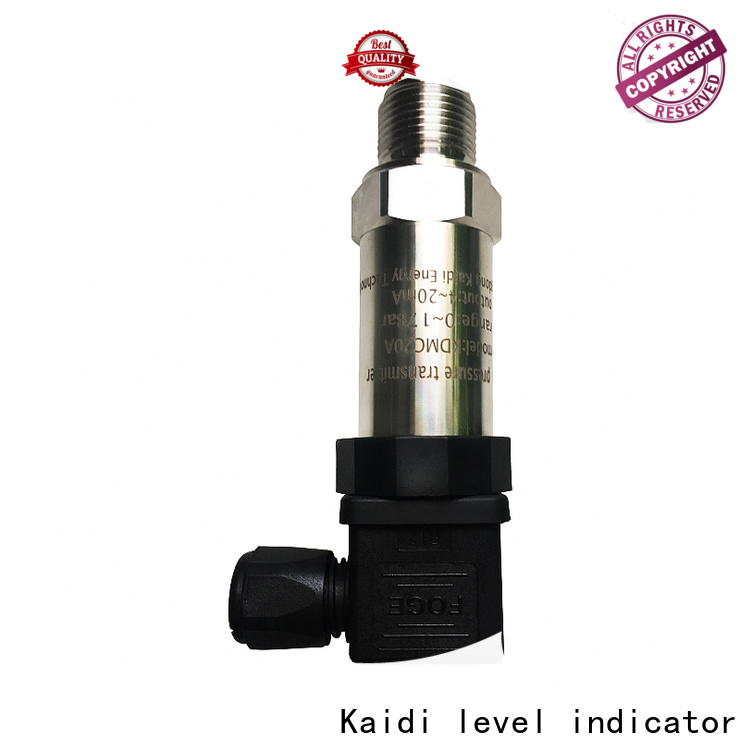

latest gas pressure transducer manufacturers for transportation

Brief introduction

A pressure transducer, often called a pressure transmitter, is a transducer that converts pressure into an analog electrical signal. Although there are various types of pressure transducers, one of the most common is the strain-gage base transducer.

The conversion of pressure into an electrical signal is achieved by the physical deformation of strain gages which are bonded into the diaphragm of the pressure transducer and wired into a wheatstone bridge configuration. Pressure applied to the pressure transducer produces a deflection of the diaphragm which introduces strain to the gages. The strain will produce an electrical resistance change proportional to the pressure.

Typical Specifications

Medium	Gas, liquid, oil
Measuring range	Gauge pressure(G)---Max(0 ~ 60)MPa, Min(0 ~ 0.5)KPa
	Absolute Pressure(A)---Max(0 ~ 60)MPa, min (0 ~ 5)KPa
	Negative pressure(B)--- Max (-100KPa ~ 60)MPa, Min(-0.2 ~ 0.2 )KPa
Accuracy	0.25, 0.5
Overload capability	2-3 times of Measuring range
Long-term stability	<0.2%FS/yr, <0.5%FS/yr
Power supply	15 ~ 36 VDC(rated 24VDC)
Output	(4 ~ 20)mA (2/3/4 line), (0 ~ 10/20)mA, (0 ~ 5)V, (1 ~ 5)V, (0 ~ 10)V
Working temperature	-40 ~ 80°C Temperature Compensation：-20 ~ 70 °C
Process connection	M20×1.5or customized
Weather proof	IP65
Optional radiator	Up to 300°C

a******n

. Since its establishment, the company has always adhered to the business tenet of "establishing business with science and technology, standardizing management, seeking efficiency, and keeping promises". We sincerely welcome customers from all over the world and from home and abroad to negotiate and order.

h******b

gas pressure transducer High-quality materials are used, combined with advanced technology for processing, so that all aspects such as quality and performance can reach national standards.

t******c

gas pressure transducer All are carefully selected high-quality materials, made of advanced production technology and exquisite manufacturing process, with reasonable structure, excellent performance, fine workmanship and high quality.

p******s

Our gas pressure transducer are all selected high-quality materials and made by fine processing, with excellent workmanship, excellent performance, beautiful appearance and high quality.

l******q

gas pressure transducer Produce in strict accordance with the standards stipulated by the company and the requirements of the market to ensure that it can pass the inspection of relevant state departments and meet the national quality standards. It is a high-quality product with guaranteed quality.

s******j

The product consumes little energy when working. It can transform little physical or electrical energy into enormous mechanical energy to finish its tasks. The core finishing can be the plastic case or metal case
