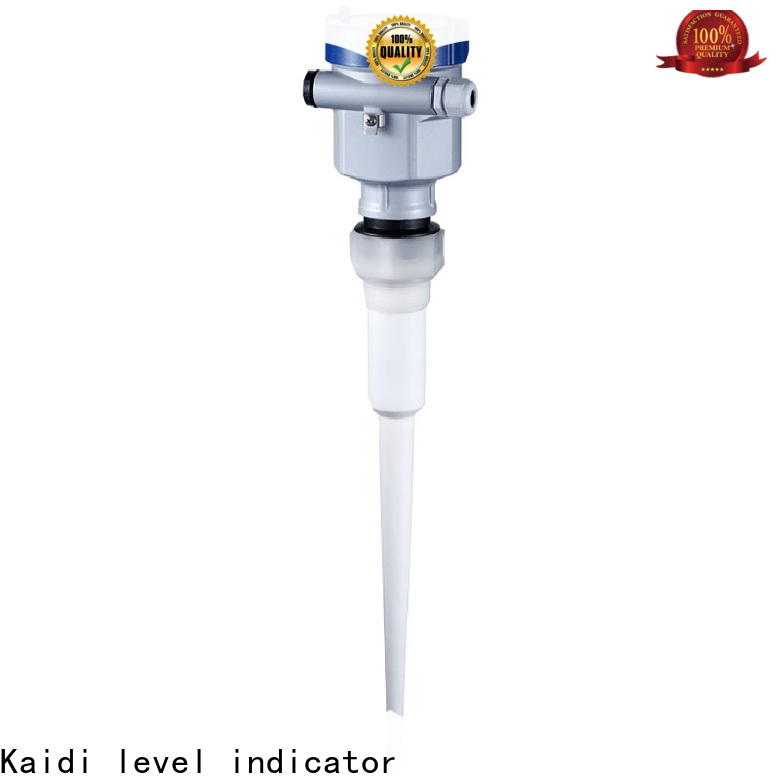

KAIDI high-quality rosemount guided wave radar level transmitter for business for industrial

Company Advantages
1. rosemount guided wave radar level transmitter take precedence over other similar products with its design. This product features very low no-load losses
2. The demands on this product has been increasing among the customers. This product is notable for its strong overload capacity
3. The product features superior low-temperature flexibility. There are two low-temperature tests that have been used in testing its properties such as low-temperature brittleness test and temperature retraction test. This product stands out for its high sensitivity

features: 　 Rod antennas made of PP or PTFE have a certain degree of corrosion resistance.

Should be used: 　 liquid measurement under simple process conditions.

Maximum range: 　30m

Measurement accuracy: 　±10mm

Process connection: 　G1½A

Antenna material: 　PP/PTFE

Process temperature: 　-40…120°C

Process pressure: 　-1.0…3bar

Frequency range: 　6GHz　　　　　　

Signal output: 　two-wire system/four-wire system 4…20mA/HART　　　　



Detailed introduction:

GDRD51

license

P Standard type (non-explosion-proof)

I Intrinsically safe type (Exia IIC T6)

C Intrinsically safe type + marine license (Exia IIC T6)

G Intrinsically safe type + flameproof type (Exd [ia]ia IIC T6)

Antenna type/material/process temperature

A Plastic rod/PP/-40～+120 ℃



B Plastic rod/PTFE/-40～+120 ℃



Container takeover length

A 50mm

B 100mm

C 150mm

D 200mm

E 250mm

F 300mm

X Special customization

Process connection/material

GP thread G1½A

NP thread 1½NPT

YP Special

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe + marine license (Exia IIC T6) is limited to "A" or "B" electronic components and "G" type enclosure; intrinsically safe + flameproof type (Exd [ia]ia IIC T6) is limited to use "D" shell.

Company Features
1. Guangdong Kaidi Energy Technology Co., Ltd. is a professional production base and backbone enterprise for emerging rosemount guided wave radar level transmitter products in the city. Our factory enjoys a good location that benefits both suppliers and our customers. This convenience significantly helps minimize shipping and distribution times and finally shorten our lead time.
2. Thanks to years of good practices, we have gained official recognition. For example, we have been awarded the title of "China Quality Award" for many times.
3. Our factory sticks to the ISO 9001 international quality management system from the very beginning. Under this system, we set standards for all production stages to help ensure customers get consistent, good quality products. Guangdong Kaidi Energy Technology Co., Ltd. delivers innovative guided wave radar level solutions that bring our clients’ visions to life. Call!
