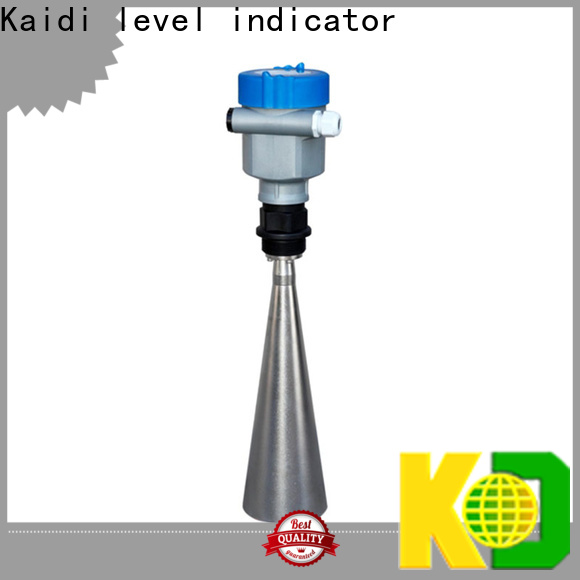

KAIDI high-quality magnetrol guided wave radar level transmitter manufacturers for transportation

Company Advantages
1. Each raw material of KAIDI is carefully selected. It works stably under strong impact and vibration conditions
2. Free samples of our magnetrol guided wave radar level transmitter can be provided for testing first before you place big order. This product can repeat the same measurement many times
3. KAIDI strives forward to ensure the high quality of this product. This product has a high level of insulation
4. The quality of this product is ensured by strict management system and complete quality control system. This product has a wide range of operating temperatures

Features: high accuracy; strong anti-interference ability, not subject to temperature
　　　　　 Influence of degree, humidity and wind; installation, adjustment
　　　　　 Trial and easy to use; low power consumption.
Should be used: applicable to lakes, rivers, reservoirs, open channels,
　　　　　Tide water level and other water level monitoring.

Maximum range: 　70m
Measurement accuracy: 　±3mm
Antenna material: 　 stainless steel 316L horn/PTFE vibrator
Antenna structure: 　 pointed cone vibrator
Frequency range: 　26GHz
Signal output: 　RS485/MODBUS protocol
Power source: 　 (6~26) V DC
Detailed introduction:
GDRD56
Permit
P Standard type (range 30m)
L Intrinsically safe type (range 70m)
Antenna type/material
B (T type) horn antenna Φ48mm/stainless steel 316L
C (T type) horn antenna Φ78mm/stainless steel 316L
H (T type) horn antenna Φ98mm/stainless steel 316L
X Special customization
Process connection/material
GB thread G1½A/PP
GX special customization
Flange matching/material
F0 not selected
FA DN50/PP
GA DN80/PP
HA DN100/PP
FX special customization
Sealing/process temperature
2 Viton(-60～150)℃
Electronic components
R RS485/MODBUS protocol
X Special customization
Enclosure rating
A Aluminum/IP67
B Plastic/IP66
D Aluminum two-chamber/IP67
Cable entry
M M20x1.5
N ½NPT
On-site display/programming
A belt
X without
Note: RS485 interface: baud rate 9.6KBPS, data format 8N1
    Related MODBUS protocol

Company Features
1. KAIDI is influential in the industry of magnetrol guided wave radar level transmitter . The progress of KAIDI can not be achieved without the hard working employees and advanced vega radar level transmitter manual .
2. KAIDI regards quality as life line, so will make every effort to control quality.
3. KAIDI has been cultivating high-level scientific and technological talents with independent innovation capabilities to provide the best high precision radar level meter . Guangdong Kaidi Energy Technology Co., Ltd. has always upheld 'Good Faith as Principle'. Inquire now!
