KAIDI custom rosemount guided wave radar level transmitter factory for detecting

Company Advantages
1. The screen monitor of KAIDI rosemount guided wave radar level transmitter adopts single touch-based technology. It is developed by our dedicated R&D staffs. This product has the ability to accurately convert a physical parameter into a signal
2. All these essential attributes for high-performance garments allow this product to affect both the well-being of the wearer and efficiency in executing the task. This product is not susceptible to cracks
3. The ability to stay cool and dry is one of the critical features of this product. It allows the moisture to evaporate very fast, instead of leaving it inside. With a simple structure, it is perfectly good for demanding industrial applications
4. This product has the outstanding characteristics of ultra-light, ultra-thin, wear-resistant and impact-resistant, which can keep the spectacle lens natural for a long time. This product is characterized by excellent temperature stability

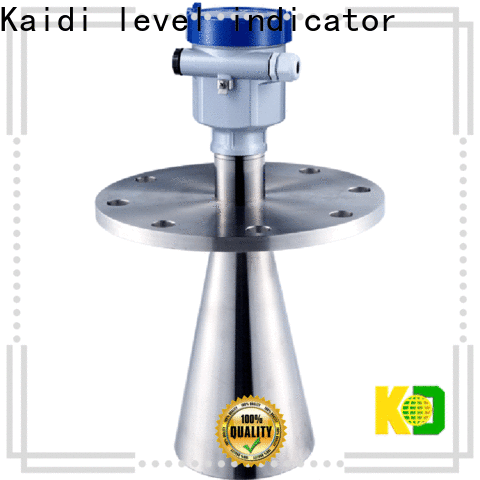

Feature: 　 Horn antenna, the echo signal is stronger.

Should be used: 　 adapt to the environment of various process conditions, can measure small dielectric constant medium.

Maximum range: 　70m

Measurement accuracy: 　±20mm

Process connection: 　 flange 316L

Antenna material: 　 stainless steel 316L/PTFE

Process temperature: 　-40…200°C

Process pressure: 　-1.0…40bar

Frequency range: 　6GHz

Signal output: 　Two-wire system/four-wire system 4…20mA/HART



Detailed introduction:

GDRD54

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Exia IIC T6)

C Intrinsically safe type + marine license (Exia IIC T6)

G Intrinsically safe type + flameproof type (Exd [ia]ia IIC T6)

Antenna type/material

F Horn antenna 150/Stainless steel 316L

G Horn antenna 200/Stainless steel 316L

H Horn antenna 200 lengthened/stainless steel 316L

Antenna extension tube

A None

B 200mm

C 500mm

D 1000mm

X Special customization

Process connection

FB flange DN150 PN1.6 stainless steel 316L (GB/T9119-2000)

FC flange DN200 PN1.6 stainless steel 316L (GB/T9119-2000)

YP Special

Sealing/process temperature

2 Viton/-40～+130℃

3 Kalrez/-20～+130℃

4 Viton/-40～+200℃with heat sink (selected when the process temperature is greater than 100℃)

5 Kalrez/-20～+200℃with heat sink (selected when the process temperature is greater than 100℃)

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½NPT

On-site display/programming

A belt

X without

Purge

A belt

X without

Note: Intrinsically safe + marine license (Exia IIC T6) is limited to "A" or "B" electronic components and "G" type enclosure; intrinsically safe + flameproof type (Exd [ia]ia IIC T6) is limited to use "D" shell.

Company Features
1. Step by step, Guangdong Kaidi Energy Technology Co., Ltd. is becoming skilled at the production and sales of rosemount guided wave radar level transmitter .
2. Promoting the harmonious development of science and technology is helpful to ensure the competitiveness of KAIDI in the level 2 radar industry.
3. Guangdong Kaidi Energy Technology Co., Ltd. contributes to the society with the collective strength of the company. Get quote!
