custom liquid level meter company for transportation

Company Advantages
1. The production of KAIDI pressure level transmitter involves the following major steps. It has to go through stamping, coating, painting, drying, and polishing by respective machines. It is able to quickly and effectively detect and respond to some types of input
2. Wearing shoes made of this material means maximum comfort for feet. People won’t feel like walking miles in heavy shoes that cause pain and discomfort. It is suitable for extreme pressure conditions
3. liquid level meter also has other highly marketable qualities such as pressure level transmitter . This product is mainly used for the automation process
4. liquid level meter discloses a number of advantages such as reasonable structure and pressure level transmitter . This product can be used in many different industries such as food & beverage, water, energy, pharmaceutical, etc
5. For the advantages of pressure level transmitter , liquid level meter are used increasing widely in the field. Since it is maintenance-free, this product significantly helps save operation costs

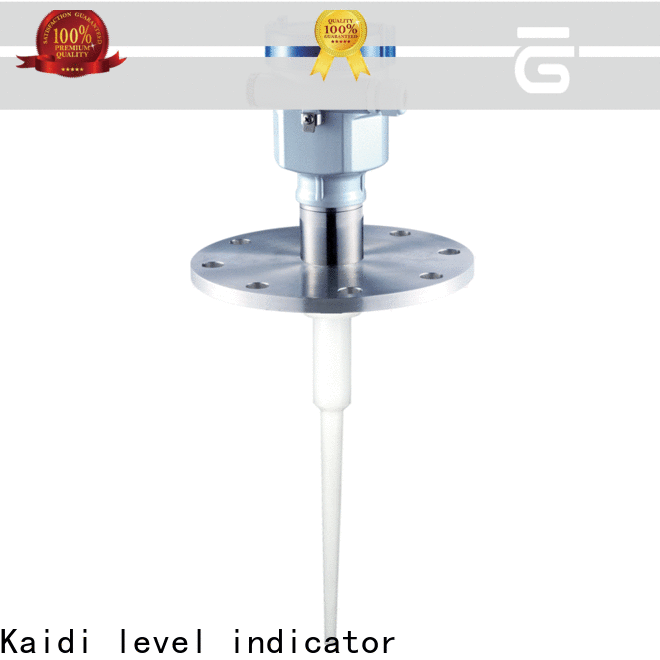

Special 　　 sign: 　All PTFE antenna, strong corrosion resistance, no sanitary corners.

Should be used: 　 Suitable for highly corrosive environment and sanitary environment, simple process liquid measurement.

Maximum range: 　30m

Measurement accuracy: 　±10mm

Process connection: 　PTFE flange flange

Antenna material: 　PTFE

Process temperature: 　-40…150°C

Process pressure: 　-1.0…16bar

Frequency range: 　6GHz

Signal output: 　Two-wire system/four-wire system 4…20mA/HART



Detailed introduction:

GDRD52

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Exia IIC T6)

C Intrinsically safe type + marine license (Exia IIC T6)

G Intrinsically safe type + flameproof type (Exd [ia]ia IIC T6)

Antenna type/material/process temperature

B Plastic rod/PTFE/-40～+150℃

Container takeover length

A 50mm

B 100mm

C 150mm

D 200mm

E 250mm

F 300mm

X Special customization

Process connection

FC PTFE flange flange DN50 PN1.6 stainless steel 316L (GB/T9119-2000)

FD PTFE flange flange DN80 PN1.6 stainless steel 316L (GB/T9119-2000)

FE PTFE flange flange DN100 PN1.6 stainless steel 316L (GB/T9119-2000)

FK PTFE flange flange DN150 PN1.6 stainless steel 316L (GB/T9119-2000)

YP Special

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe + marine license (Exia IIC T6) is limited to "A" or "B" electronic components and "G" type enclosure; intrinsically safe + flameproof type (Exd [ia]ia IIC T6) is limited to use "D" shell.

Company Features
1. Having gained high recognization from the market, Guangdong Kaidi Energy Technology Co., Ltd. is a professional company specializing in the development and production of pressure level transmitter . Over the years, we have occupied a major presence in the China market. Beyond that, we also established business relationships in many countries, such as the USA, Canada, Germany, etc.
2. Our products have to be manufactured to international standards, which we find is a real positive for both customers and consumers all over the world as they can be assured they are purchasing consistently high-quality products.
3. We have many experienced technicians. They are able to guide clients through from conception to order completion by using their professional knowledge and expertise. In this prospering society, KAIDI aims to be a better company in the field of liquid level meter. Get price!
