Radar level gauge is not affected by dusty conditions

radar level gaugeIn the field of industrial measurement, especially in complex environments with dust interference, it has demonstrated exceptional performance and stability. Its unique operating principle endows it with dust-resistant characteristics, providing precise and reliable level monitoring for production processes across numerous industries.

Radar level transmitters primarily rely on the transmission and reception of electromagnetic waves to measure level. The instrument head emits high-frequency electromagnetic waves, which propagate at a constant speed toward the surface of the measured material. When the electromagnetic waves encounter the material surface, they reflect, with part of the reflected waves being received by the radar level transmitter. By precisely measuring the time interval between the emission and reception of the electromagnetic waves, combined with the propagation speed of the waves, and using a specific calculation model, the distance between the material and the radar level gauge can be accurately calculated, thereby determining the height of the level. This working principle, based on time measurement and the characteristics of electromagnetic waves, fundamentally determines the radar level gauge's strong anti-interference capability, enabling it to operate stably in dusty environments.

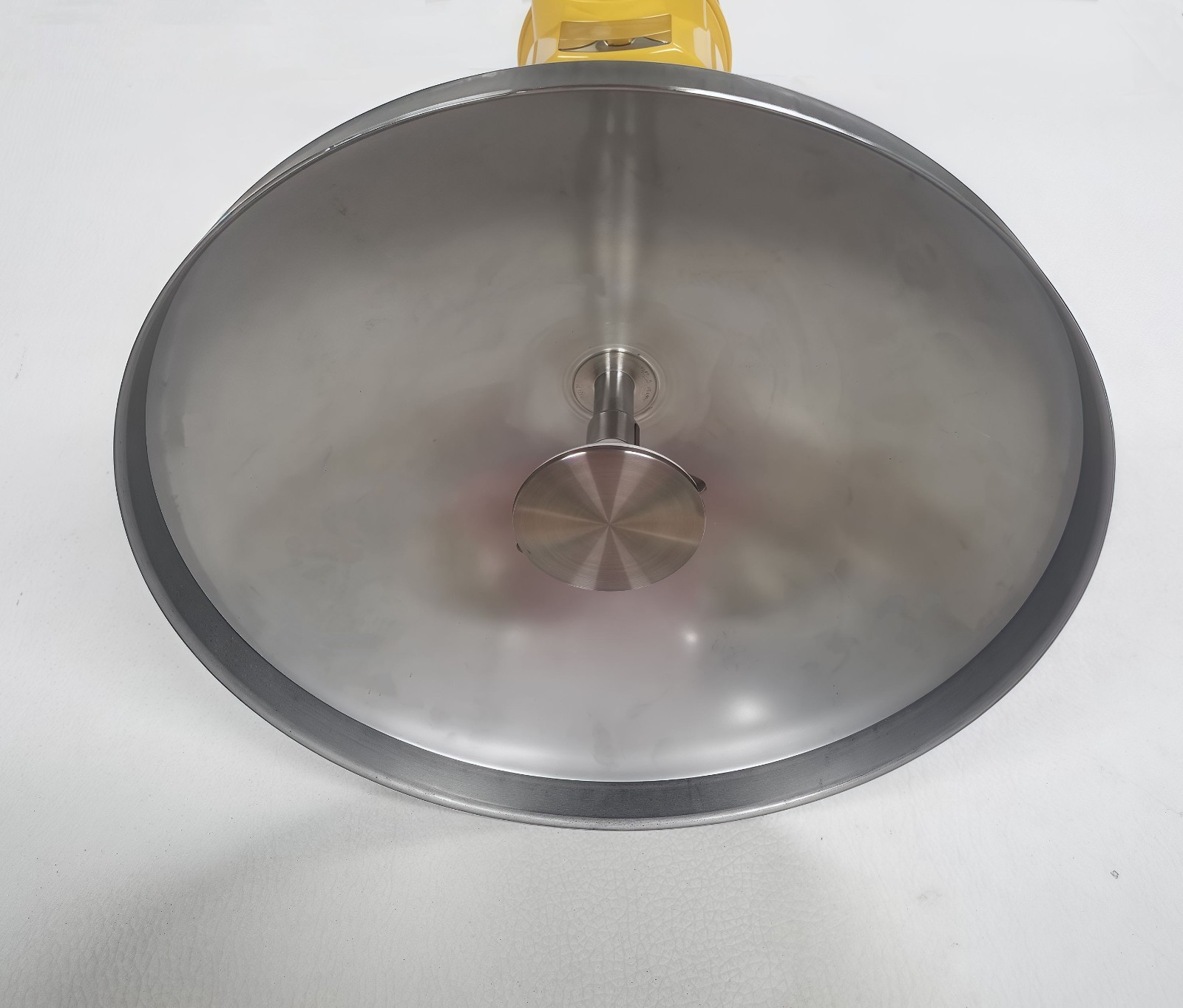

In industrial environments with high dust levels, conventional level measurement devices often encounter numerous issues. For example, optical measurement devices rely on the transmission and reception of light, but dust particles can severely scatter and block light, resulting in weakened or lost measurement signals and preventing accurate level information from being obtained. Mechanical contact-type measurement devices, such as float-type level gauges, are prone to dust particle intrusion in dusty environments, causing blockages, wear, or jamming of mechanical components, which affects measurement accuracy and normal device operation. In contrast, radar level gauges can effectively avoid these drawbacks. The antenna design of radar level gauges is one of the key factors in resisting dust interference. The antenna surface typically features special coatings or material treatments, resulting in extremely low surface energy and smoothness, making it difficult for dust to adhere to the surface. Even if a small amount of dust accidentally adheres, the relatively long wavelength and concentrated energy of electromagnetic waves can easily penetrate these microscopic dust particle layers without significant scattering or absorption effects. Additionally, the signal processing system of radar level transmitters is equipped with powerful filtering and anti-interference algorithms, which can further eliminate any potential noise interference, ensuring the accuracy and stability of measurement data.

In actual industrial production, radar level gauges are widely used and highly effective. Take the fly ash silos in a thermal power plant as an example. During the transportation and storage of fly ash, a large amount of fine dust is generated. Traditional level measurement devices often experience issues such as significant measurement errors and frequent malfunctions in such high-dust environments. However, by using radar level gauges, real-time and accurate monitoring of material level changes within the fly ash silos can be achieved. Whether during the large-scale feeding stage of fly ash or during prolonged storage periods, radar level gauges can consistently output precise level signals, providing reliable data support for power plant operators to promptly adjust conveying equipment and storage strategies, thereby preventing issues such as fly ash overflow or inventory shortages. In the measurement of raw material silos and cement silos during cement production, radar level gauges also play a crucial role. Cement dust generated during production has high concentration and strong diffusivity, but radar level gauges, with their outstanding performance, can accurately measure material height within silos under such harsh conditions. This helps optimise cement production processes, ensuring proper raw material ratios and stable cement production, while reducing energy waste and environmental pollution caused by inaccurate level measurements.

Radar level gauges demonstrate exceptional reliability and accuracy in the presence of dust interference thanks to their unique electromagnetic wave-based operating principle, carefully designed antenna structure, and advanced signal processing technology. They provide an effective solution for level measurement in industrial production, particularly in dusty and harsh environments, ensuring continuous, stable, and efficient production processes. As a result, they have become an indispensable measurement device in the field of modern industrial automation control.
