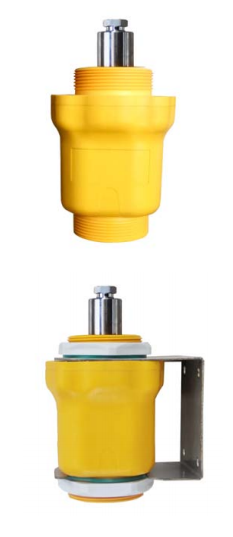

KD-FMF series sensors are 120G FM radar type level measuring instruments with measuring distance up to 35 meters. The antenna is further optimized and the new fast microprocessor allows for higher speed signal analysis and processing, making the meter usable for high temperature and high pressure and other environmental liquid measurements.

The general principle of frequency modulated continuous wave radar level meter is that the radar emits electromagnetic waves at the top of the tank, and the electromagnetic waves are received by the radar after hitting the medium and reflected. Because the speed of light C and FM slope K are known, so the frequency difference δ f is estimated, and the distance R of the material surface at the radar installation position can be obtained, and then the height of the material level is obtained by subtracting the spatial distance from the radar to the material surface (referred to as the empty height) from the known total height of the tank.


This meter fully meets the requirements of protection class IP68, please ensure the waterproofness of the cable sealing head. As shown below:
How to ensure that the installation meets the requirements of IP68:
Make sure that the sealing head is not damaged.
Make sure that the cable is not damaged.
Make sure that the cables used meet the requirements of the electrical connection specifications.
Before entering the electrical interface, bend the cable downward to ensure that water does not flow into the housing. Please tighten the cable gland.

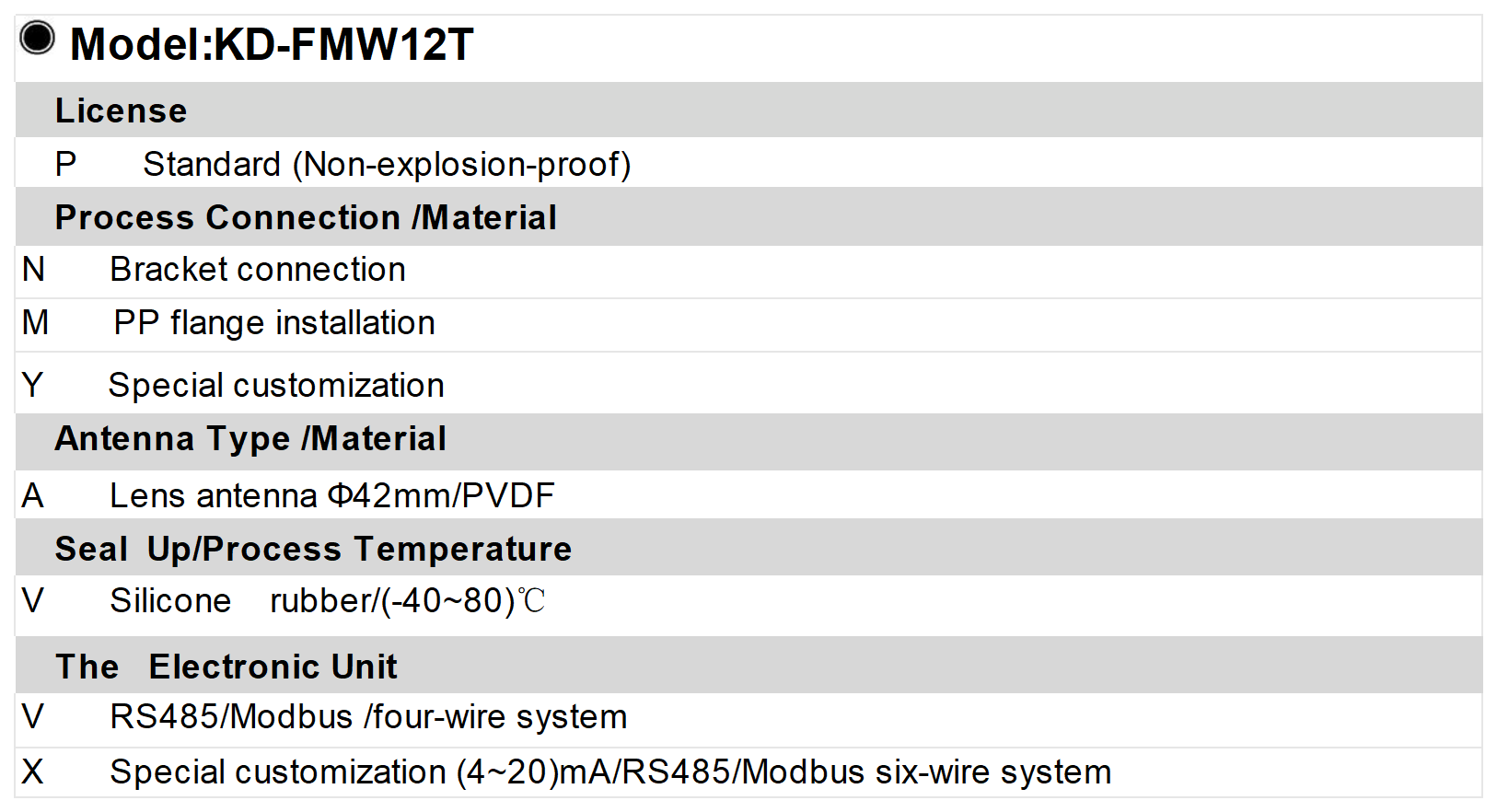

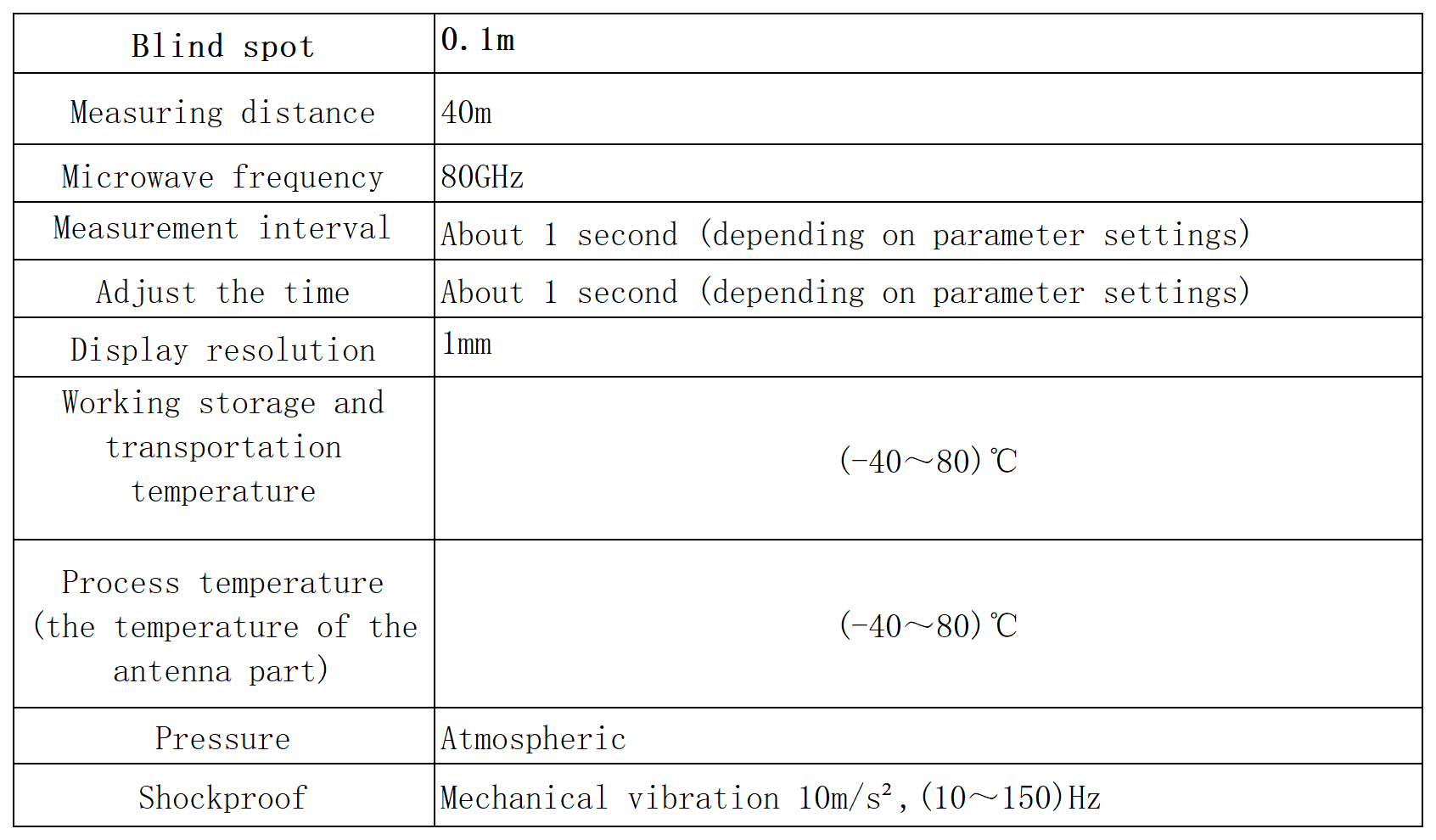

Application: rivers, lakes, shallows
Measuring range: 50 meters
Process connection: Gantry frame, locking flange from DN65/ 2.5"
Process temperature: -40~80℃
Process pressure: (-0.1~0.3) MPa

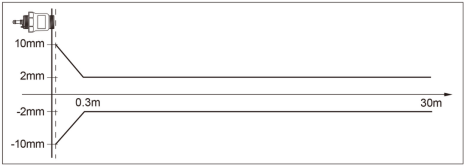

Precision: ±2mm
Frequency range: 80GHz
Protection level: IP68
Antenna size: 42mm lens
Power supply: DC (12-24V) / four wires
Signal output: RS485
Commissioning: Bluetooth/Modbus protocol
Port rate: 115200
Elevation compensation: with
Temperature compensation: with
On-site display: None
Shell: Plastic PVDF






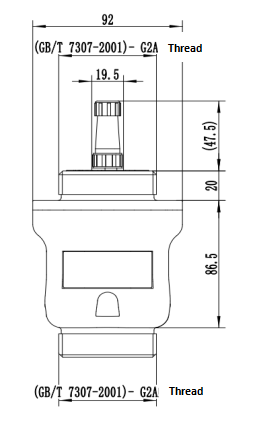

Product Installation
◉Preparation before installation Please pay attention to the following items to ensure that the meter can be installed correctly: Please reserve enough space for installation. Please avoid installation situations with strong vibration.
◉Illustration and installation location

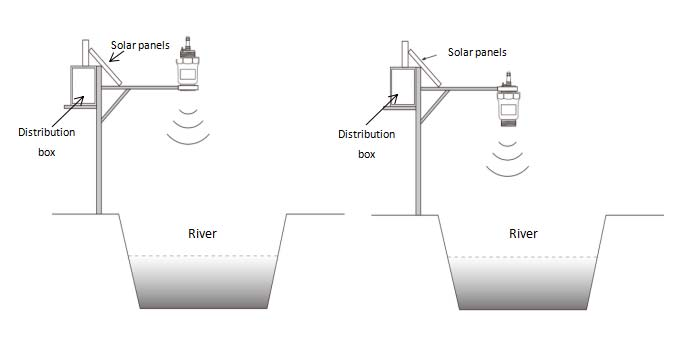

Radar water level gauge installation diagram (1)
Radar water level gauge installation diagram (2)

Note: When a radar antenna emits microwaves, it has a certain emission angle. There should be no obstacles from the lower edge of the antenna to the surface of the measured medium, and in the area radiated by the emitted microwave beam. Therefore, shielding facilities should be avoided as much as possible during installation, and “false echo learning” must be carried out when necessary. Also pay attention when installing the instrument: the highest liquid level must not enter the blind area of the measurement.
The Electrical Connection

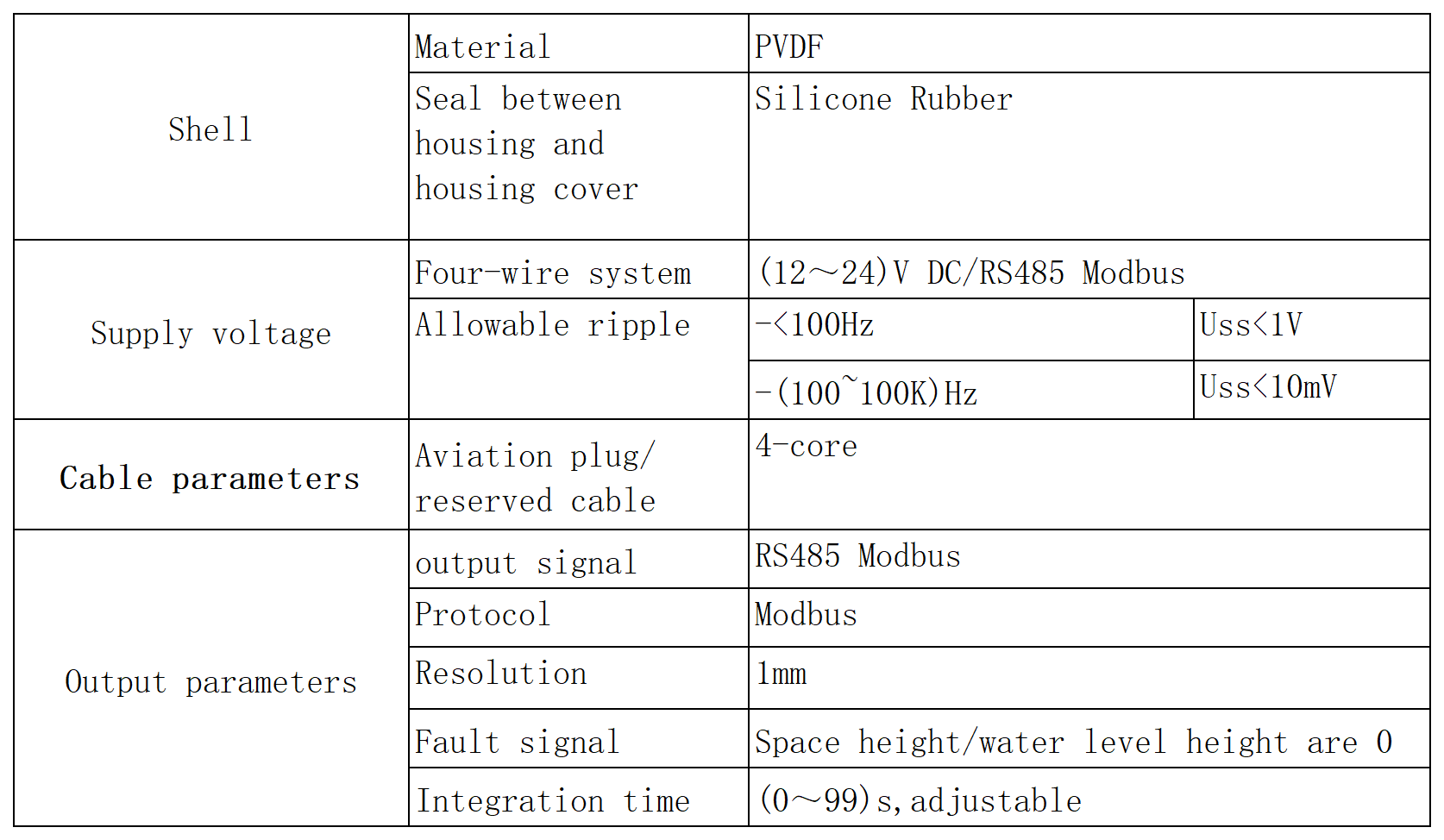

◉Supply voltage

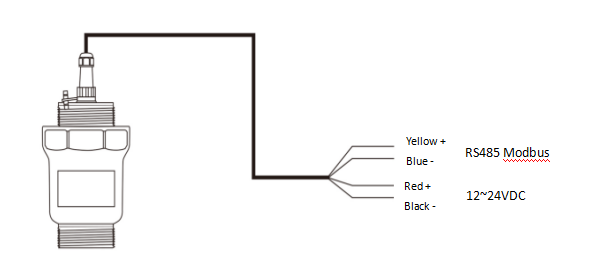

Modbus-RS485
Separate the power supply and Modbus signal lines with a shielded cable respectively. For the specific power supply voltage range, please refer to the technical data.

◉Safety guidance Please comply with the requirements of local electrical installation regulations! Please abide by the local regulations on the health and safety of personnel. All operations on the electrical components of the instrument must be completed by properly trained professionals. Please check the nameplate of the meter to ensure that the product specifications meet your requirements. Please make sure that the power supply voltage is consistent with the requirements on the nameplate of the meter.
◉Protection level This meter fully meets the requirements of protection class IP68, please ensure the waterproofness of the cable sealing head. As shown below: How to ensure that the installation meets the requirements of IP68: Make sure that the sealing head is not damaged. Make sure that the cable is not damaged. Make sure that the cables used meet the requirements of the electrical connection specifications. Before entering the electrical interface, bend the cable downward to ensure that water does not flow into the housing. Please tighten the cable gland.
◉There are two debugging methods for radar water level gauge: (1)Mobile phone Bluetooth debugging/connecting to the Bluetooth debugging radar through the WeChat applet (2) Host computer debugging/debugging through MUDBUS protocol

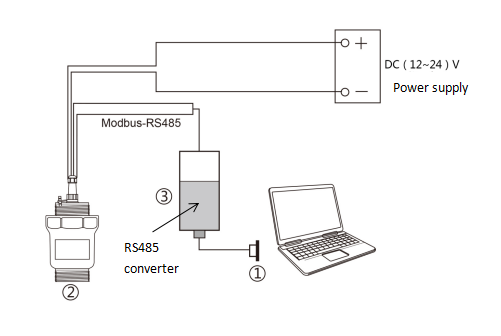

◉Upper computer debugging ➱Connect to the host computer through the RS485 converter ① RS232 interface/or USB interface ② Radar water level gauge ③ RS485 converter
