In industries where precise measurement of levels is critical, servo level gauges are known for their reliability and high accuracy. These devices play a role, in sectors like oil and gas, chemical manufacturing and water treatment where maintaining liquid levels is essential for operational efficiency and safety. Servo level gauges utilize advanced technology to measure levels in storage tanks, providing real time data that helps with efficient inventory management and process control. This article explores how servo level gauge work, their advantages and how they are used across industries.

How Do Servo Level Gauges Work?

Picture a container holding a liquid. Inside this container there is a system that quietly gauges the level of the liquid with precision. Now let's delve into the servo level gauge working principle of this technology.

1. Probe Placement: The heart of the system is centered around a sensor or strip that is carefully placed in a specific position, within the tank. This sensor extends from the top to the bottom enabling it to gauge the level, across the height of the tank.

2. Servo Motor Control: This probe isn't simply dropped into the tank – it's equipped with a built-in servo motor. Imagine a tiny, powerful motor precisely controlling the probe's movement up and down the tank, ensuring smooth and accurate positioning.

3. Buoyancy and Weight Displacement: The measurement principle is centered on the idea of buoyancy. When the probe moves through the liquid it faces resistance determined by the depth of the liquid. The servo motor intelligently adapts its strength to keep a speed for the probe effectively determining the "weight" of the liquid pushing against it.

4. Continuous Feedback Loop: The system doesn't operate blindly. Sensors within the probe continuously monitor its position relative to the liquid surface.

5. Level Calculation: Using this feedback data and pre-programmed algorithms, the servo level gauge system performs the crucial calculation: converting the probe's position into an accurate measurement of the liquid level.

6. Data Processing and Display: The calculated level data isn't locked away. The servo gauge system processes it through onboard electronics, often displaying the results on a user-friendly digital interface. Additionally, some systems offer data logging capabilities or communication ports for transmitting the level information to external control systems or computers.

7. Accuracy and Calibration: Servo level gauges are renowned for their high accuracy. To ensure this precision is maintained, they undergo calibration against reference standards or certified measurement devices at regular intervals. This ensures the system continues to translate probe movement into reliable liquid level data.

8. Advanced Features: Beyond basic level measurement, some servo level gauges boast additional functionalities. These can include temperature compensation (adjusting for liquid expansion due to temperature changes), density correction (accounting for variations in liquid density), and even leak detection capabilities. For complex applications, some systems offer overfill prevention features or even tank inventory management functionalities.

Different Types of Servo Level Gauges:

While servo tank gauge share a core operating principle, they come in various configurations to cater to specific application requirements. Here's a breakdown of some common types:

Weight and Tape Gauges:

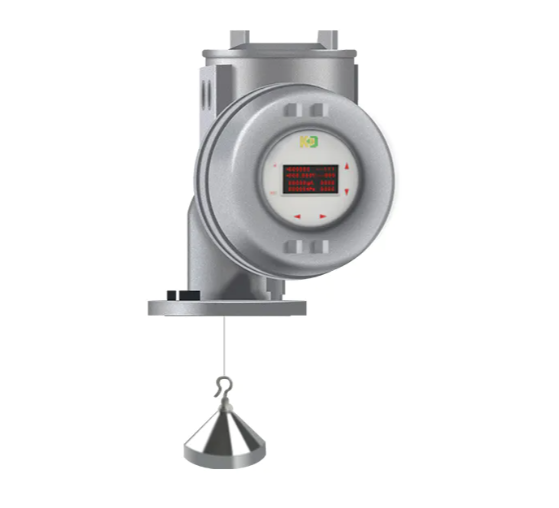

These are the most widely used servo level gauges. They utilize a weighted tape or cable that extends from the top of the tank down to the liquid surface. The servo motor controls the tape's movement, measuring the liquid level based on the weight of the tape submerged in the liquid. Weight and tape gauges are known for their simplicity, reliability, and suitability for a wide range of liquids.

Magnetostrictive Gauges:

These gauges employ a magnetostrictive rod within the probe. The rod's length changes slightly based on the magnetic field it experiences. As the probe dips into the liquid, the magnetic field strength surrounding the rod changes. The servo motor controls the probe's movement, and the system measures the level based on the change in the rod's length detected by onboard electronics. Magnetostrictive gauges offer high accuracy and are ideal for applications with harsh environments or foaming liquids that might impede the movement of a weight and tape.

Radar Gauges:

These servo tank gauges utilize radar technology to measure the liquid level. The probe emits short radar pulses that bounce off the liquid surface. The servo motor controls the probe's movement, and the system calculates the liquid level based on the time it takes for the radar pulse to travel to the surface and back. Radar gauges are non-contact and well-suited for applications with hazardous liquids or tanks with internal structures that might interfere with other types of gauges.

Ultrasonic Gauges:

Similar to radar gauges, ultrasonic gauges use sound waves to measure the liquid level. The probe emits ultrasonic pulses that travel to the liquid surface and reflect back. The servo motor controls the probe's movement, and the system calculates the level based on the time it takes for the sound waves to travel. Ultrasonic gauges are another non-contact option and are well-suited for applications with foaming liquids or where avoiding contact with the liquid is crucial.

Guided Wave Radar Gauges:

These gauges utilize high-frequency microwave signals that travel down a guided wave antenna within the probe. The signal reflects off the liquid surface and travels back up the antenna. The servo motor controls the probe's movement, and the system calculates the level based on the time it takes for the signal to travel. Guided wave radar gauges offer high accuracy and are ideal for applications with turbulent liquids or tanks with complex shapes.

By understanding the different types of servo level gauges and their strengths, you can select the ideal solution to ensure precise and reliable liquid level measurement for your specific needs.

Conclusion:

Servo level gauges testify to technological innovation, offering a highly accurate and reliable solution for liquid level measurement in storage tanks. Their versatility and advanced features make them a valuable asset across various industries. By understanding the core principles, choosing the right gauge for your needs, and implementing proper maintenance practices, you can leverage servo gauges to optimize your operations and ensure precise liquid level control for years to come.
