1.Product Overview

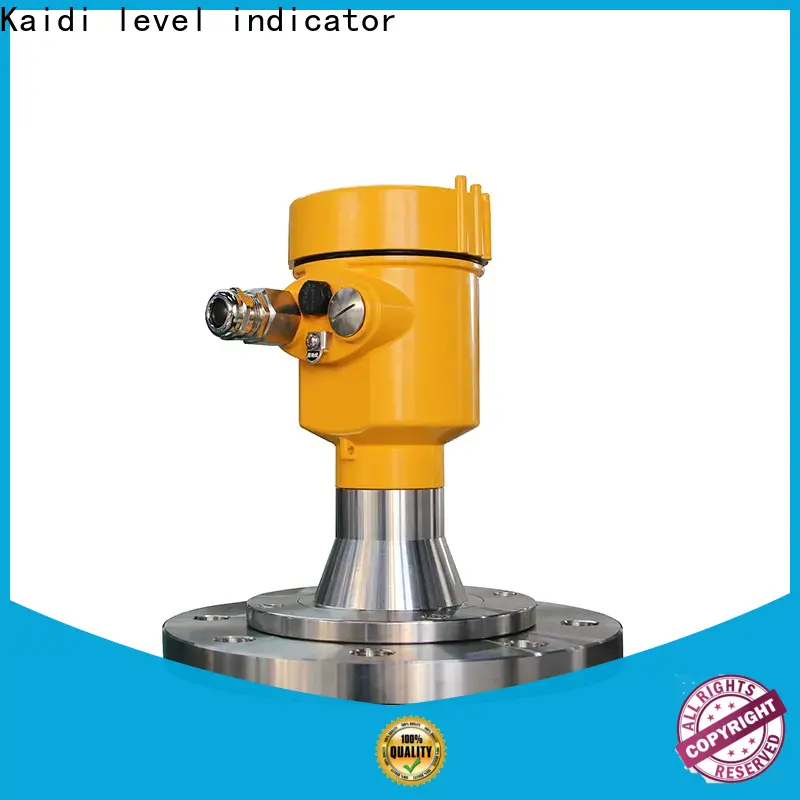

The KDD-FMF series sensor is a 120G frequency modulation radar type level measuring instrument with a measuring distance of up to 30 meters. The antenna is further optimized, and the new and fast microprocessor can perform higher-speed signal analysis and processing, so that the meter can be used for measuring high temperature and high pressure and other environmental liquids.

Kaidi Sensors radar type level transmitter factory for work-1

2.The Product Principle

The general principle of the FM continuous wave radar level gauge is that the radar emits electromagnetic waves on the top of the tank, and the electromagnetic waves are received by the radar after being reflected by the medium. The frequency difference δ f between the received signal and the transmitted signal is proportional to the distance R from the surface of the medium. : R= C (speed) *δ f (frequency difference) /2/K (frequency modulation slope). Because the speed of light C and the frequency modulation slope K are known, the frequency difference δ f can be estimated to obtain the distance R of the material surface at the radar installation position, and then through the known total height of the tank, subtract the spatial distance from the radar to the material surface ( Referred to as the air height), the height of the material level is obtained.

Kaidi Sensors radar type level transmitter factory for work-2

3.Protection Grade

This meter fully meets the requirements of protection class IP66/67, please ensure the waterproofness of the cable sealing head. As shown:

Kaidi Sensors radar type level transmitter factory for work-3

How to ensure that the installation meets the requirements of IP67:

Make sure that the sealing head is not damaged.

Make sure that the cable is not damaged.

Make sure that the cables used meet the requirements of the electrical connection specifications.

Before entering the electrical interface, bend the cable downward to ensure that water does not flow into the housing, see ①

Please tighten the cable sealing head, see ②

Please block the unused electrical interfaces with blind plugs, see ③

4.Product Specification

Kaidi Sensors radar type level transmitter factory for work-4

Measuring medium: solid

Measuring range: 0.3m~120m

Process connection: flange ≥DN80

Process temperature: -40～110℃

Process pressure: -0.1～0.3MPa

Precision: ±5mm

Protection level: IP67

Frequency range: 120GHz

Power supply: two-wire system (DC24V)/four-wire system (DC12V~24V)/four-wire system (AC220V)

Explosion-proof grade: Exia ⅡC T6 Ga / Exd IIC T6 Gb

Housing: Aluminum/Plastic/Stainless Steel

Signal output: two-wire system 4...20mA/HART protocol/four-wire system 4...20mA /RS485 Modbus

5.Appearance of Size

Kaidi Sensors radar type level transmitter factory for work-5

6.Technical Parameters

Process connection	Flange
Material	316 stainless steel, PP
Shell	Seal between housing and housing	Silicone Rubber
	Shell window	Polycarbonate
	Ground terminal	Stainless steel
Supply voltage	four-wire system	Standard	（12~24）V DC
		Power consumption	max80mA DC24V/2W
		Allow ripple	＜100Hz	Uss＜1V
			（100~100K）Hz	Uss＜10mV
	Shell	(198~242)V AC	four-wire system
		100V AC	four-wire system
Cable parameters	Cable entry/plug	1 M20x1.5 cable entry
		1 blind plug M20×15
	Ground terminal	Conductor cross section 2.5mm2
Output parameters	output signal	（4~20）mA/RS485Modbus
	Resolution	1mm
	Fault signal	Current output unchanged; 20.5mA; 22mA; 3.9mA
	Integration time	(0~20)s, adjustable
Blind spot	0.1m/0.2m/0.3m
Maximum measurement interval	150 meters
Measuring distance	About 1 second (depending on parameter settings)
Adjust the time	About 1 second (depending on parameter settings)
Adjust time, working storage and transportation temperature	（-40~80）℃
Process temperature	KDD-FMF11	-40~80℃
	KDD-FMF12	-40~110℃
	KDD-FMF13	-40~110℃
	KDD-FMF15	-40~200℃
	KDD-FMF21	-40~110℃
Relative humidity	＜95%
pressure	Max2.5MPa
Shockproof	Mechanical vibration 10m/s2, (10~150)Hz

7.Instrument Linearity

Kaidi Sensors radar type level transmitter factory for work-6

8.Installation Requirements

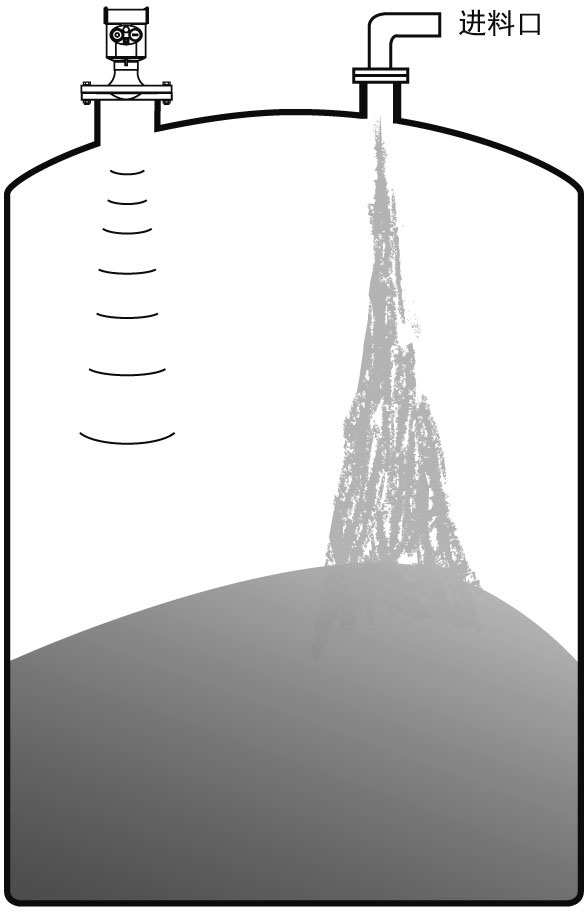

When installing the instrument, avoid installing it above the inlet, and try to avoid all kinds of objects that affect the signal, such as stirring paddles, etc.

Kaidi Sensors radar type level transmitter factory for work-7

● Under extremely complicated working conditions, the instrument can work normally if there is no obstacle in the area of 20cm radius with the radar installation point as the center.

Kaidi Sensors radar type level transmitter factory for work-8

Kaidi Sensors radar type level transmitter factory for work-9
