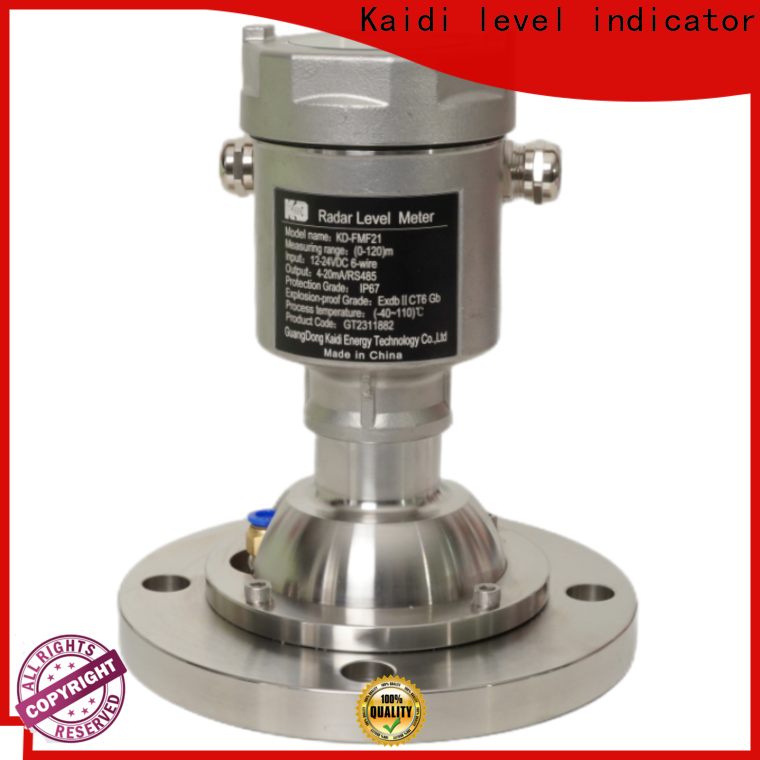

PRODUCT OVERVIEW

KD-FMF series sensors are 120G FM radar type level measuring instruments with a measuring distance of up to 150 meters. The antenna is further optimized for processing and the new fast microprocessor allows for higher speed signal analysis and processing, making the meter available for measurement of high temperature and high pressure and other environmental solids.

Kaidi Sensors radar level guage for business for detecting-1

THE PRODUCT PRINCIPLE

The general principle of frequency modulated continuous wave radar level meter is that the radar emits electromagnetic waves at the top of the tank, and the electromagnetic waves are received by the radar after hitting the medium and reflected. Because the speed of light C and FM slope K are known, so the frequency difference δ f is estimated, and the distance R of the material surface at the radar installation position can be obtained, and then the height of the material level is obtained by subtracting the spatial distance from the radar to the material surface (referred to as the empty height) from the known total height of the tank.

Kaidi Sensors radar level guage for business for detecting-2

PROTECTION GRADE

Kaidi Sensors radar level guage for business for detecting-3 This instrument fully meets the requirements of protection class IP66/67.

Please make sure that the cable sealing head is waterproof. As shown

How to ensure that the installation meets the requirements of IP67:

Please make sure that the sealing head is not damaged.

Please ensure that the cable is not damaged.

Please ensure that the cable used meets the requirements

of the electrical connection specification.

Before entering the electrical connection, bend the cable

downwards to ensure that water does not flow into the housing, see ①

Please tighten the cable sealing head, see ②

Please plug the unused electrical connections with blind plugs, see ③

PRODUCT SPECIFICATION

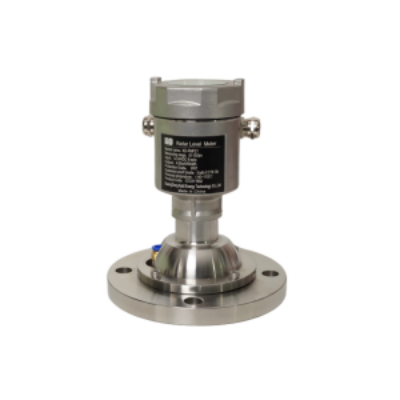

Kaidi Sensors radar level guage for business for detecting-4 Measuring medium: solid

Measuring range: 0.3m~150m

Process connection: flange ≥ DN80

Process temperature: -40～110℃

Process pressure: -0.1～0.3MPa

Accuracy: ±5mm

Protection level: IP67

Frequency range: 123GHz

Power supply: two-wire (DC24V) / four-wire (DC12V~24V) / four-wire / six-wire (AC220V)

Explosion-proof grade: Exia ⅡC T6 Ga / Exd IIC T6 Gb

Housing: Aluminum / Plastic / Stainless steel

Signal output: 2-wire 4.... .20mA / HART protocol / 4-wire / 6-wire 4.... .20mA /RS485 Modbus

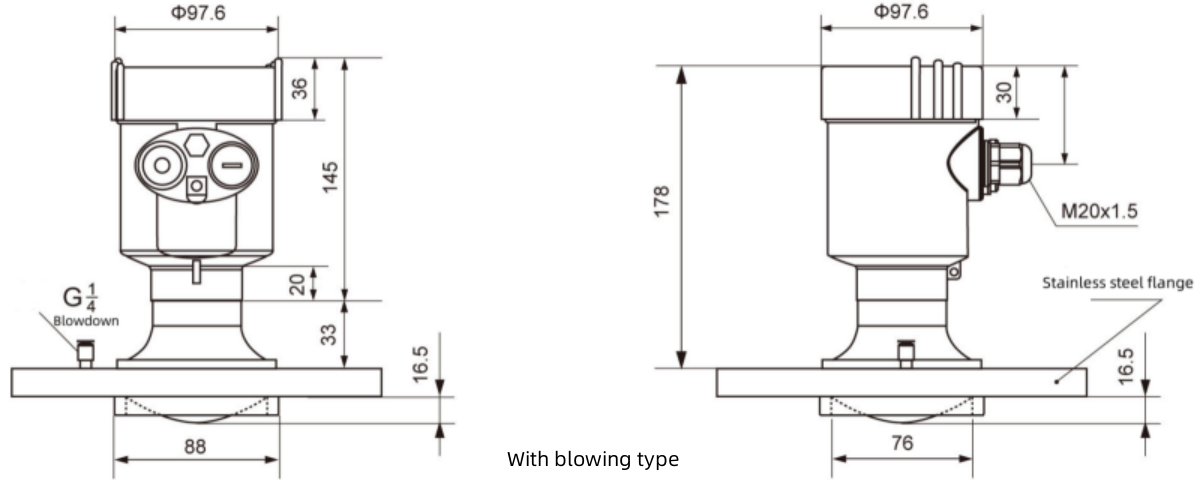

APPEARANCE OF SIZE

Kaidi Sensors radar level guage for business for detecting-5

Kaidi Sensors radar level guage for business for detecting-6

TECHNICAL PARAMETERS

Process connection	Flange
Material	304 stainless steel, PP
Shell	Seal between housing and housing	Silicone Rubber
	Shell window	Polycarbonate
	Ground terminal	Stainless steel
Supply voltage	four-wire system	Standard	（12~24）V DC
		Power consumption	max80mA DC24V/2W
		Allow ripple	＜100Hz	Uss＜1V
			（100~100K）Hz	Uss＜10mV
	Shell	(198~242)V AC	four-wire system
		100V AC	four-wire system
Cable parameters	Cable entry/plug	1 M20x1.5 cable entry
		1 blind plug M20×15
	Ground terminal	Conductor cross section 2.5mm2
Output parameters	output signal	（4~20）mA/RS485Modbus
	Resolution	1mm
	Fault signal	Current output unchanged; 20.5mA; 22mA; 3.9mA
	Integration time	(0~20)s, adjustable
Blind spot	0.1m/0.2m/0.3m
Maximum measurement interval	150 meters
Measuring distance	About 1 second (depending on parameter settings)
Adjust the time	About 1 second (depending on parameter settings)
Adjust time, working storage and transportation temperature	（-40~80）℃
Process temperature	KD-FMF11	-40~80℃
	KD-FMF12	-40~110℃
	KD-FMF13	-40~110℃
	KD-FMF15	-40~200℃
	KD-FMF21	-40~110℃
Relative humidity	＜95%
pressure	Max2.5MPa
Shockproof	Mechanical vibration 10m/s2, (10~150)Hz

INSTRUMENT LINEARITY

Kaidi Sensors radar level guage for business for detecting-7

INSTALLATION REQUIREMENTS

When installing the instrument, avoid installing it above the inlet, and try to avoid various objects that affect the signal, such as stirring paddles, etc.

Kaidi Sensors radar level guage for business for detecting-8

● Under extremely complex working conditions, the instrument can work normally without any obstacle in the area of 20cm radius centered on the radar installation point.
