1.Product Introduction


KAIDI latest ultrasonic liquid level sensors for business for transportation-1

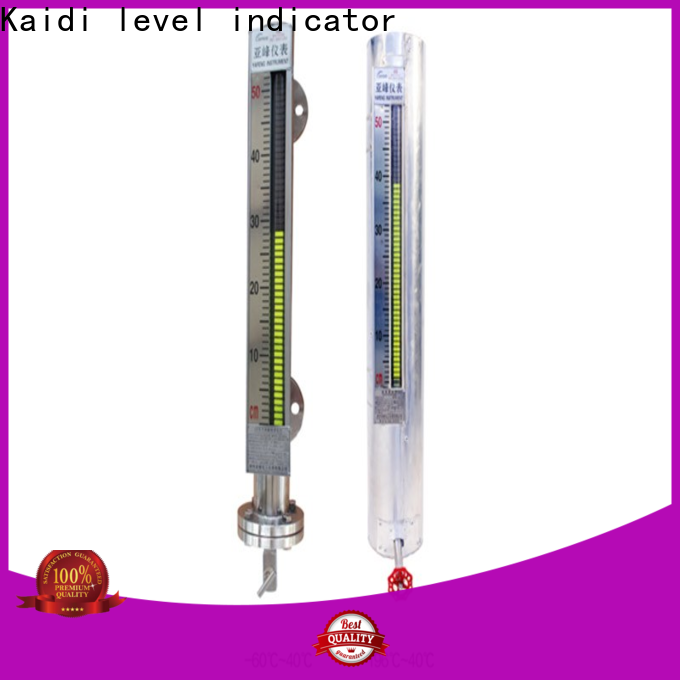

UZC cryogenic magnetic level gauge is suitable for low temperature and ultra-low temperature liquid measurement, the lowest working temperature can reach -196℃. The product chamber adopts the most mature cryogenic isolation technology, which can make the level gauge normal in low temperature environment for a long time. In use, it has the advantages of no frost on the surface, no blind spots in the whole process of measurement, eye-catching display, intuitive reading, and large measurement range. According to the working temperature, it can be divided into: low temperature type and ultra low temperature type. Both of these two liquid level gauges adopt different cryogenic isolation processes to meet the corresponding temperature measurement.



2.Technical Parameter

KAIDI latest ultrasonic liquid level sensors for business for transportation-2


3.Selection table


Model

illustrate

UZ

Subpeak Magnetic Level Gauge

Type of installation

C

Side loading

D

Top loading

Panel type

A1

-40-80℃ normal temperature

Z1

-190~-20℃ Vacuum

A2

80-180℃ medium temperature

Z2

-20-180℃ Vacuum

A3

180-350℃ high temperature

Z3

Vacuum at 180-350℃

A4

350-450℃ ultra high temperature

E

-40℃-450℃ magnetic sensitivity

Pressure Rating (MPa)

1.0

PN1.0

2.0

CL150LB

1.6

PN1.6

5.0

CL300LB

2.5

PN2.5

11.0

CL600LB

4

PN4.0

15.0

CL900LB

6.3

PN6.3

26.0

CL1500LB

10

PN10.0

42.0

CL2500LB

16

PN16.0



Range-Density

Range mm-density g/cm³

Flange Material

P

304

PF

304 lined with fluorine

PL

316L

C

Carbon steel

PP

PP

Ti

titanium

Flange Diameter

15

Side mounted DN15

50

Top loading DN50

20

Side mounted DN20

65

Top loading DN65

25

Side mounted DN25

80

Top loading DN80

32

Side mounted DN32

100

Top loading DN100

40

Side mounted DN40

125

Top loading DN125

50

Side mounted DN50

150

Top loading DN150

65

Side mounted DN65

200

Top loading DN200

80

Side mounted DN80

250

Top loading DN250

Flange sealing surface

Omit

Raised face

FM

Concave

F

Convex

FF

Full plane

Tube material

P

304

P1

321

PL

316L

P4

304L

PF

304 lined with fluorine

Ti

titanium

PP

PP



Insulation/anti-frost

Omit

No

C

Type C insulation pipe (recommended)

T1

Set vacuum insulation

T2

Jacket insulation

D1

40-90 constant temperature electric heating

D2

120°C temperature control adjustable electric heating

S1

Anti-frost below -40°C

S2

-40~-20℃ anti-frost

Accessories

Y

Remote transmission level gauge

K

Alarm switch



4.Dimensions


KAIDI latest ultrasonic liquid level sensors for business for transportation-3

5.Product Structure



KAIDI latest ultrasonic liquid level sensors for business for transportation-4



The materials used in the manufacture of Kaidi Sensors ultrasonic liquid level sensors are generally corrugated fiberboard, acrylic, UltraBoard, PVC, wood, etc. whose quality and property must be observed in the inspection room.
Kaidi Sensors ultrasonic liquid level sensors has gone through a comprehensive range of tests. They may include life cycle testing, shock & vibration testing, temperature testing, humidity testing, and combined environmental testing.
The design of Kaidi Sensors ultrasonic liquid level sensors is a combination of various technologies. They are mainly automation, intelligence, sensing, computer science, and mechanical engineering technologies.
The reliability tests for Kaidi Sensors ultrasonic liquid level sensors is well done. They include temperature&humidity testing, thermal shock testing, leakage current testing, and vibration testing.
Kaidi Sensors ultrasonic liquid level sensors is of guaranteed quality. It is tested for proper color, abrasion resistance, waterproofness, weight and hand properties in the manufacturing process.
Guangdong Kaidi Energy Technology Co., Ltd. has established a good cooperative relationship with many suppliers, the raw material procurement channels are stable, and raw materials with good quality and reasonable price can be obtained at any time, which reduces the production cost of ultrasonic liquid level sensors to a certain extent. Compared with other similar products, Our ultrasonic liquid level sensors is more affordable.
