Company Advantages
1. All materials of KAIDI are strictly tested in conformity with the international standards. This product is characterized by excellent temperature stability
2. This product is well-adjusted to personal measurements while providing enough ease and comfort. It doesn't bring extreme tightness or looseness which will bring down people's confidence. Since it is maintenance-free, this product significantly helps save operation costs
3. The product quality is reliable, the performance is stable, the service life is long. This product can be used in many different industries such as food & beverage, water, energy, pharmaceutical, etc
4. Reliable certification: the product has been submitted for certification. To date, several certificates have been obtained, which could be could be evidence for its excellent performance in the field. Its power ratings can be customized e based on requests
5. The products meet the quality standards of many countries and regions. This product is easy to install and use

●Principle

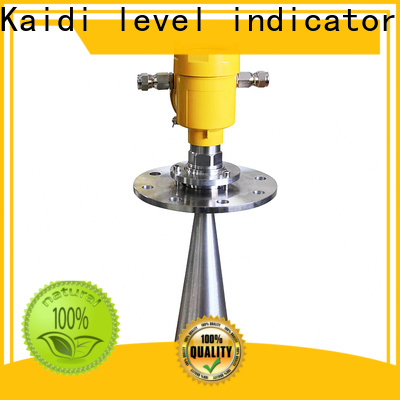

high-quality radar transmitter supply for work-1 The extremely narrow microwave pulse emitted by the antenna on radar level instrument can travel at the speed of light and part of its energy．which is reflected off the surface of target medium, is received by the very same antenna．The time lapse between pulse emission and reception by the antenna is proportional to the distance between the surface of target medium and the reference point on antenna．However。due to the fact that the electromagnetic wave is Transmitted at extremely high speed．which leads to the tiny time lapse (nanosecond level) and makes it difficult to be identified．GDRD5×series of radar level instrument have adopted a special demodulation technology．enabling itself to detect the time lapse between pulse emission and reception correctly, and eventually generate accurate measurement result．

●Features

The guided wave radar level instrument, adopted 26GHz as transmitting frequency, which make this series have specialties as below：Small beam angle, which centralize energy, make GDRD5X high ability of anti—jamming, hence high accuracy and reliable．Small antenna size, easy to mount and easy to equip extra dust protection Small blind zone, good accuracy even for small vessels．Shorter wave—length, suitable for small power．

Equipped with advanced microprocessor and unique Echo Discovery echo processing technology, the radar level instrument can be used under various hazardous process conditions.

The guided wave radar level instrument, with pulses as its working tool and extremely low emission power, can be mounted on various metal or nonmetal vessels, harmless towards the environment and human beings．

Model	KDZA55	KDZA56	KDZA88
Application	Liquid	Anti-temperature and anti-pressure, mildly erosive liquid	For solid and powder 5.6KGS DN100
Application	Adapt to highly erosive liquids	30m	50-70m
Range	10mm：30m(Horn 80mm)	+ 3mm	+ 3mm
Accuracy	+ 5mm	(-40 - 80) °C	(-40 - 80) °C
Process Temperature	(-40 - 130) °C	(-40 - 130) °C	(-40 - 130) °C
		(-60 - 250) °C	(-60 - 250) °C
		(-60 - 400) °C	(-60 - 400) °C
		Normal	Normal
Process Pressure	(-0.1 - 0.3)MPa	(-0.1 - 4)MPa	(-0.1 - 4)MPa
		(-0.1 - 40)MPa	(-0.1 - 40)MPa
		26GHZ	26GHZ
Frequency Range	26GHZ(4 - 20)mA／HART	(4 - 20)mA／HART	(4 - 20)mA／HART
Signal Output	Two-wire system (DC24V)	Two-wire system (DC24V)	Two-wire system (DC24V)
Power	4 wire system (DC24V/AC220V)	Four-wire system (DC24V/AC220V)	Four-wire system (DC24V/AC220V)
Power	Optional	Optional	Optional
Field Displaying	A／B／C／D (view page 4)	K/B/C/D1	K/B/C/D1
Process Connection	F	C／N／I／J／K2	C／N／I／J／K2
Flange Accessories	L	L／M／N／P3	L／M／N／P3
Antenna	R	S／T／V3	S／T／V3
Frequency Range	Liquid	Anti-temperature and anti- pressure, mildly erosive liquid	Anti-temperature and anti- pressure, mildly erosive liquid

Model	KDZA57	KDZA58	KDZA59
Application	liquid	solid	solid
Application	High corrosive, sanitary	Storage vessel, process vessel, Strong dust, easy to crystallize, condensation	Normal temperature, normal pressure
Max. Range	20m	70m	l 5m
Accuracy	+3mm	+1 5mm	+1 0mm
Temperature	(-40 - 150)°C	(-40 - 80)°C	(-40 - 80)°C
		(-40 - 1 20)°C	(-40 - 1 20)°C
		(-60 - 250)°C	(-60 - 250)°C
		(-60 - 400)°C
Process Pressure	(-0.1 - 0.5)MPa	normal pressure	normal pressure
		(-0.1 - 4)MPa	(-0.1 - 4)MPa
		(-0.1 - 40)MPa
Frequency Range	26GHZ	26GHZ	26GHZ
Signal Output：	(4 - 20)mA／HART	(4 - 20)mA／HART	(4 - 20)mA／HART
Power	2 Wires (DC24V)	2 Wires (DC24V)	2 Wires (DC24V)
Power	4 Wires (DC24V/AC220V)	4 Wires (DC24V/AC220V)	4 Wires (DC24V/AC220V)
Field Displaying	optional	optional	optional
Process Connection	A/B/C/D1	A/B/C/D1	A/B/C/D1(Page 4)
Flange Accessories		G/H/I/J/K3	G/H/I/J/K3
Antenna	U	L/M/N/P3	L/M/N/P3
Frequency Range		S/T/V/W3	S/T/V/W3

Company Features
1. For radar transmitter we have a complete and scientific quality management system.
2. Safety is our top priority. We aim to sustain the highest standards of product, process, and occupational safety throughout our whole business.

a******a

The company has always been adhering to the production concept of 'safety first, quality first', and standardized production in strict accordance with national standards. The radar transmitter produced is fine in workmanship, high in quality, beautiful and practical.

f******a

Guangdong Kaidi Energy Technology Co., Ltd. There are experienced technical and design talents, and there are many professional departments such as research and development, production, quality inspection, and service. One-to-one corresponding traceable records ensure that every product produced is of excellent quality and excellent quality.

u******t

We manufacture radar transmitter in strict accordance with relevant national standards, and set up a professional QC team to strictly monitor every production link, comprehensively control the quality of products, and promote the production of radar transmitter to meet the national quality inspection standards .

t******t

Guangdong Kaidi Energy Technology Co., Ltd. There are large-scale workshops, standardized production workshops, modern production lines, and skilled technology and craftsmanship. The radar transmitter produced is not only good in quality and excellent in quality, but also meets relevant international quality standards. The pass rate of products is high, and customers can rest assured Partner with us for purchasing.

b******n

Guangdong Kaidi Energy Technology Co., Ltd. has been operating in good faith for many years, and has accumulated rich industry experience in product development and manufacturing. The radar transmitter produced can meet the national CCC certification standards in terms of quality and performance.

s******u

The product is bacteria and fungi resistant. During the cleaning stage, it has gone through antibacterial and sterilization treatment, and the surface is finely polished to a very smooth level, which can effectively kill the bacteria. Its weight-lifting capacity depends on the client’s needs
